Front Wheel Alignment Check And Adjustment: Toe-In
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
Standard value: 0 +/- 3 mm (0 +/- 0.12 inch)

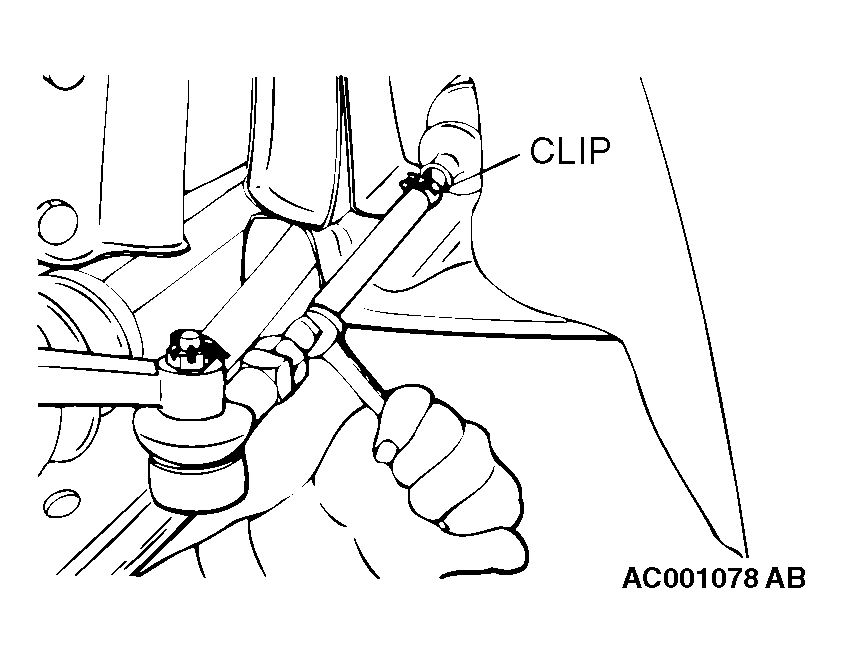

- Adjust the toe-in by undoing the clip and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).NOTE: The toe will move out as the left turnbuckle is turned toward the front of the vehicle and the right turnbuckle is turned toward the rear of the vehicle.
- Use a turning radius gauge to check that the steering angle is at the standard value.
