Removal And Installation: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.

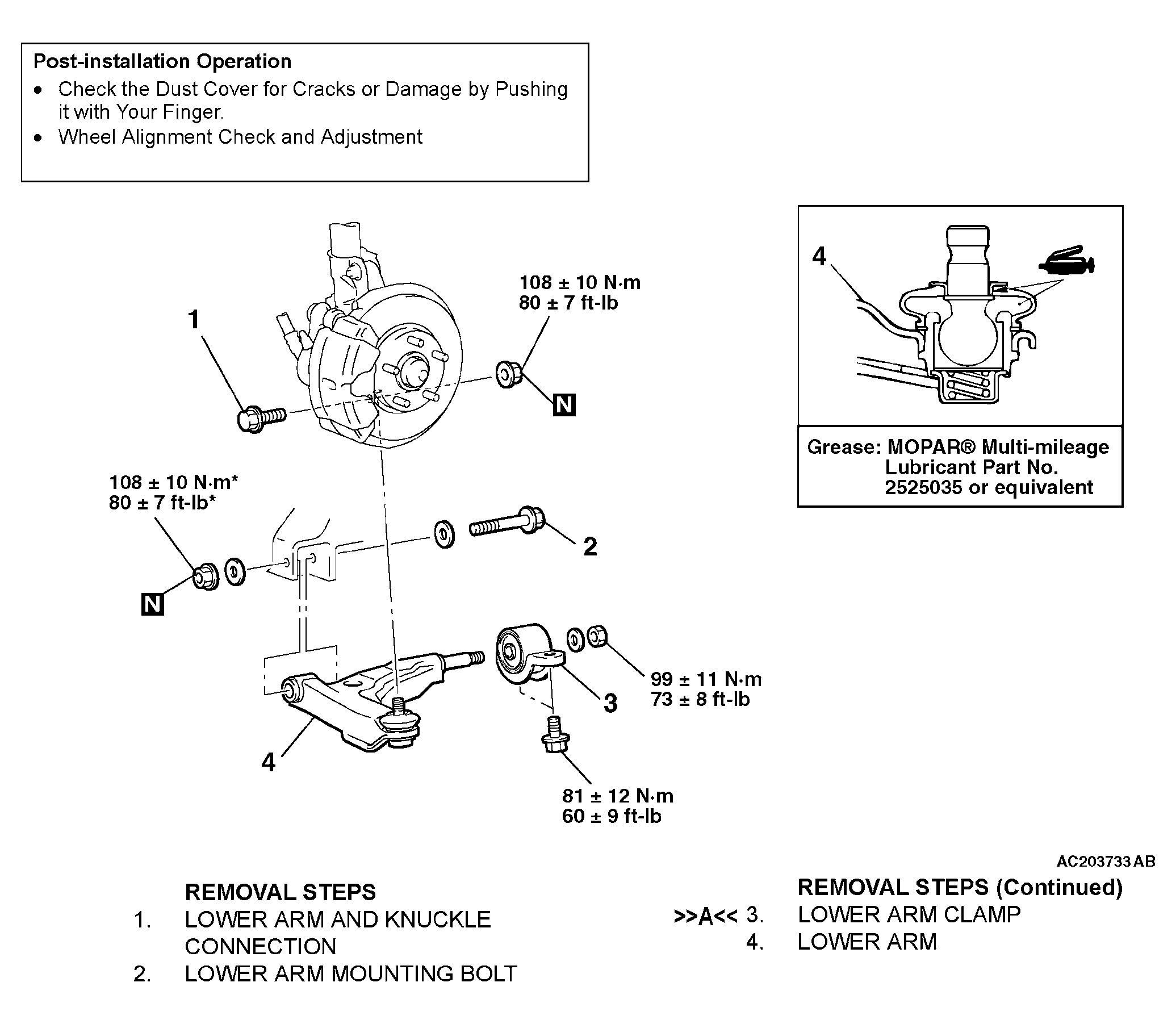

Fig 1: Removing/Installing Lower Arm

Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:

MB990799: Ball Joint Remover and Installer
MB991006: Preload Socket
MB991007: Bearing Installer
MB991446: Bushing Remover and Installer Spacer
