Inspection Procedure 3: When the Reverse Gear is Engaged, the Inside Rear View Mirror Can not be Set to Day Mode.: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

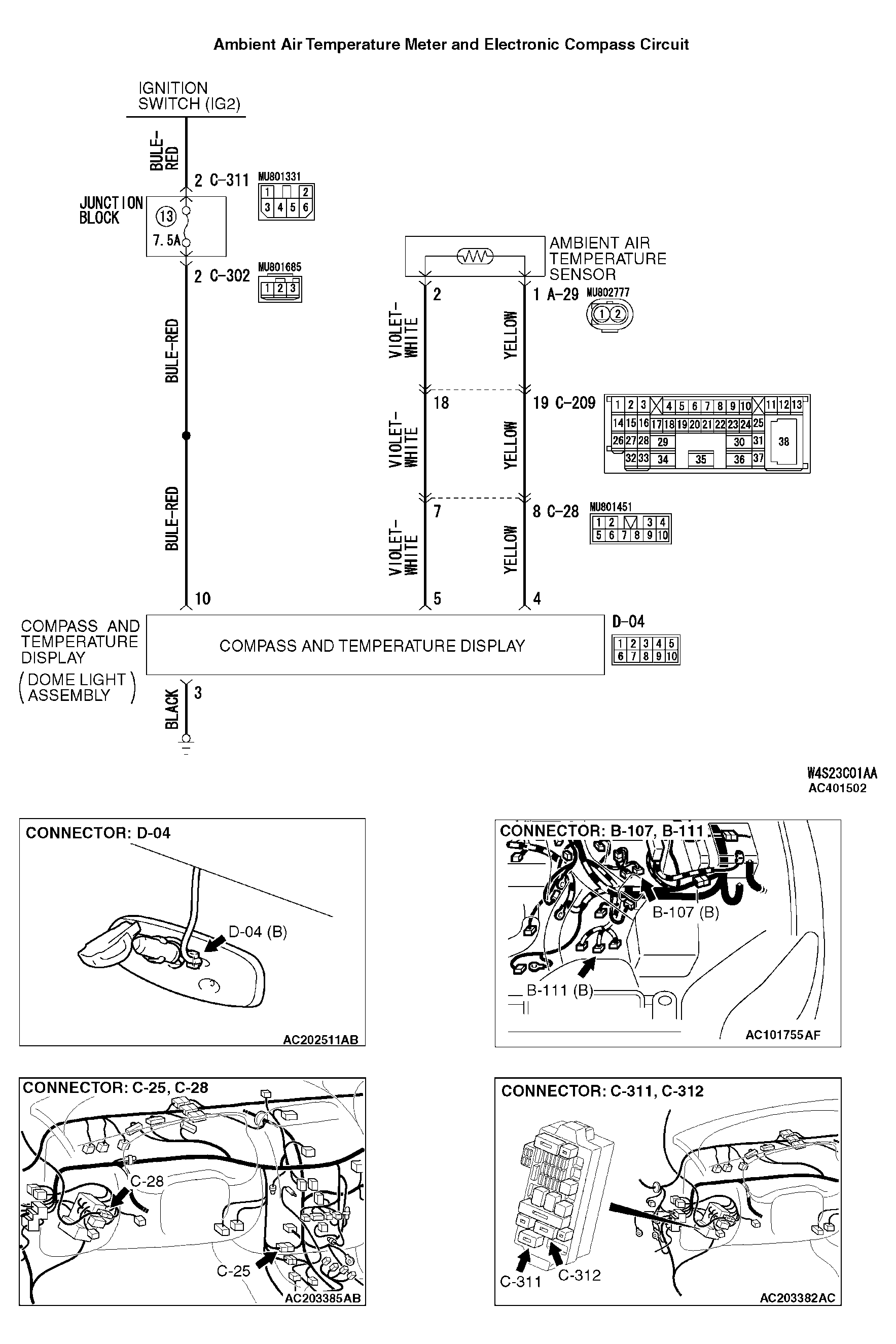

Fig 1: Identifying Ambient Air Temperature Meter And Electronic Compass Circuit
G04538640Courtesy of DAIMLERCHRYSLER CORPORATION
