Removal And Installation: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

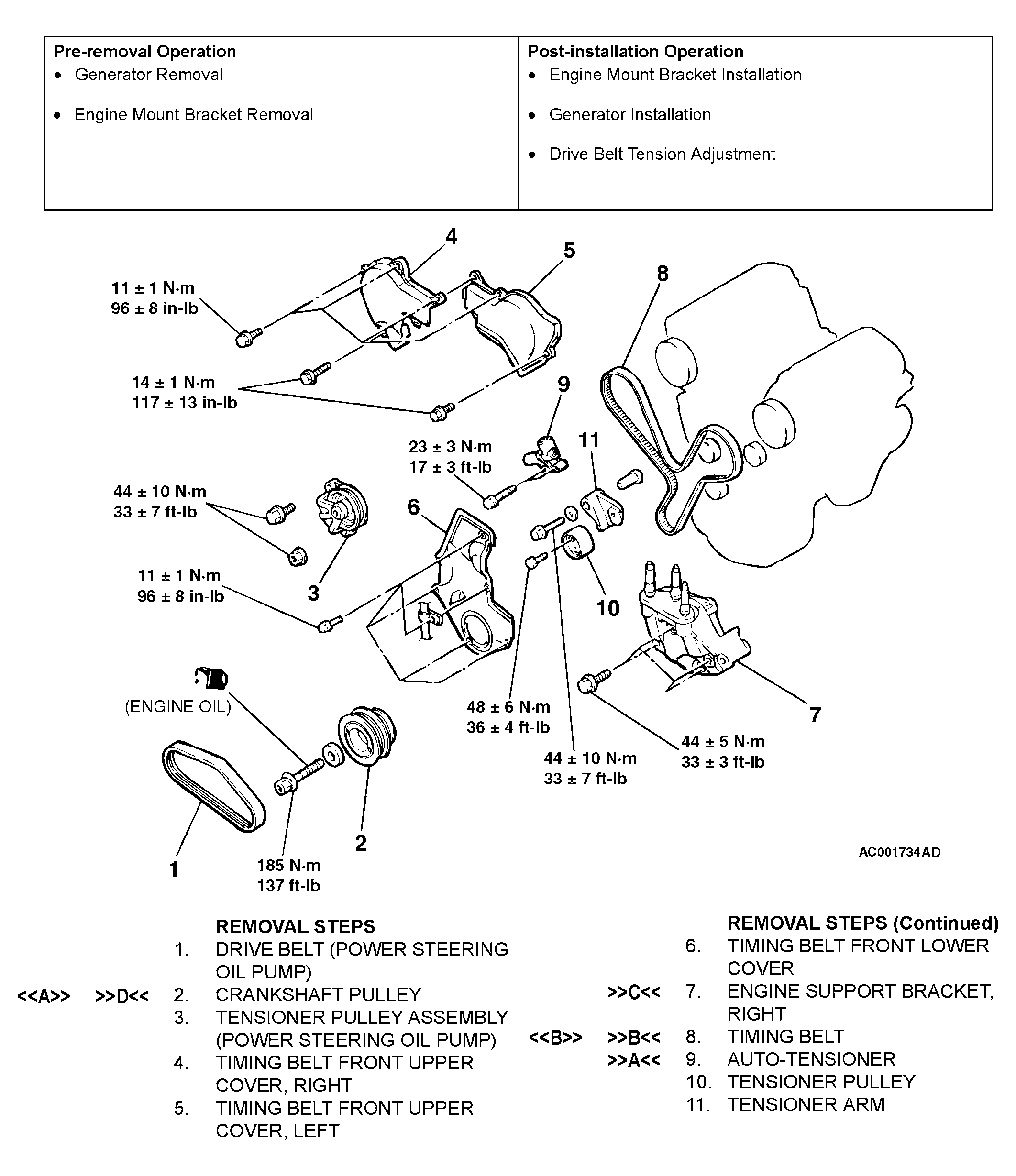

Fig 1: Removing/Installing Timing Belt

Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:

MB990767: End Yoke Holder
MD998715: Crankshaft Pulley Holder Pin
MD998767: Tensioner Pulley Socket Wrench
MD998769: Crankshaft Sprocket Spacer
