<< B >> Upper Oil Pan Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper oil pan mounting bolts.
  2. Screw the bolts (M10) securing the upper oil pan to the transaxle assembly in the illustrated bolt holes, then remove the upper oil pan.

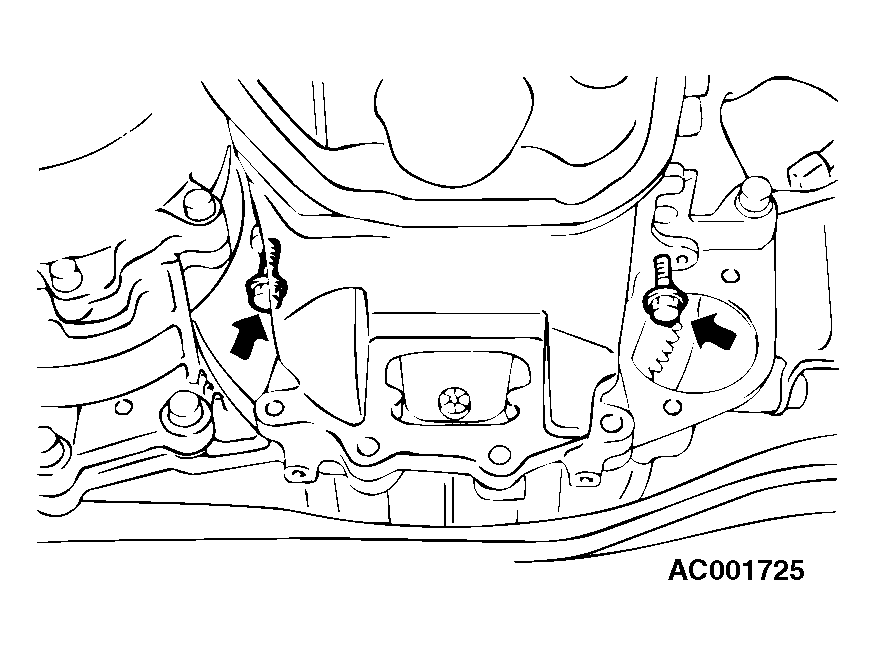

    Fig 1: Removing Upper Oil Pan Mounting Bolts
    G04538374Courtesy of DAIMLERCHRYSLER CORPORATION
