<< A >> Lower Oil Pan Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan, lower mounting bolts.
    CAUTION: Do not use the oil pan remover (MD998727). It will damage the upper oil pan.
  2. Place a wooden block against the lower oil pan as shown in the illustration and remove by tapping with a hammer.

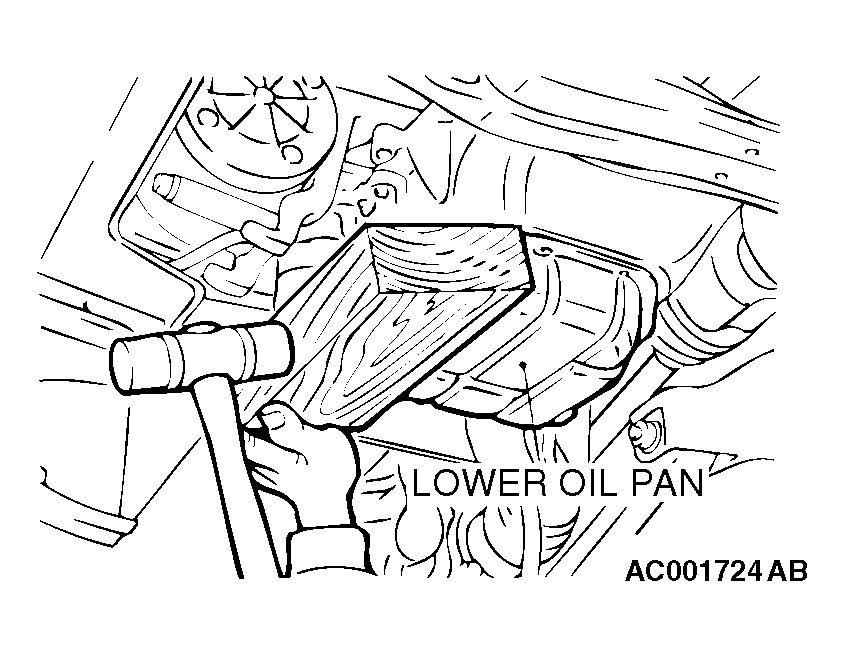

    Fig 1: Placing Wooden Block Against Lower Oil Pan
    G04538373Courtesy of DAIMLERCHRYSLER CORPORATION
