Removal And Installation: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

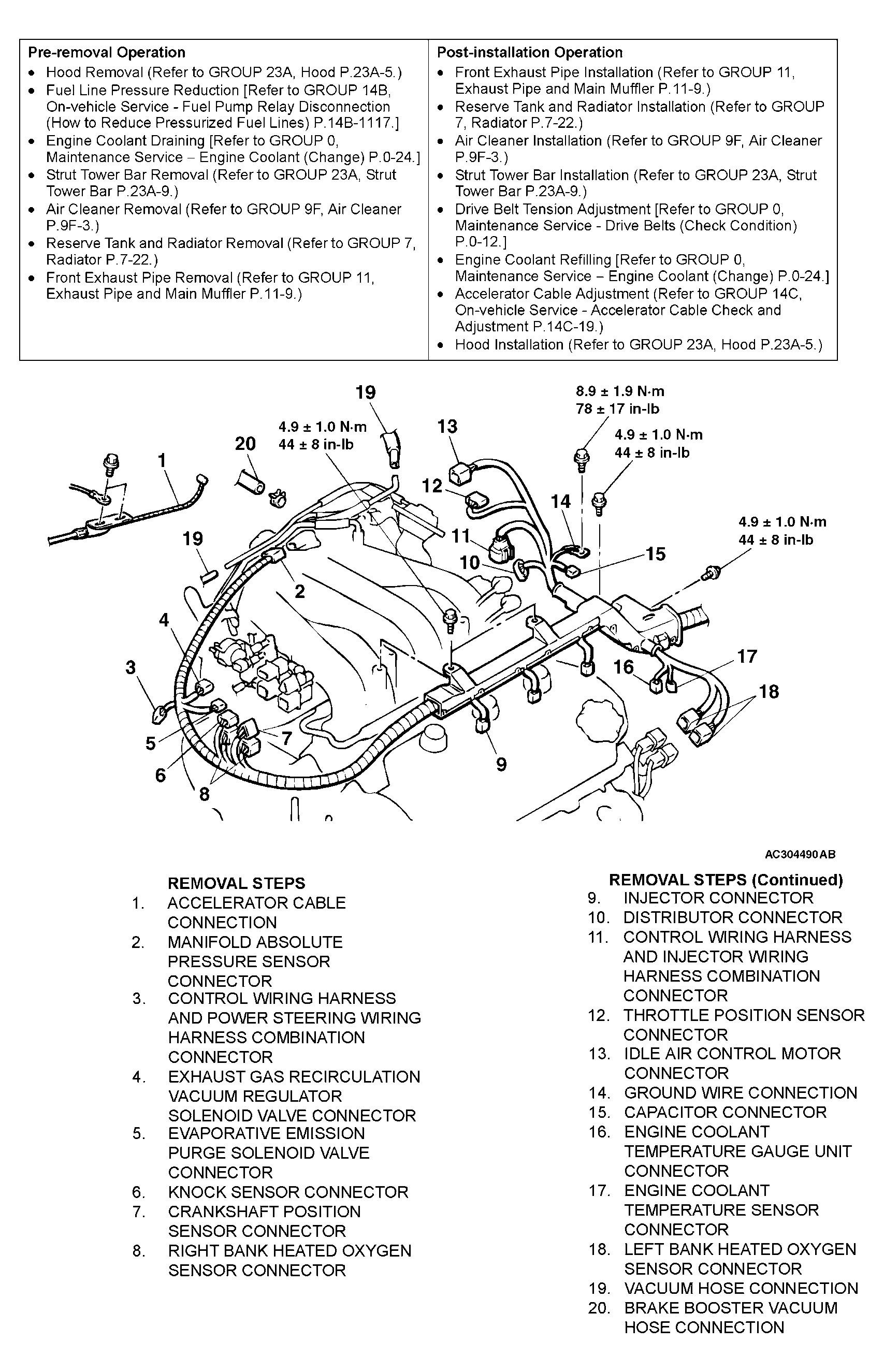

Fig 1: Removing/Installing Engine Assembly (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

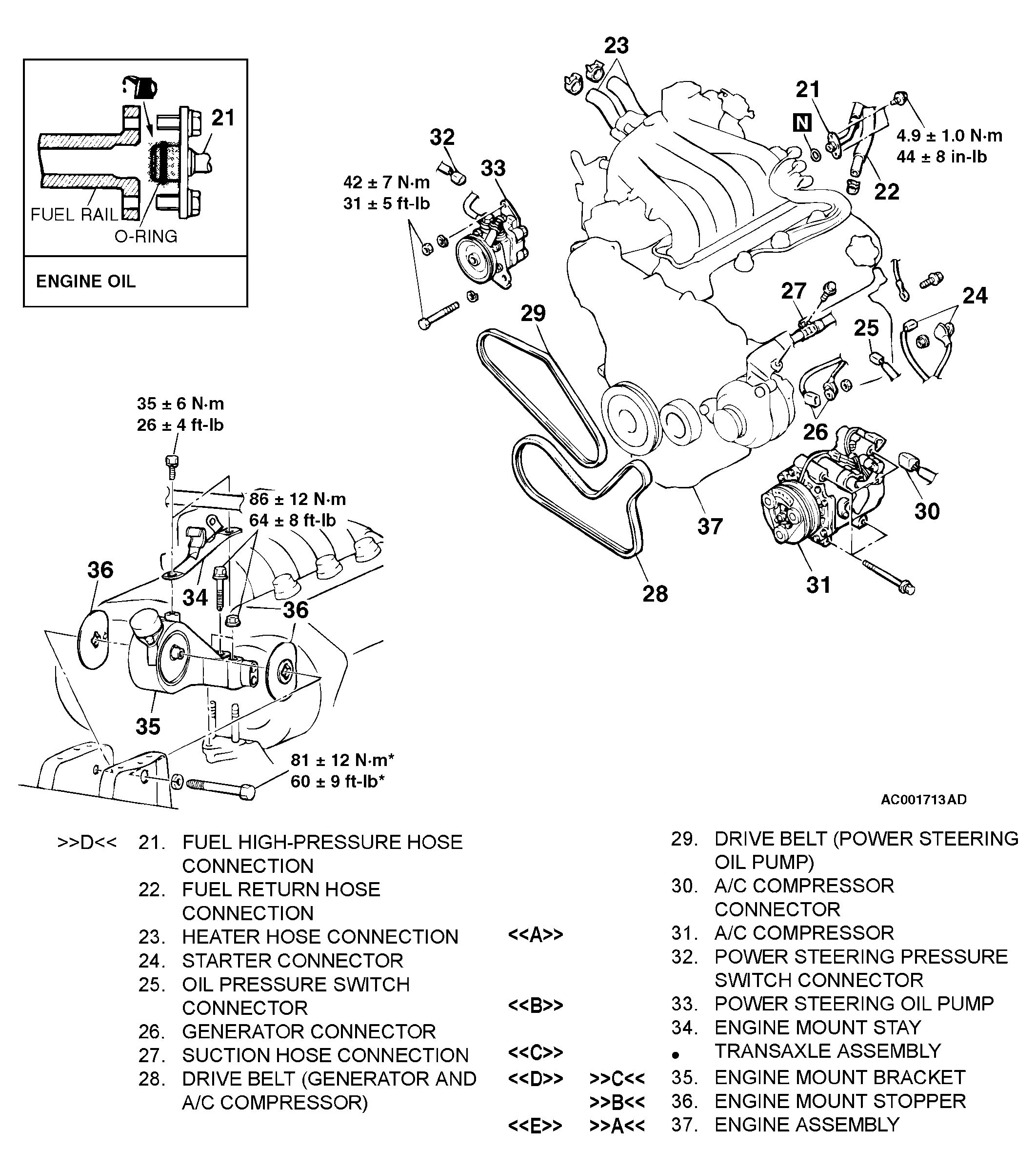

Fig 2: Removing/Installing Engine Assembly (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:

MB991453: Engine Hanger Attachment set
MZ203827: Engine Lifter
MB991454: Engine Hanger Balancer (MB991453, part of the engine hanger attachment set)
MB991895: Engine Hanger
MB991928: Engine Hanger
