>> C << Engine Mount Bracket Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Place a garage jack against the engine oil pan with a piece of wood in between, and install the engine mount bracket while adjusting the position of the engine.
Support the engine with the garage jack.
< Engine lifter MZ203827 is used >
Remove the chain block and support the engine assembly with special tools MB991453 and MZ203827.

Fig 1: Removing Engine Mount Bracket
Courtesy of DAIMLERCHRYSLER CORPORATION

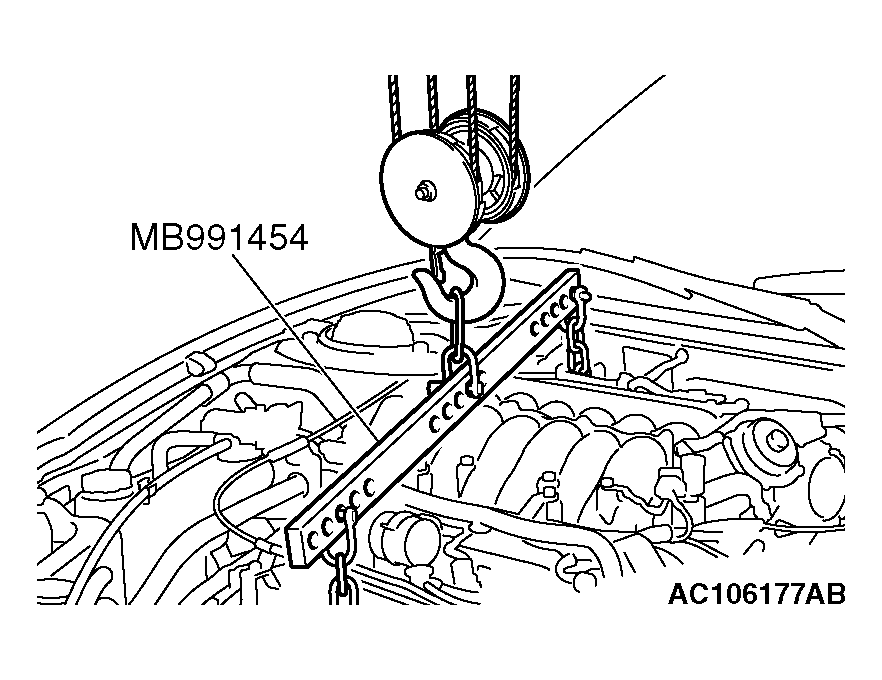

Fig 2: Removing Chain Block
Courtesy of DAIMLERCHRYSLER CORPORATION
< Engine hanger MB991895 is used >
Remove the chain block and support the engine assembly with special tools MB991895.

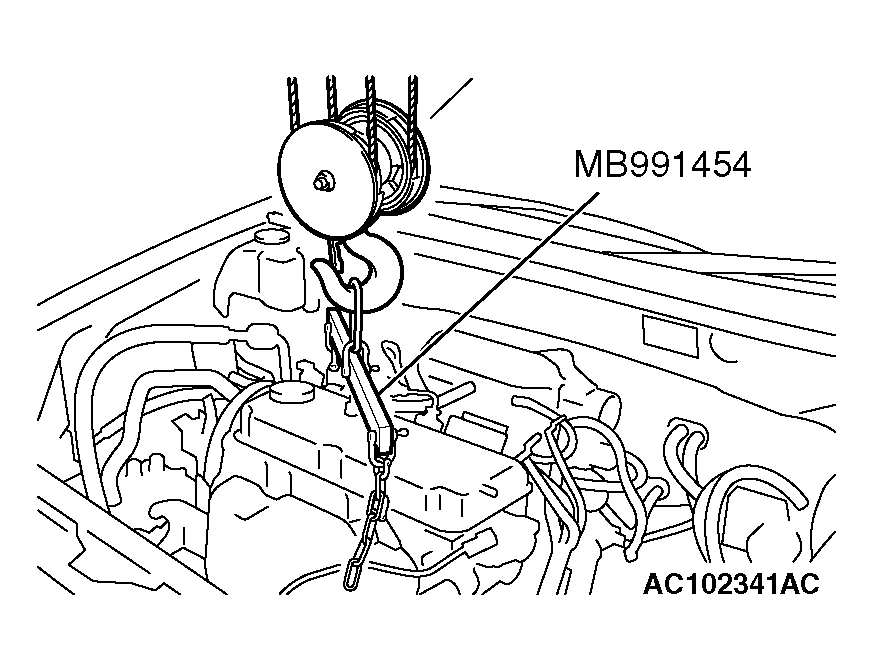

Fig 3: Removing Chain Block
Courtesy of DAIMLERCHRYSLER CORPORATION

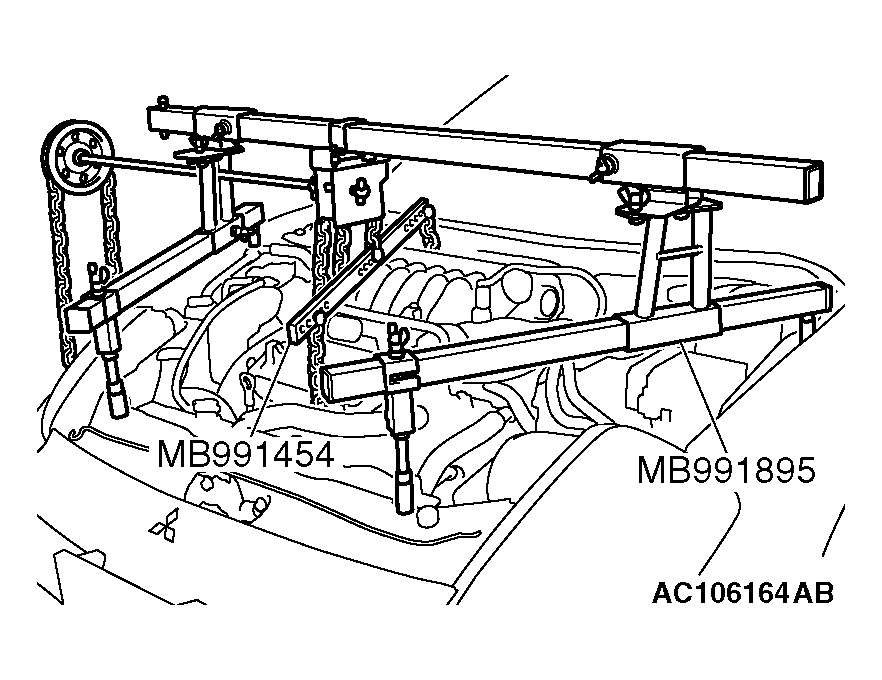

Fig 4: Supporting Engine Assembly With Special Tools MB991895
Courtesy of DAIMLERCHRYSLER CORPORATION
< Engine hanger MB991928 is used >
1. Assemble the engine hanger (special tool MB991928).Set following parts the base hanger.
  - Slide bracket (HI)
  - Foot (standard) (MB991932)
  - Foot (short) (MB991933)
  - Joint (50) (MB991929)
  - Joint (90) (MB991930)
  - Joint (140) (MB991931)

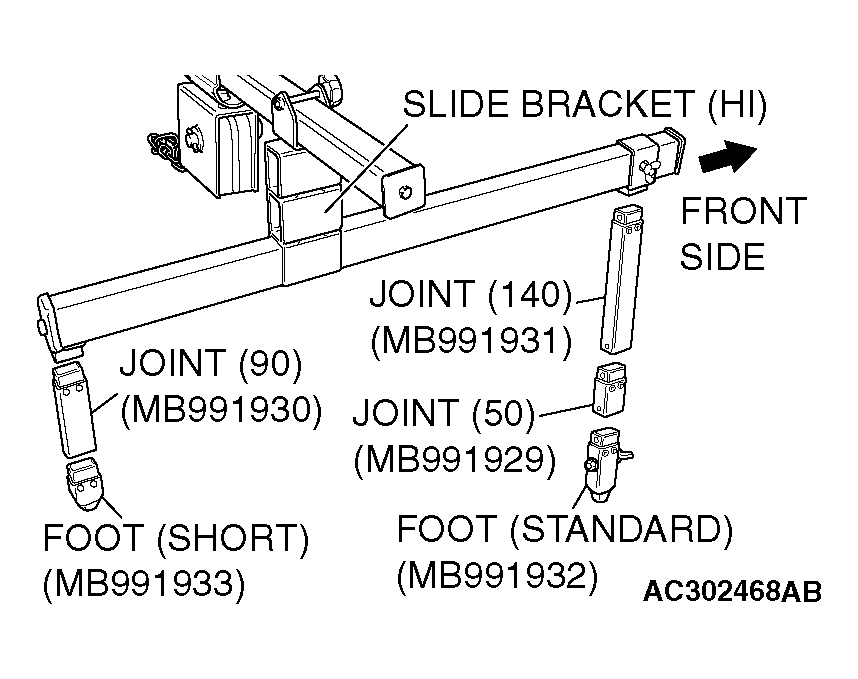

    Fig 5: Identifying Engine Hanger MB991928
    Courtesy of DAIMLERCHRYSLER CORPORATION
2. Remove the chain block and support the engine assembly with special tools MB991895.

  Fig 6: Removing Chain Block
  Courtesy of DAIMLERCHRYSLER CORPORATION

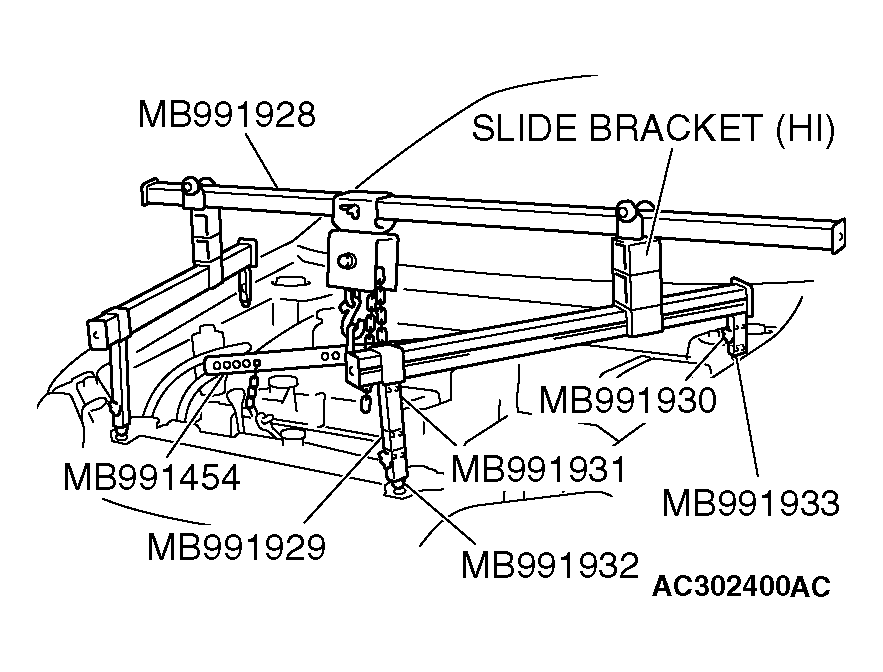

  Fig 7: Support Engine Assembly With Special Tools MB991895
  Courtesy of DAIMLERCHRYSLER CORPORATION
