Removal And Installation: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

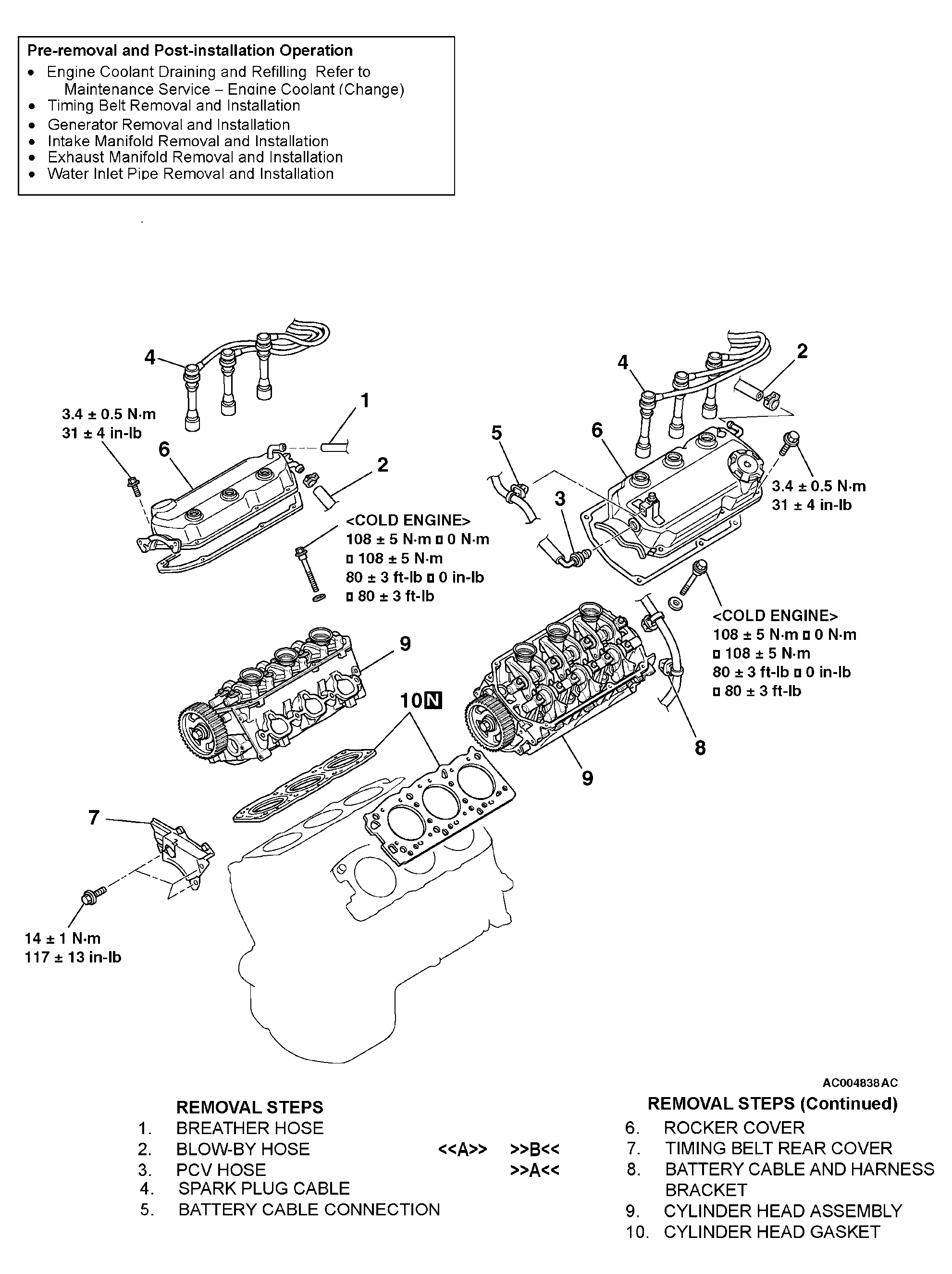

Fig 1: Removing/Installing Cylinder Head Gasket
G04538386Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tool:
