>> A << Crankshaft Rear Oil Seal Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a small amount of engine oil to the entire circumference of the oil seal lip.
  2. Use special tool MD998718 to tap in the oil seal as shown in the illustration.

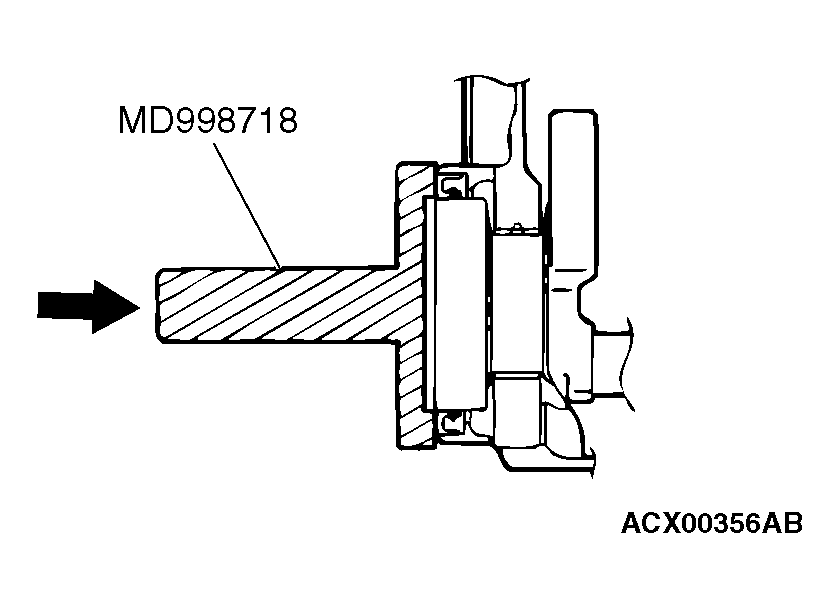

    Fig 1: Tapping Oil Seal Using Special Toll MD998718
    G04538384Courtesy of DAIMLERCHRYSLER CORPORATION
