<< B >> Camshaft Sprocket Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use special tools MB990767 and MD998715 to loosen the camshaft sprocket mounting bolt.
  2. Remove the camshaft sprocket.

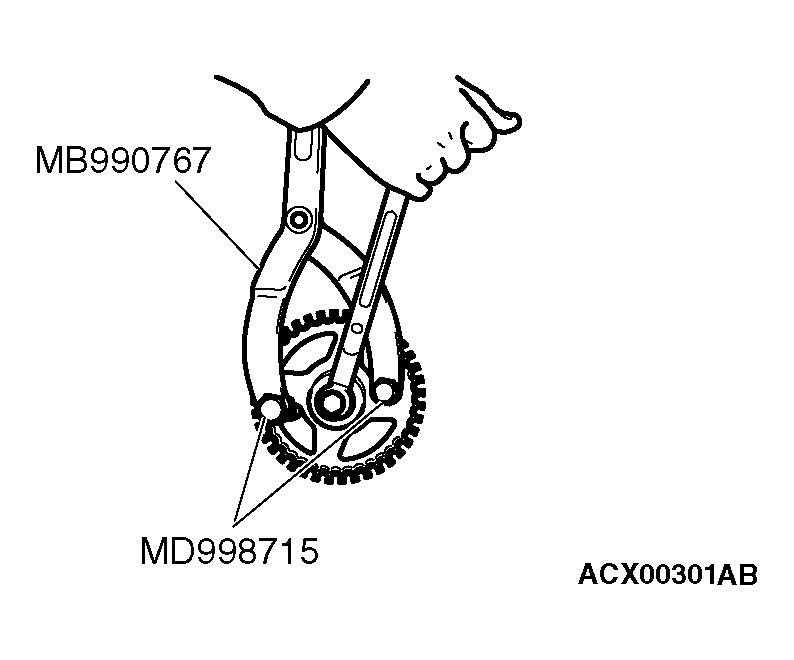

    Fig 1: Loosening Camshaft Sprocket Mounting Bolt
    G04538365Courtesy of DAIMLERCHRYSLER CORPORATION
