<< A >> Rocker Arm And Shaft Assembly Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install special tool MD998443 as shown in the illustration so that the lash adjusters will not fall out.
    CAUTION: Never disassemble the rocker arm and shaft assembly.
  2. Loosen the rocker arm and shaft assembly mounting bolts, then remove the rocker arm and shaft assembly with the bolts still attached.

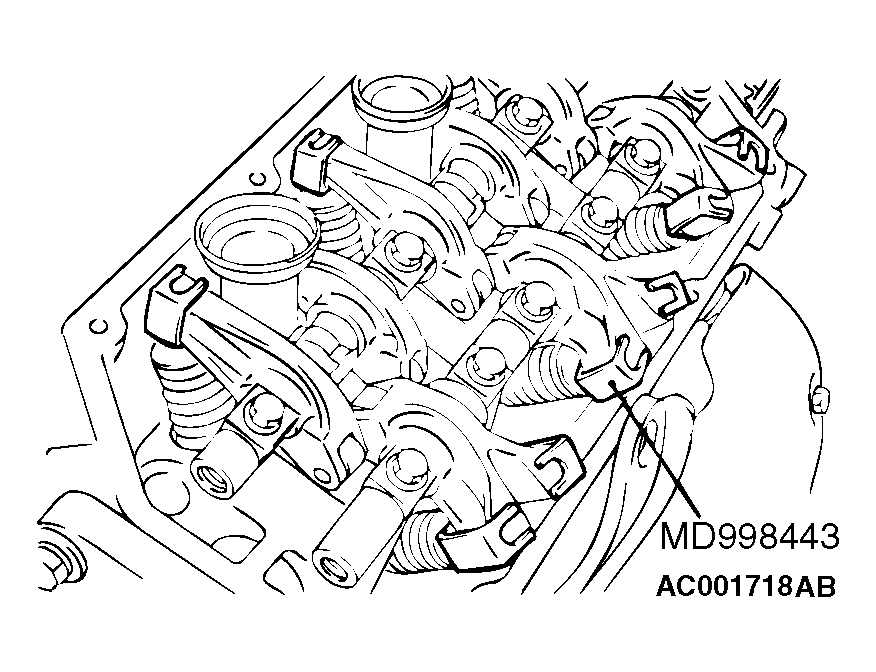

    Fig 1: Installing Special Tool MD998443
    G04538364Courtesy of DAIMLERCHRYSLER CORPORATION
