Removal And Installation: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

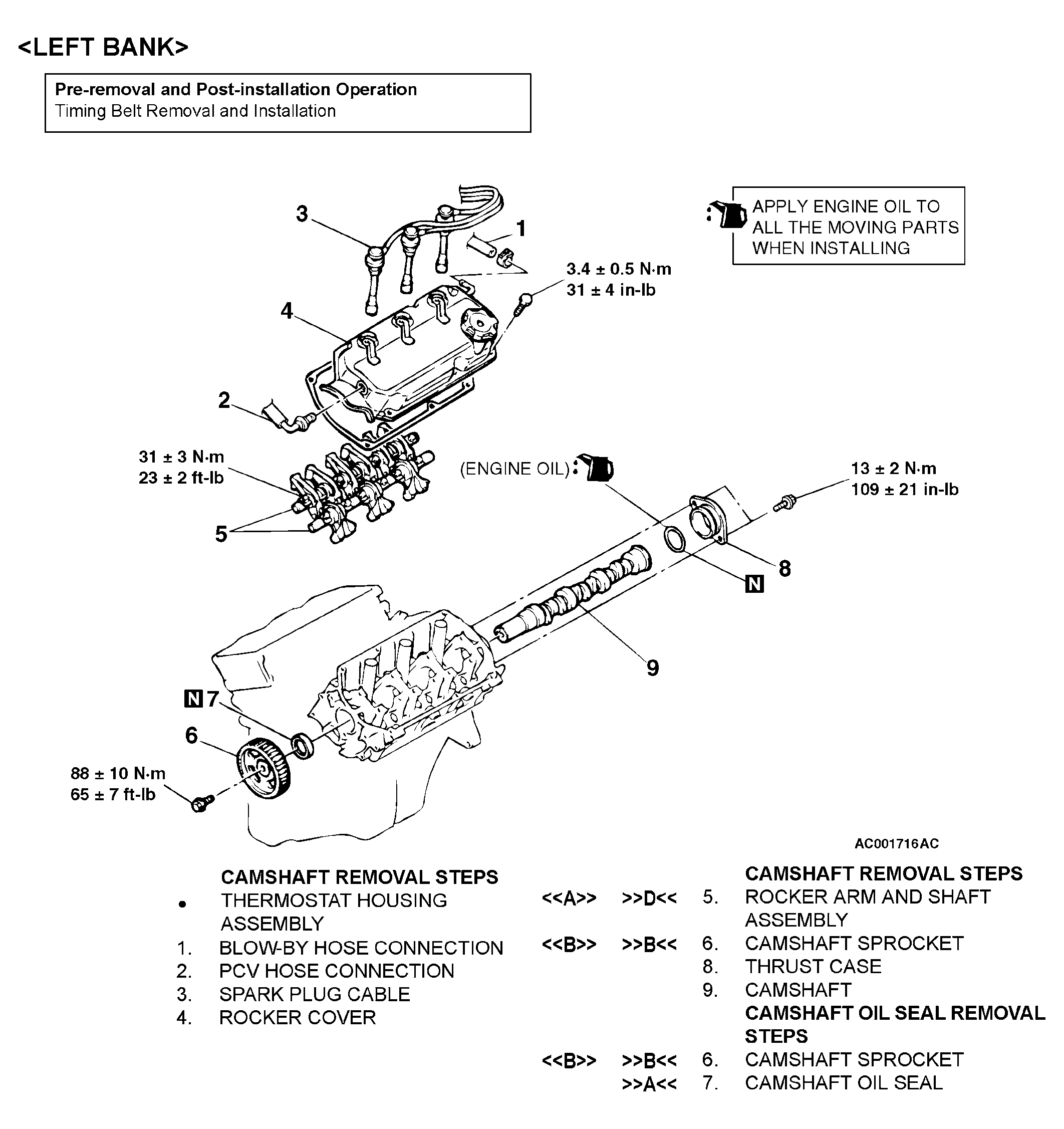

Fig 1: Removing/Installing Camshaft And Camshaft Oil Seal (Left Bank)

Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:

MB990767: End Yoke Holder
MB991559: Camshaft Oil Seal Installer Adapter
MD998443: Lash Adjuster Holder (8)
MD998713: Camshaft Oil Seal Installer
MD998715: Crankshaft Pulley Holder Pin

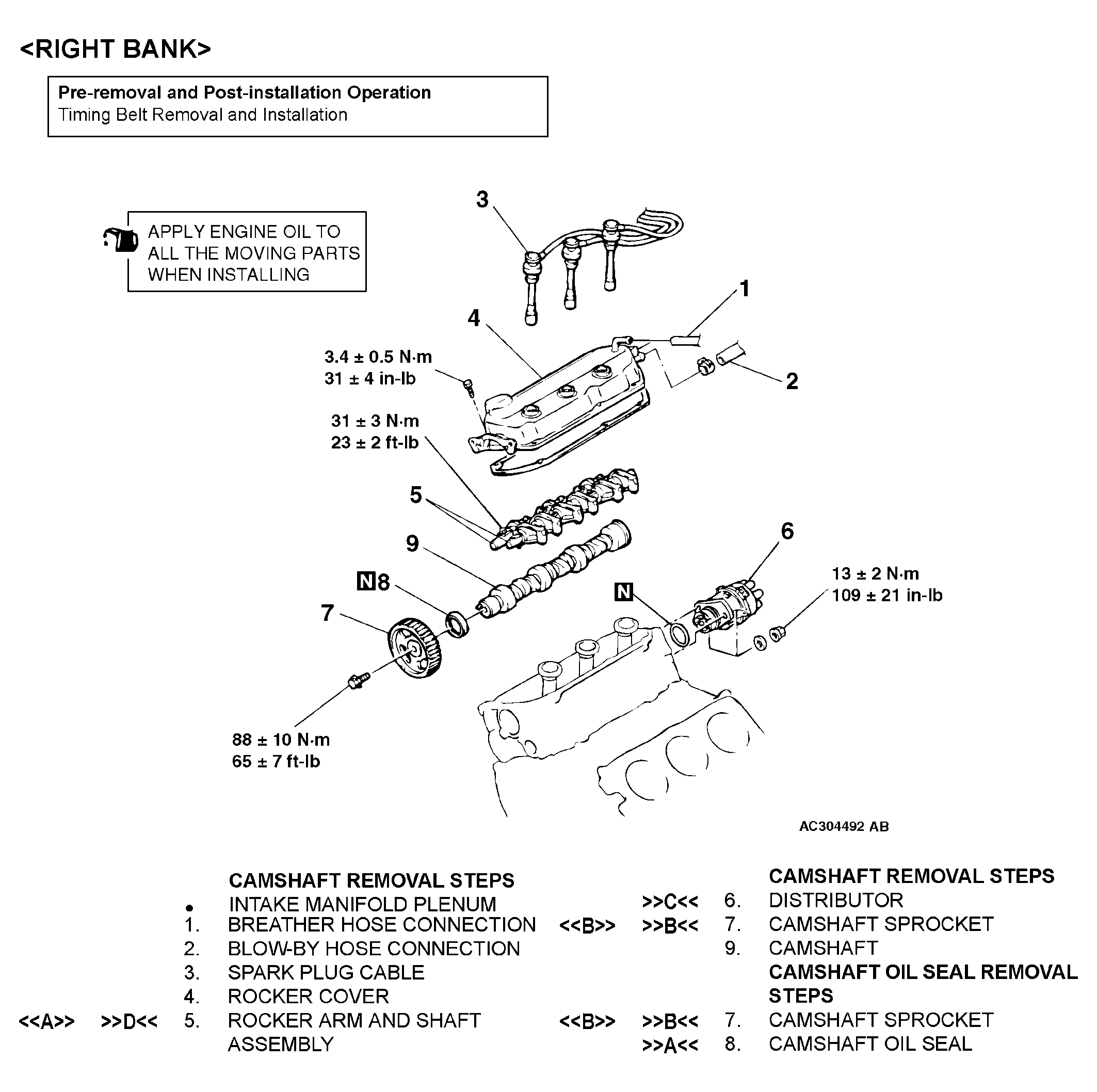

Fig 2: Removing/Installing Camshaft And Camshaft Oil Seal (Right Bank)

Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:

MB990767: End Yoke Holder
MD998443: Lash Adjuster Holder (8)
MD998713: Camshaft Oil Seal Installer
MD998715: Crankshaft Pulley Holder Pin
