>> D << Rocker Arm And Shaft Assembly Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the camshaft until the dowel pin on its front end is located as shown in the illustration.
    NOTE: Placing the camshaft in the illustrated position minimizes the amount of cam lift, making it easier to install the rocker arm and shaft assembly.
  2. Temporarily tighten the rocker shaft with the bolts so that all rocker arms on the inlet valve side do not push the valves.
    Fig 1: Rotating Camshaft
    G04538370Courtesy of DAIMLERCHRYSLER CORPORATION
  3. Position the rocker shaft spring so that it takes a right angle against the plug guide.
    NOTE: Set the rocker shaft spring before installing the rocker arm and shaft assembly on the exhaust side.
  4. Tighten the rocker arm and shaft assembly mounting bolts to the specified torque.

    Tightening torque: 31 +/- 3 N.m (23 +/- 2 ft-lb)

  5. Remove special tool MD998443.

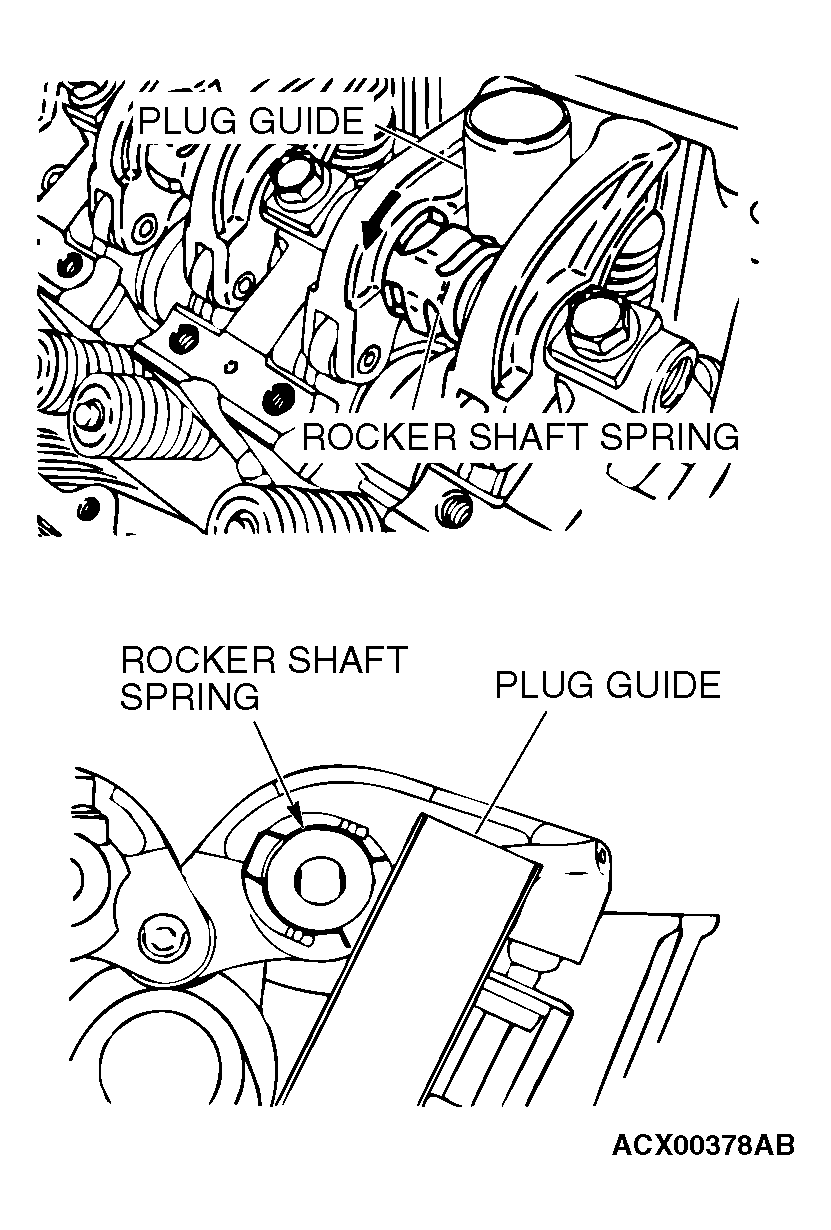

    Fig 2: Positioning Rocker Shaft Spring
    G04538371Courtesy of DAIMLERCHRYSLER CORPORATION
