>> C << Distributor Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the timing mark of the camshaft sprocket (right bank) with that of the cylinder head.

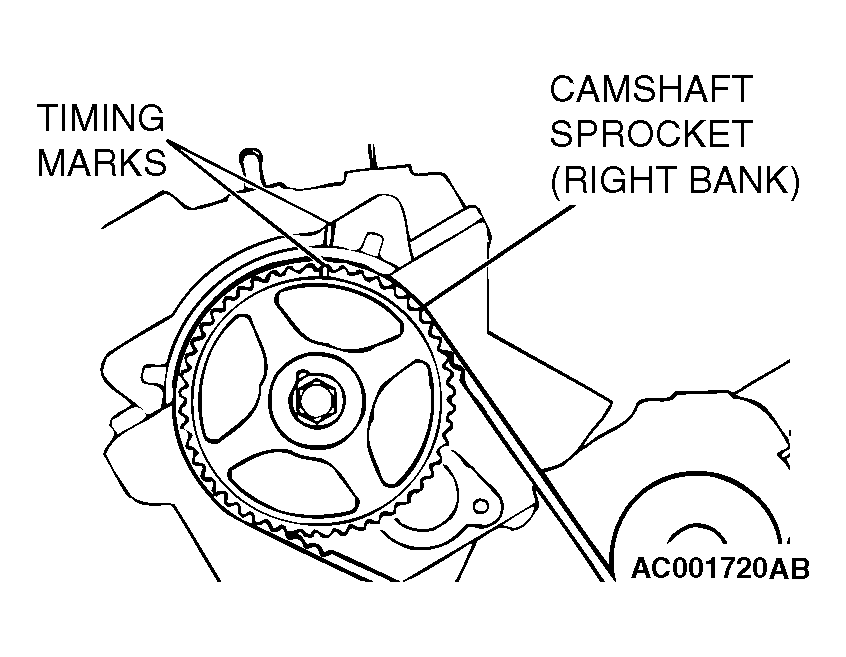

    Fig 1: Aligning Timing Mark Of Camshaft Sprocket (Right Bank)
    G04538368Courtesy of DAIMLERCHRYSLER CORPORATION
  2. Align the mating marks on the distributor housing and coupling, then install the distributor to the engine.
    Fig 2: Aligning Mating Marks On Distributor Housing And Coupling
    G04538369Courtesy of DAIMLERCHRYSLER CORPORATION
