>> B << Camshaft Sprocket Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the camshaft sprocket.
  2. Use special tools MB990767 and MD998715 to tighten the camshaft sprocket mounting bolt to the specified torque.

    Tightening torque: 88 +/- 10 N.m (65 +/- 7 ft-lb)

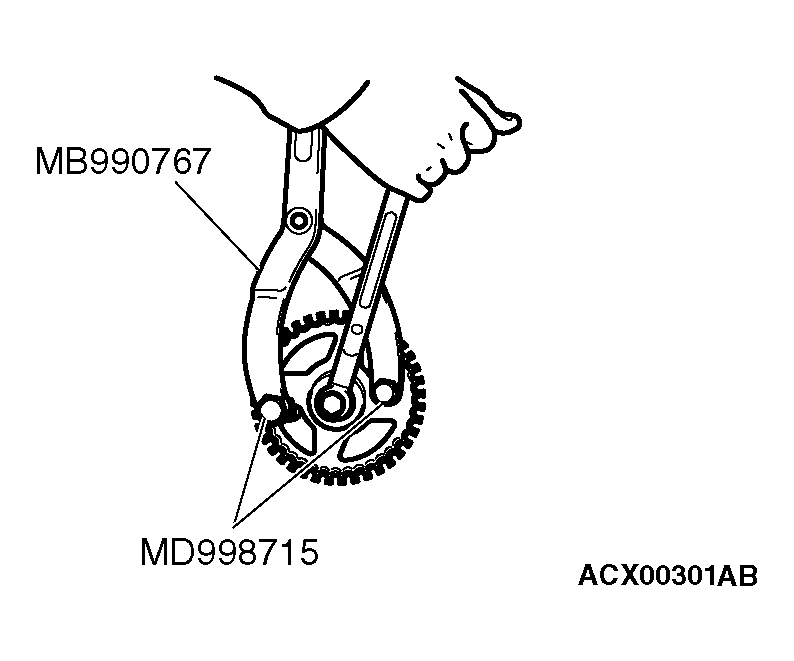

    Fig 1: Tightening Camshaft Sprocket Mounting Bolt To Specified Torque
    G04538367Courtesy of DAIMLERCHRYSLER CORPORATION
