<< A >> Timing Belt Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The crankshaft should always be turned in the forward direction only.
  1. Turn the crankshaft in the forward direction (to the right) to align the camshaft sprocket timing marks.
    Fig 1: Identifying Camshaft Sprocket And Timing Marks
    G04538172Courtesy of DAIMLERCHRYSLER CORPORATION
  2. Loosen the tension pulley fixing bolt.
    CAUTION: If the timing belt is to be re-used, use chalk to mark (on its flat side) an arrow indicating the clockwise direction.
  3. Move the tension pulley to the water pump side, and then remove the timing belt.

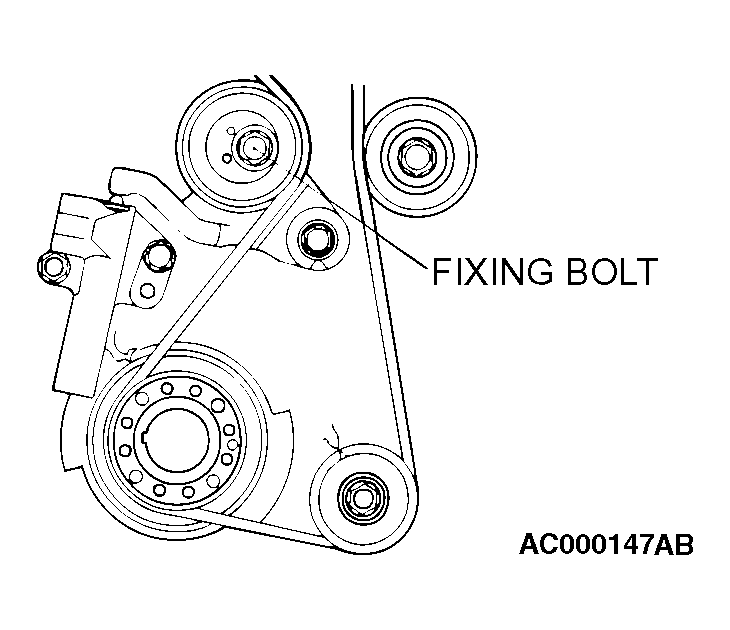

    Fig 2: Identifying Fixing Bolt
    G04538173Courtesy of DAIMLERCHRYSLER CORPORATION
