>> C << Timing Belt B Tension Adjustment

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Temporarily fix the timing belt B tensioner so the center of the tensioner pulley is to the left and above the center of the mounting bolt. Temporarily attach the tensioner pulley so the flange is toward the front of the engine.
    Fig 1: Adjusting Timing Belt B Tension
    G04538188Courtesy of DAIMLERCHRYSLER CORPORATION
    CAUTION: When tightening the bolt, ensure that the tensioner pulley shaft does not rotate with the bolt. Allowing it to rotate with the bolt can cause excessive tension of the bolt.
  2. Holding the timing belt B tensioner up with your finger in the direction of the arrow, apply pressure on the timing belt so the tension side of the belt is taut. Now tighten the bolt to fix the tensioner.

    Tightening torque: 19 +/- 3 N.m (14 +/- 2 ft-lb)

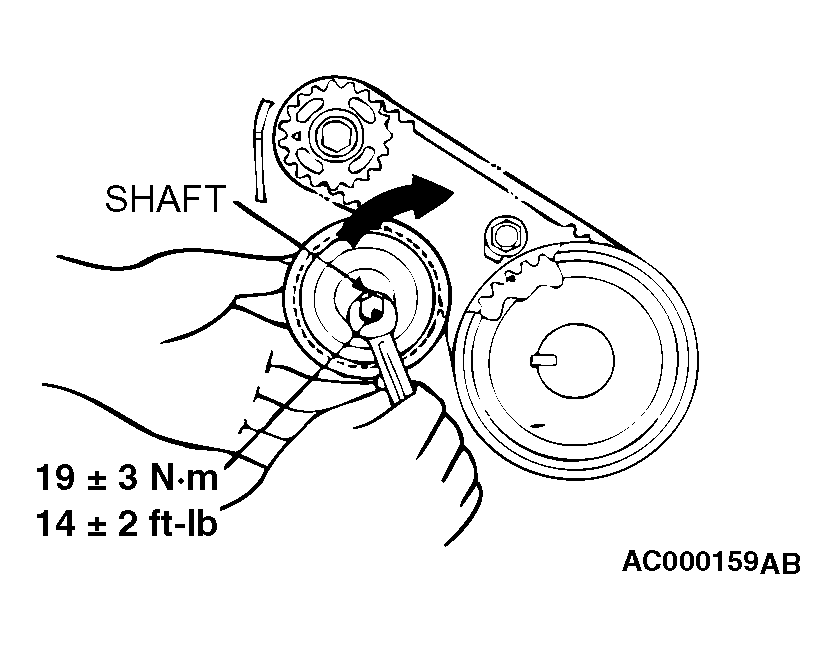

    Fig 2: Tightening Timing Belt B Tensioner With Specified Torque
    G04538189Courtesy of DAIMLERCHRYSLER CORPORATION
  3. To ensure that the tension is correct, depress the belt (point A) with a finger. Adjust the belt tension if it is incorrect.

    Standard value: 5 - 7 mm (0.2 - 0.3 inch)

    Fig 3: Adjusting Belt Tension
    G04538190Courtesy of DAIMLERCHRYSLER CORPORATION
