>> B << Crankshaft Sensing Blade/Crankshaft Sprocket Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. To prevent the crankshaft bolt from loosening, degrease or clean the seating surfaces of the crankshaft, crankshaft sprocket B, crankshaft sensing blade and crankshaft at the shown positions.
  2. Install the crankshaft sensing blade so that they face as shown in the illustration.
  3. Apply the minimum amount of engine oil to the seat surface and thread of the crankshaft bolt.

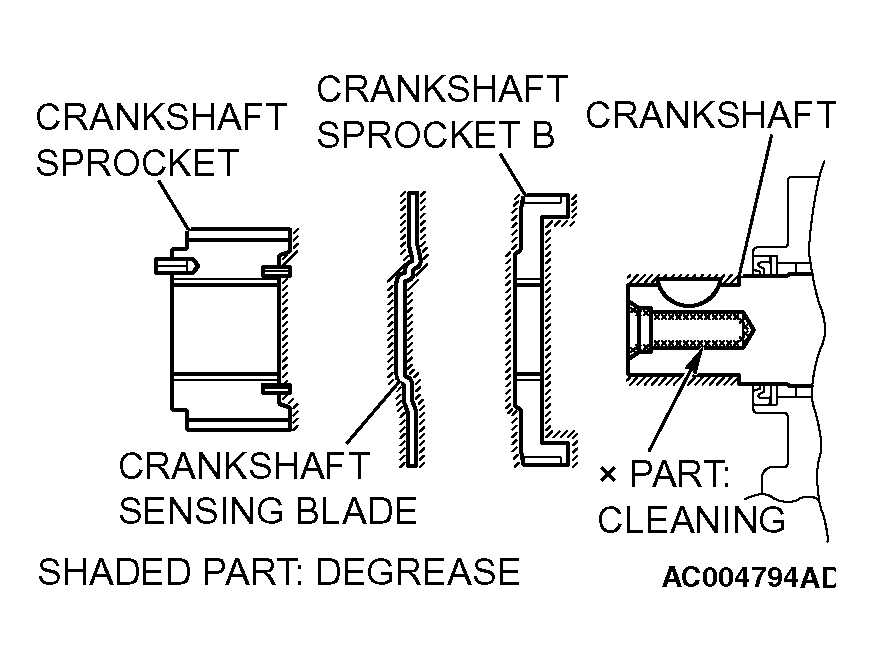

    Fig 1: Installing Crankshaft Sensing Blade/Crankshaft Sprocket
    G04538186Courtesy of DAIMLERCHRYSLER CORPORATION
  4. Use the crankshaft pulley mounting bolt to secure special tool MB991367.
  5. Tighten the crankshaft sprocket bolt to the specified torque.

    Tightening torque: 118 +/- 9 N.m (87 +/- 7 ft-lb)

    Fig 2: Installing Crankshaft Sprocket Bolt Using Special Tools
    G04538187Courtesy of DAIMLERCHRYSLER CORPORATION
