>> A << Timing Belt B Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that crankshaft sprocket B timing marks and the counterbalance shaft sprocket timing marks are aligned.
  2. Fit timing belt B over crankshaft sprocket B and the counterbalance shaft sprocket. Ensure that there is no slack in the belt.

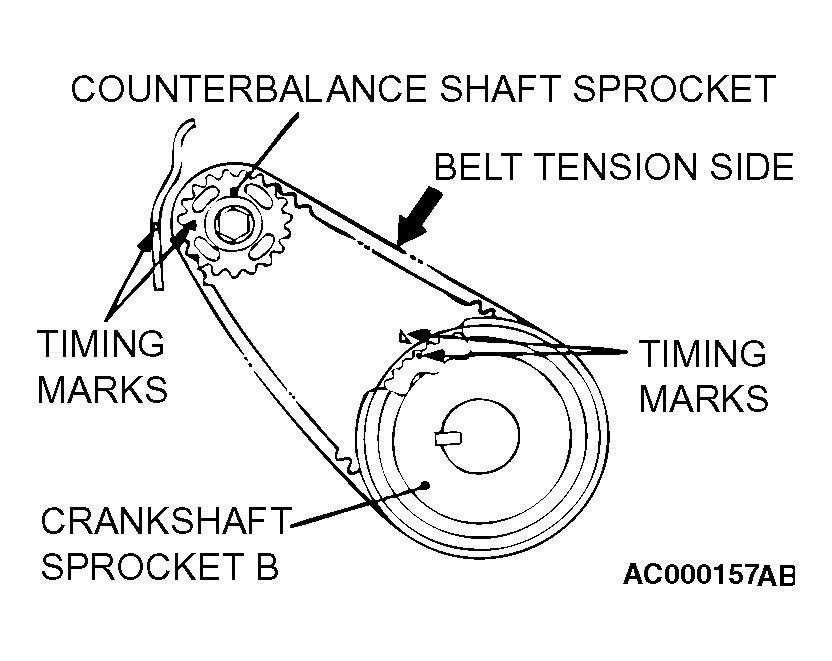

    Fig 1: Installing Timing Belt B Over Crankshaft Sprocket B And Counterbalance Shaft Sprocket
    G04538185Courtesy of DAIMLERCHRYSLER CORPORATION
