>> A << Crankshaft Rear Oil Seal Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a small amount of engine oil to the entire inside diameter of the oil seal lip.
  2. Use special tools MB990938 and MD998776 to tap in the oil seal as shown in the illustration.

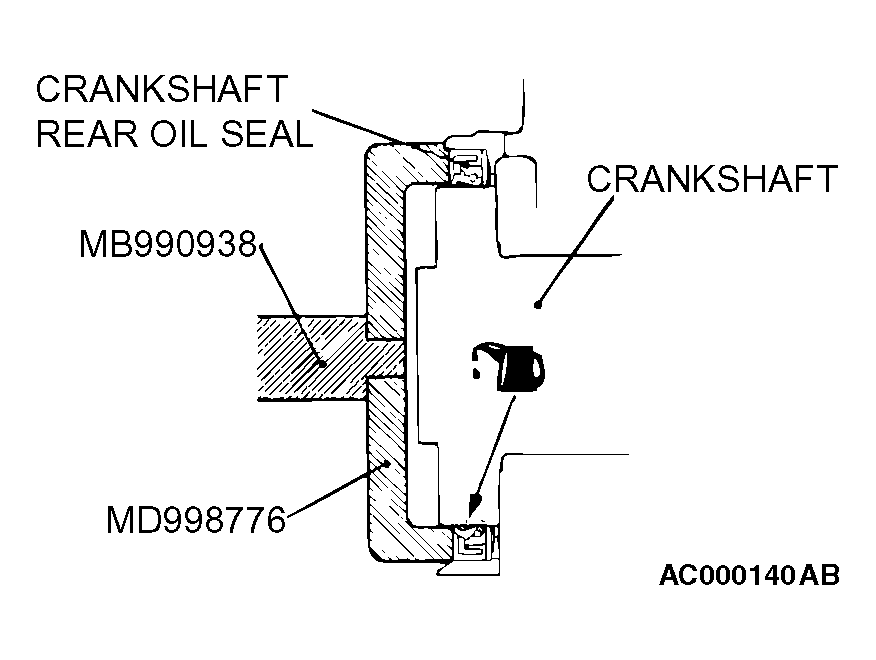

    Fig 1: Applying Small Amount Of Engine Oil To Entire Inside Diameter Of Oil Seal Lip
    G04538162Courtesy of DAIMLERCHRYSLER CORPORATION
