  1. To prevent the crankshaft bolt from loosening, degrease or clean the seating surfaces of the crankshaft, crankshaft sprocket B, crankshaft sensing blade and crankshaft at the shown positions.
  2. Install the crankshaft sensing blade so that they face as shown in the illustration.
  3. Apply the minimum amount of engine oil to the seat surface and thread of the crankshaft bolt.

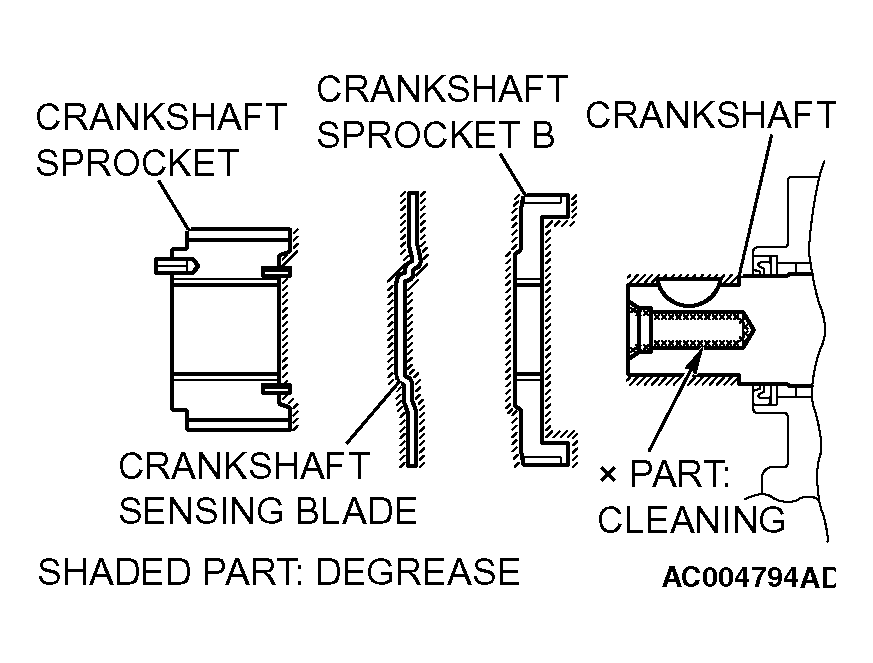

    Fig 1: Identifying Crankshaft Sprocket And Crankshaft Sensing Blade
    G04538157Courtesy of DAIMLERCHRYSLER CORPORATION
  4. Use the crankshaft pulley mounting bolt to secure special tool MB991367.
  5. Tighten the crankshaft sprocket bolt to the specified torque.

    Tightening torque: 118 +/- 9 N.m (87 +/- 7 ft-lb)

    Fig 2: Tightening Crankshaft Sprocket Bolt Using Special Tools
    G04538158Courtesy of DAIMLERCHRYSLER CORPORATION
