Removal And Installation: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

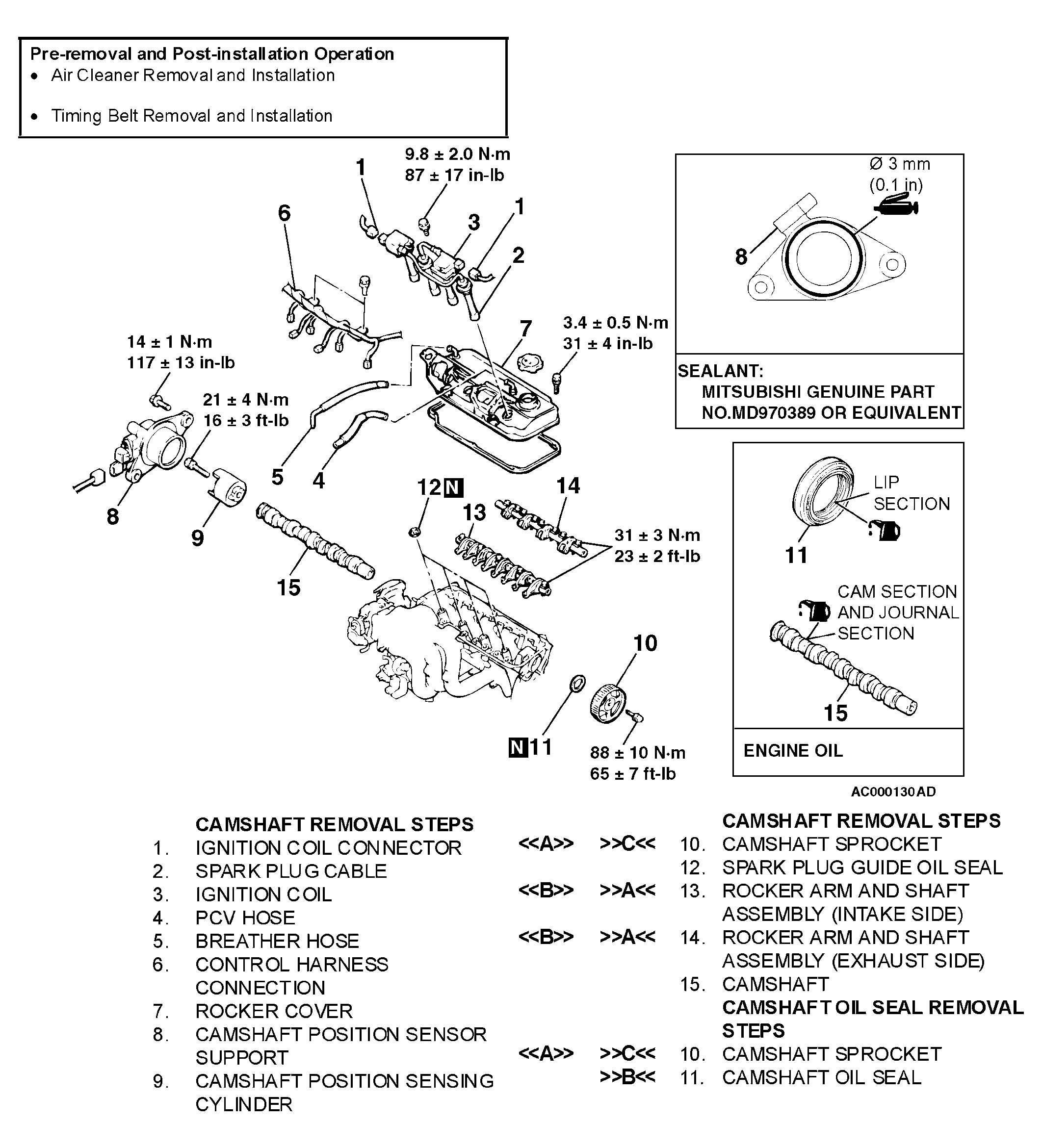

Fig 1: Identifying Camshaft And Camshaft Oil Seal Components

Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:

MB990767: End Yoke Holder
MD998713: Crankshaft Oil Seal Installer
MD998443: Lash Adjuster Holder (8)
MD998719: Crankshaft Pulley Holder Pin
