>> A << Rocker Arm And Shaft Assembly Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Temporarily tighten the rocker shaft with the bolt so that all rocker arms do not push the valves.
  2. Fit the rocker shaft spring from the above and position it so that it is right angles to the plug guide.
    NOTE: Install the rocker shaft spring before installing the rocker arm and rocker arm shaft on the exhaust side.
  3. Tighten the rocker arm and shaft assembly mounting bolt to the specified torque.

    Tightening torque: 31 +/- 3 N.m (23 +/- 2 ft-lb)

  4. Remove special tool MD998443.

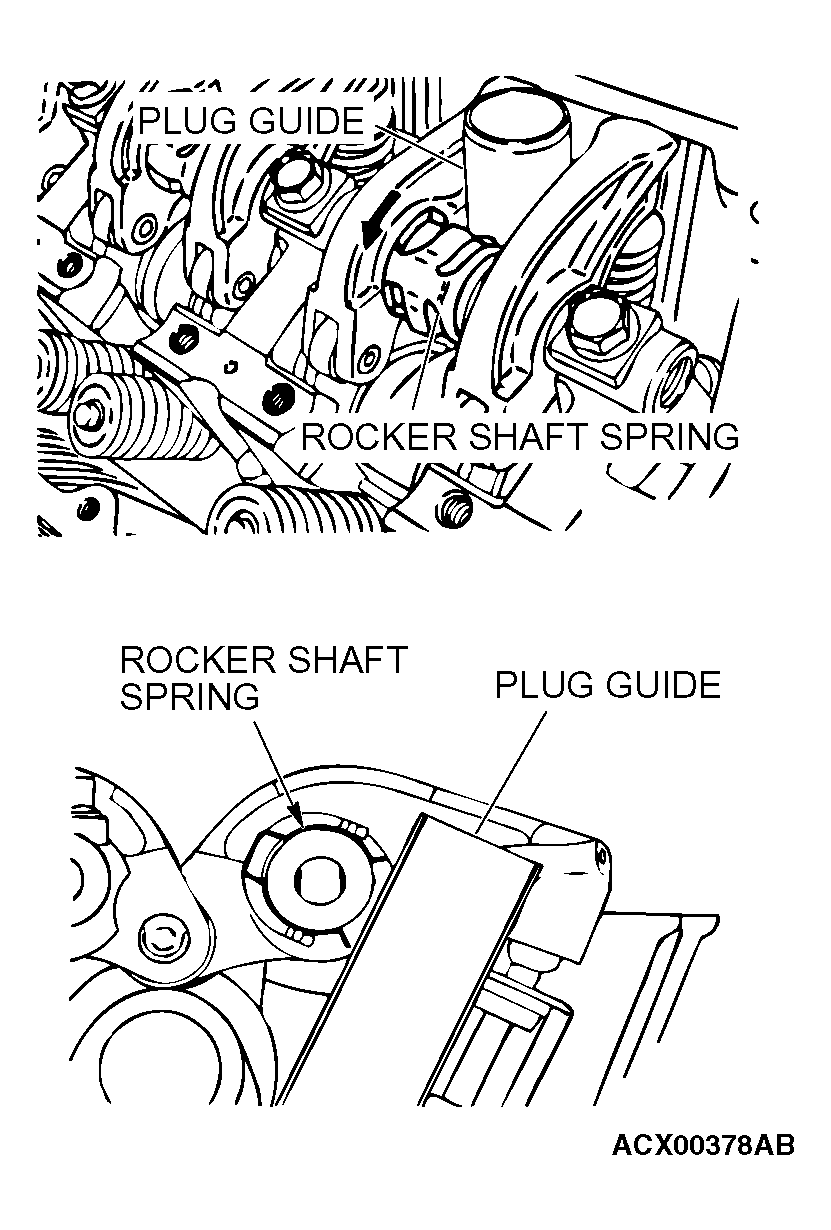

    Fig 1: Identifying Rocker Shaft Spring And Plug Guide
    G04538146Courtesy of DAIMLERCHRYSLER CORPORATION
  5. Make sure that the notch in the end of the rocker arm shaft is facing the direction shown.
    Fig 2: Identifying Notch End Of Rocker Arm Shaft
    G04538147Courtesy of DAIMLERCHRYSLER CORPORATION
