Replacement Of Air Cleaner Element

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclamp the air cleaner cover.
  2. Remove the air cleaner element and install a new one.
  3. When clamping the air cleaner cover in place, be sure that the cover is completed closed.

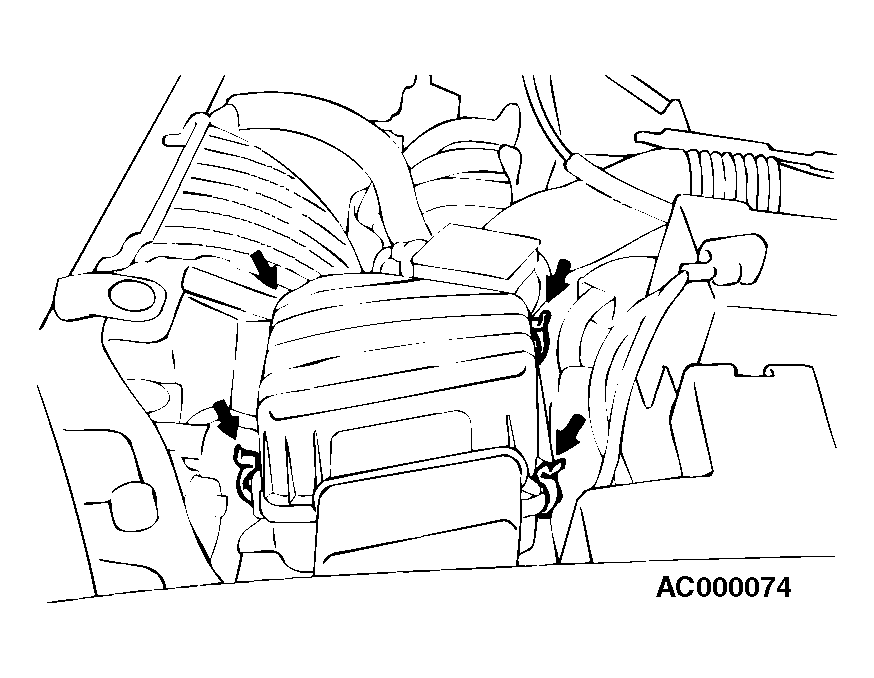

    Fig 1: Removing Air Cleaner Element
    G04536866Courtesy of DAIMLERCHRYSLER CORPORATION
