SRS Air Bag Control Unit (SRS-Ecu)

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The SRS may not activate if the SRS-ECU (with built-in safing G-sensor and analog G-sensor) is not installed properly, which could result in serious injury or death to the vehicle's driver and front passenger.

Check the SRS-ECU case and brackets for dents, cracks, deformation or rust.
Check the connector for damage, and check the terminals for deformation or rust.
Replace the SRS-ECU if it fails the visual checks above. (Refer to , SRS AIR BAG CONTROL UNIT .)

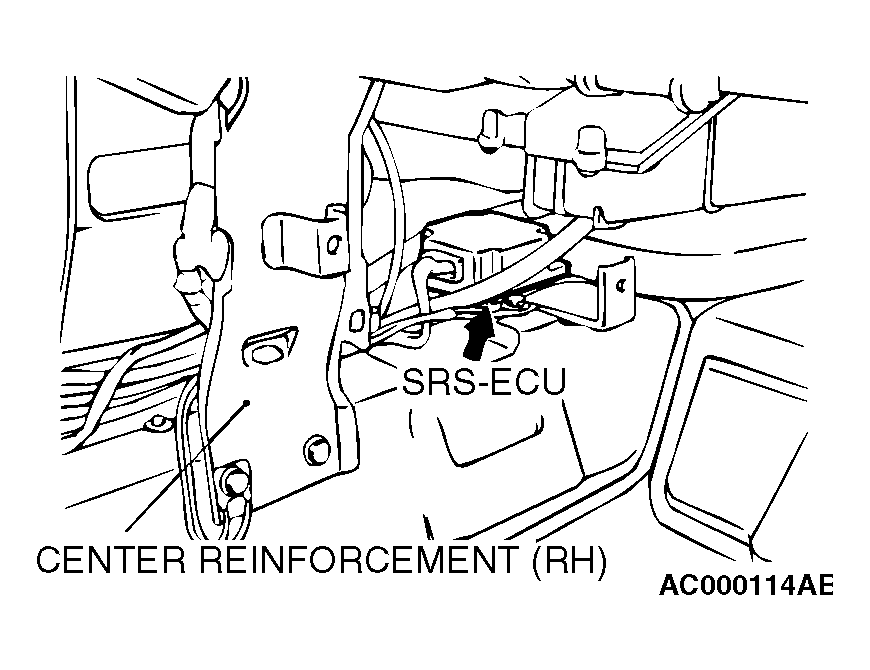

Fig 1: Identifying SRS Air Bag Control Unit
Courtesy of DAIMLERCHRYSLER CORPORATION
