(Change Oil)

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the filler plug.
  2. Remove the drain plug and drain the oil.
  3. Tighten the drain plug to the specified torque.

    Tightening torque: 32 +/- 2 N.m (24 +/- 1 ft-lb)

  4. Fill with gear oil API classification GL-4 SAE 75W - 85W or 75W - 90 until the level comes to the lower portion of filler plug hole.

    Quantity:

    < 2.4L Engine > 2.2 dm 3  (2.3 quarts)

    < 3.0L Engine > 2.8 dm 3  (3.0 quarts)

  5. Tighten the filler plug to the specified torque.

    Tightening torque: 32 +/- 2 Nm (24 +/- 1 ft-lb)

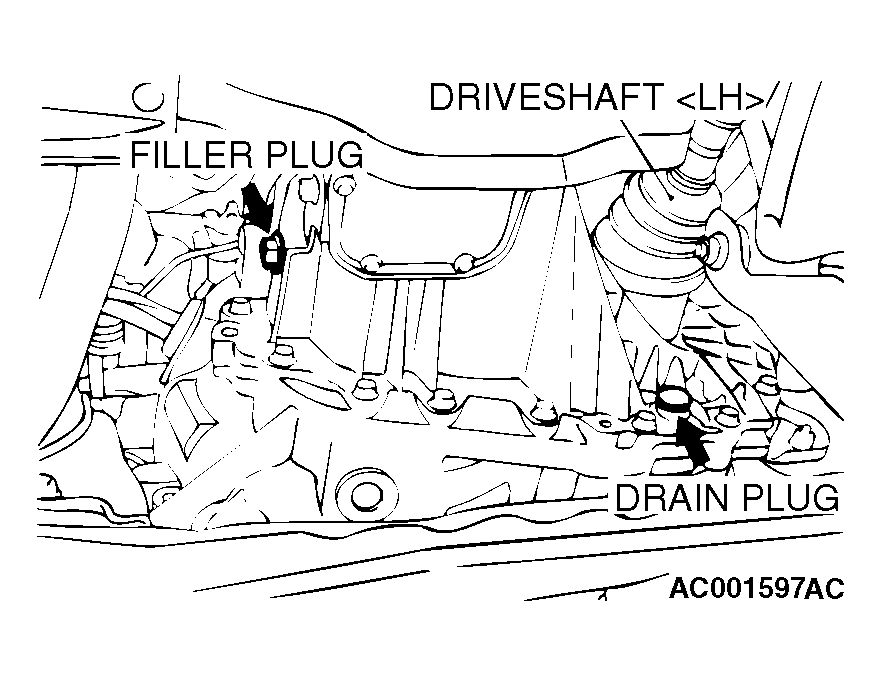

    Fig 1: Removing Drain Plug
    G04536887Courtesy of DAIMLERCHRYSLER CORPORATION
