INSPECTION PROCEDURE 2: Communication with Scan Tool MB991502 is not Possible. (Communication is not Possible with SRS.): Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

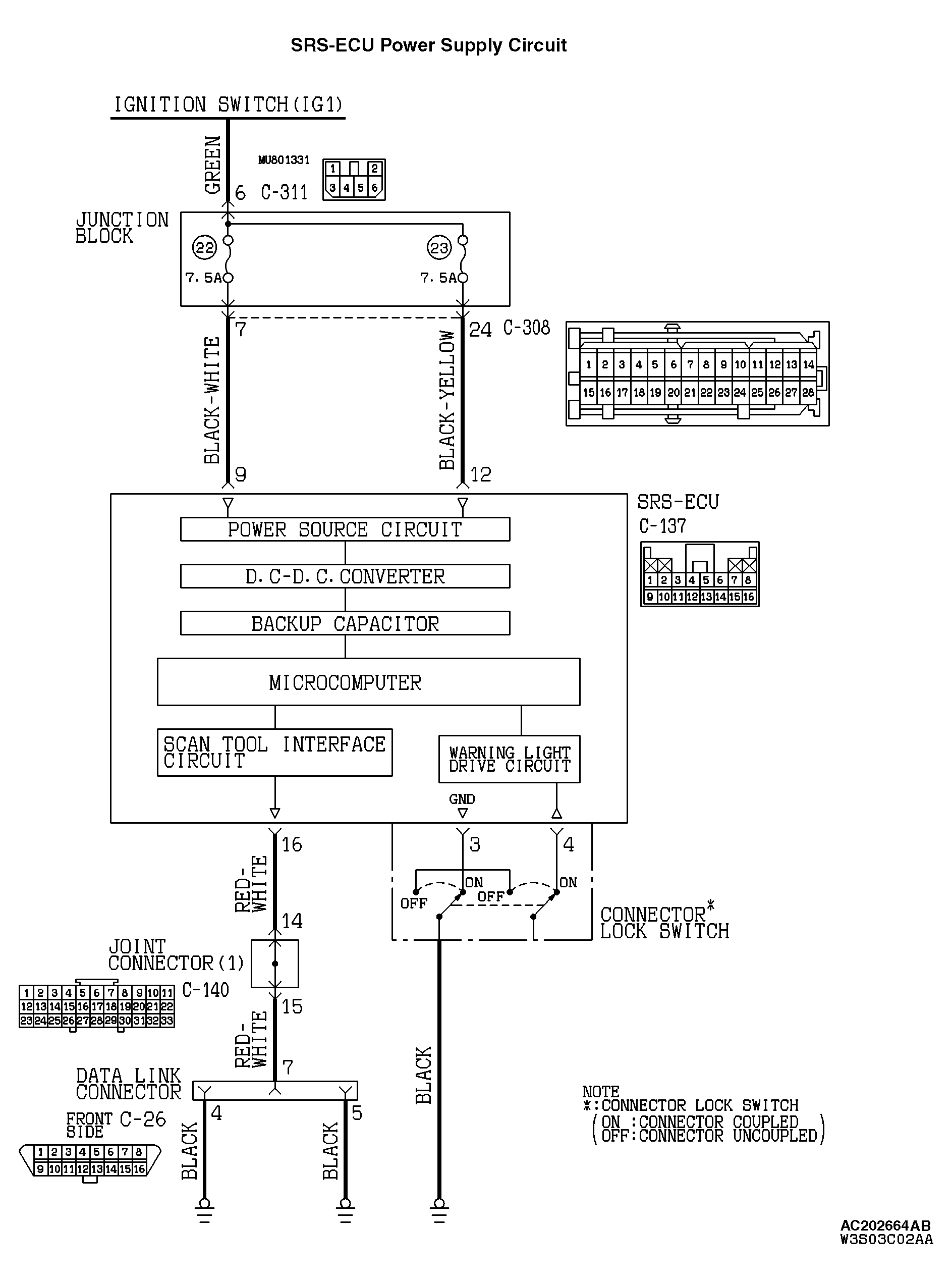

Fig 1: SRS-ECU Power Supply Circuit(1 Of 2)
G04537914Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 2: SRS-ECU Power Supply Circuit(2 Of 2)
G04537915Courtesy of DAIMLERCHRYSLER CORPORATION
