DTC 94: Side Impact Sensor (RH) Power Supply Circuit System: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

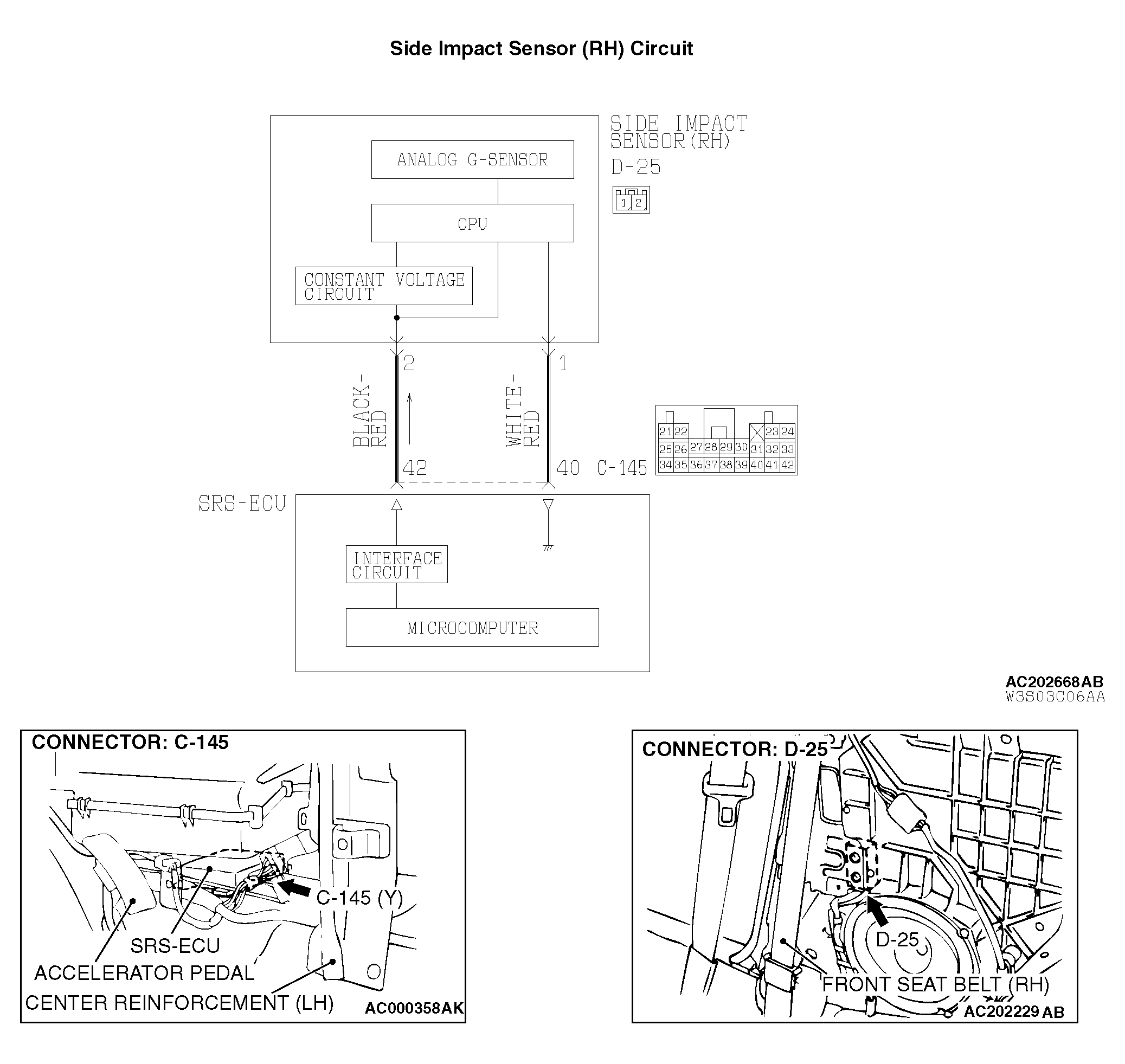

Fig 1: Side Impact Sensor (RH) Circuit
G04537909Courtesy of DAIMLERCHRYSLER CORPORATION
