DTC 81: Side-Airbag Module (LH) (Squib) System Fault 1 (Short Circuit between Terminals of the Squib Circuit): Diagnosis
Required Special Tools:
- MB991502: Scan Tool (MUT-II)
- MB991865: Dummy Resistor
- MB991866: Resistor Harness
- MB991223 (MB991222): Harness Set (Probe)
- STEP 1. Check the DTC.
Q: Is DTC 34 set?
YES : Go to Step 2.
NO: Go to Step 3.

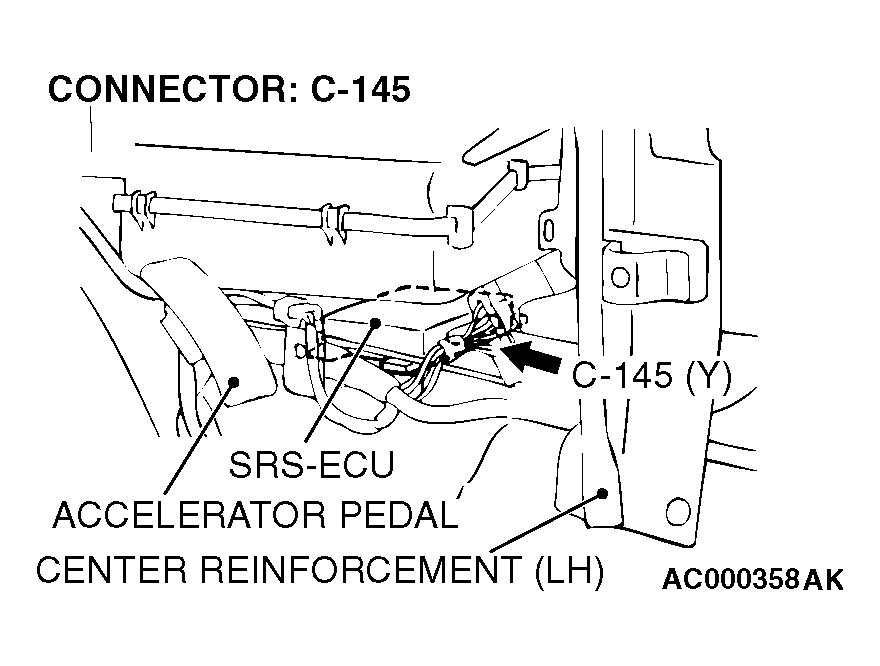

- STEP 2. Check the SRS-ECU connector C-145.
Q: Is the connector correctly engaged?
YES : Go to Step 3.
NO: Engage the connector correctly. Then go to Step 7.

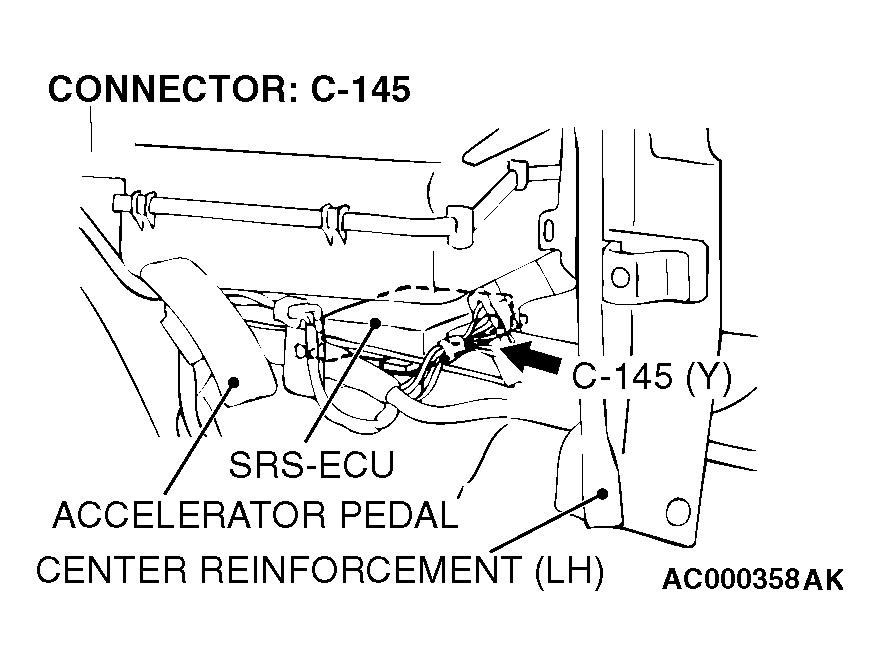

- STEP 3. Check the SRS-ECU connector C-145 and the side-airbag module (LH) connector D-23.
- Disconnect the negative battery terminal.
- Disconnect the connectors C-145 and D-23, and then reconnect them.
- Connect the negative battery terminal.
- Erase the DTC memory, and then recheck the DTC.
Q: Is DTC 81 set?
YES : Go to Step 4.
NO: The procedure is complete. It is assumed that DTC 81 set as the connector C-145 or D-23 was engaged improperly.
- STEP 4. Check the side-airbag module (LH).
- Disconnect the negative battery terminal.
- Disconnect the side-airbag module (LH) connector D-23.

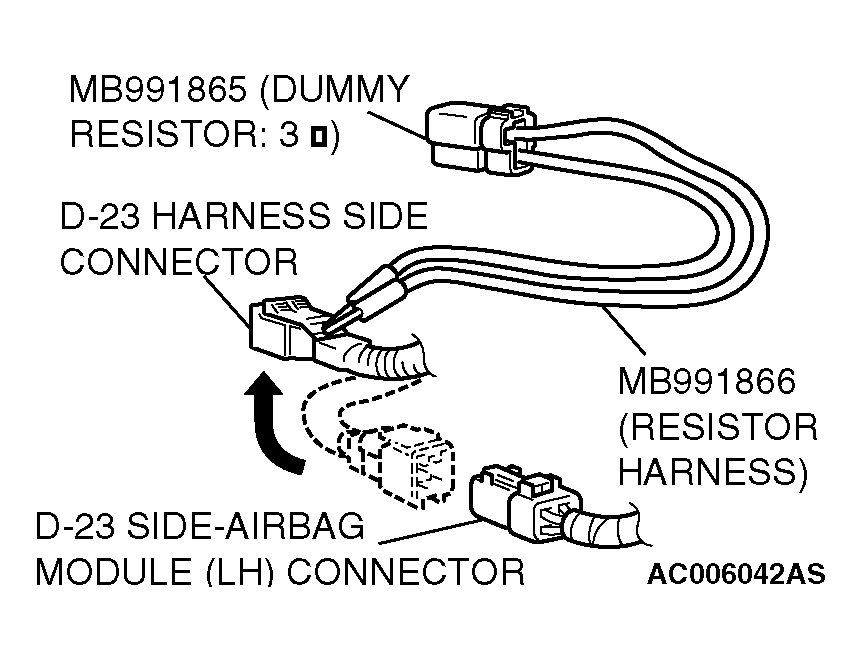

- Connect special tool MB991865 to special tool MB991866.CAUTION: Do not insert a test probe into the terminal from its front side directly as the connector contact pressure may be weakened.
- Insert special tool MB991866 into the D-23 harness side connector by backprobing.
- Connect the negative battery terminal.
- Erase DTC memory, and then recheck the DTC.
Q: Is DTC 81 set?
YES : Go to Step 5.
NO: Replace the seatback assembly of the front seat (LH) (Refer to FRONT SEAT ASSEMBLY ). Then go to Step 7.
- STEP 5. Check the side-airbag module (LH) circuit at the SRS-ECU connector C-145.
- Disconnect the SRS-ECU connector C-145.
WARNING: To prevent the side-airbag from deploying unintentionally, disconnect the side-airbag module (LH) connector D-23 to short the squib circuit.
- Disconnect the side-airbag module (LH) connector D-23.

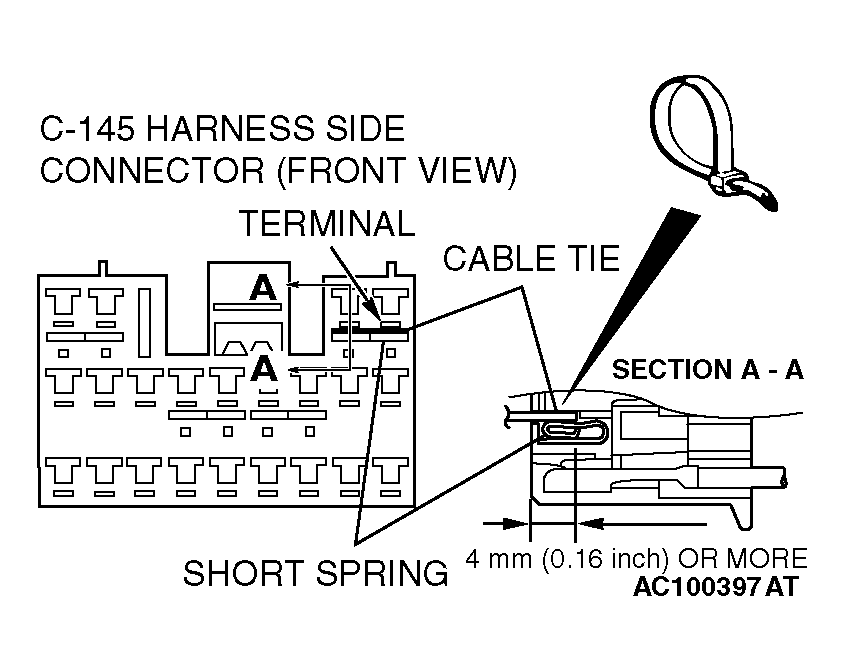

CAUTION: Insert an insulator such as a cable tie to a depth of 4mm (0.16 inch) or more, otherwise the short spring will not be released.
- Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch) thick] between the terminals 21, 22 and the short spring to release the short spring.
CAUTION: Do not insert a test probe into the terminal from its front side directly as the connector contact pressure may be weakened.

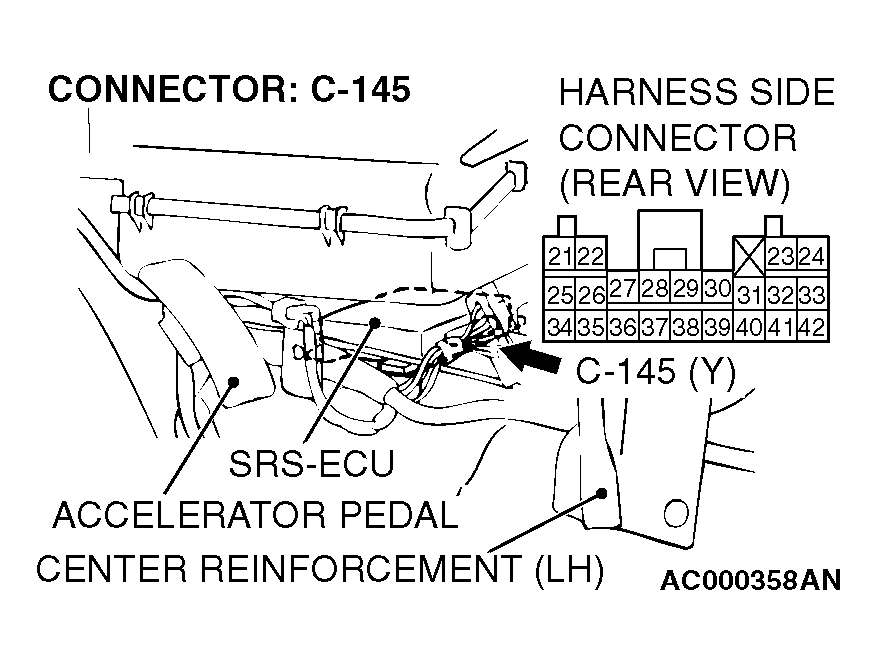

- Check for continuity between the C-145 harness side connector terminals 21 and 22.
It should be open circuit.
Q: Is the circuit normal?
YES : Go to Step 6.
NO: Erase the DTC memory, and check if any DTC sets. If DTC 81 sets, replace the SRS-ECU (Refer to SRS CONTROL UNIT (SRS-ECU) ). Then go to Step 7.
- Disconnect the SRS-ECU connector C-145.
- STEP 6. Check the harness wires for short circuit between the SRS-ECU connector C-145 (terminal No.21 and 22) and the side-airbag module (LH) connector D-23 (terminal No.1 and 2).
Q: Are the harness wires between the SRS-ECU connector C-145 (terminal No.21 and 22) and the side-airbag module (LH) connector D-23 (terminal No.1 and 2) in good condition?
YES : Go to Step 7.
NO: Repair the harness wires between the SRS-ECU connector C-145 and the side-airbag module (LH) connector D-23. Then go to Step 7.
- STEP 7. Check for DTC.
Q: Is DTC 81 set?
YES : Return to Step 1.
NO: The procedure is complete (If no malfunctions are found in all steps, an intermittent malfunction is suspected. Refer to TO COPE WITH INTERMITTENT MALFUNCTION ).
