DTC 61: Driver's Air Bag Module (Squib) System Fault for Power Supply Circuit (Short-Circuited to Power Supply): Diagnosis

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

  1. STEP 1. Check the SRS-ECU to clock spring line.
    1. Disconnect the negative battery terminal.
    2. Disconnect the clock spring connector C-204 (4-pin).
      Fig 1: Identifying Connector C-204
      G04537797Courtesy of DAIMLERCHRYSLER CORPORATION
    3. Connect special tool MB991865 to special tool MB991866.
      CAUTION: Do not insert a test probe into the terminal from its front side directly as the connector contact pressure may be weakened.
    4. Insert special tool MB991866 into the clock spring harness side connector C-204 (terminal No.3 and 4) by backprobing.
    5. Connect the negative battery terminal.
    6. Erase the DTC memory, and then recheck the DTC.

    Q: Is DTC 61 set?

    YES  : Go to  Step 3.

    NO:  Go to Step 2.

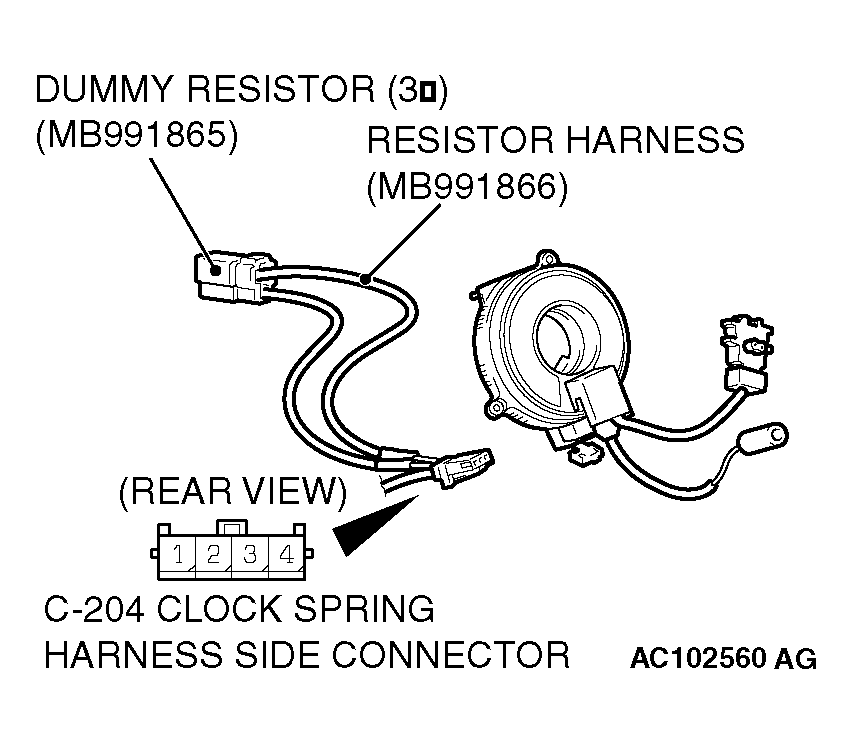

    Fig 2: Identifying Special Tools
    G04537798Courtesy of DAIMLERCHRYSLER CORPORATION
  2. STEP 2. Check the clock spring and the driver's air bag module.
    1. Disconnect the negative battery terminal.
    2. Connect connector (4) of special tool MB991613 to clock spring connector C-208.
    3. Connect connector (1) of special tool MB991613 to connector (2).
    4. Connect terminals 22 to 24, and terminals 23 to 25 of special tool MB991613 to connector (5).
    5. Connect the clock spring to the instrument panel wiring harness.
    6. Connect the negative battery terminal.
    7. Erase the DTC memory, and then recheck the DTC.

    Q: Is DTC 61 set?

    YES  : Replace the clock spring (Refer to AIR BAG MODULES AND CLOCK SPRING  ). Then go to  Step 4.

    NO:  Replace the driver's air bag module (Refer to AIR BAG MODULES AND CLOCK SPRING  ). Then go to  Step 4.

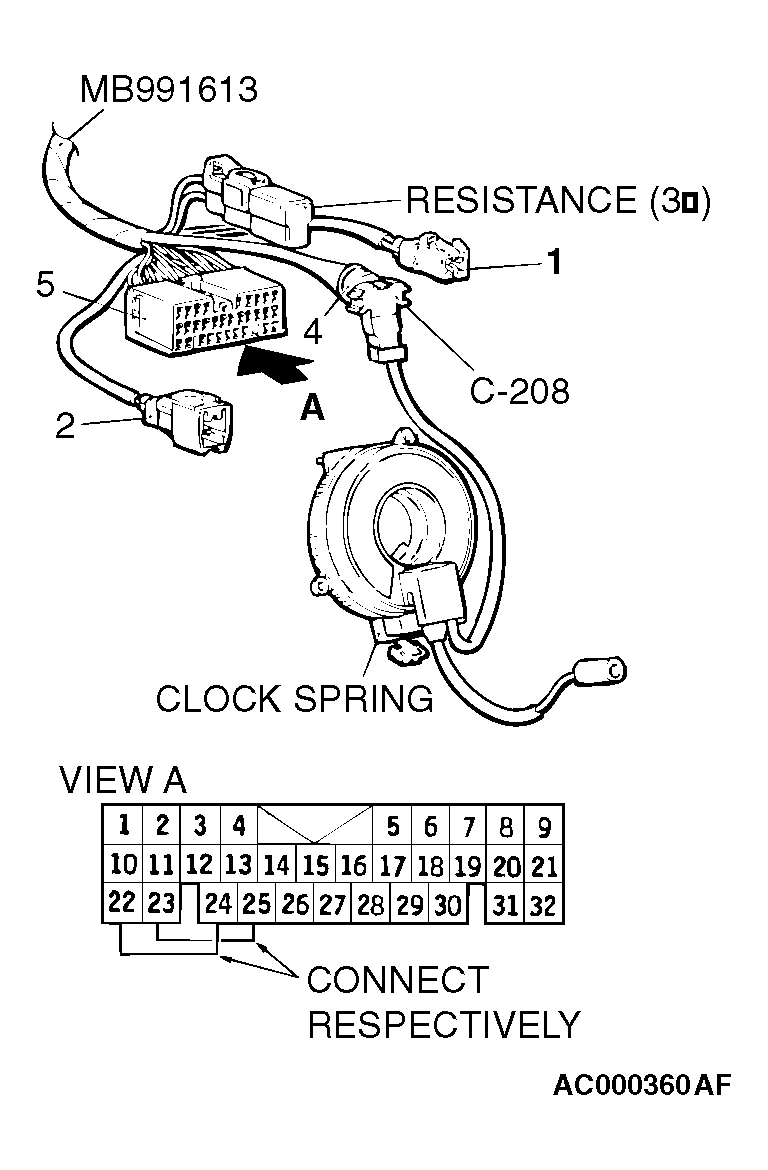

    Fig 3: Connecting Connector Of Special Tool Mb991613 To Clock Spring Connector
    G04537799Courtesy of DAIMLERCHRYSLER CORPORATION
  3. STEP 3. Check the driver's air bag module circuit at the SRS-ECU connector C-137.
    1. Disconnect the SRS-ECU connector C-137.

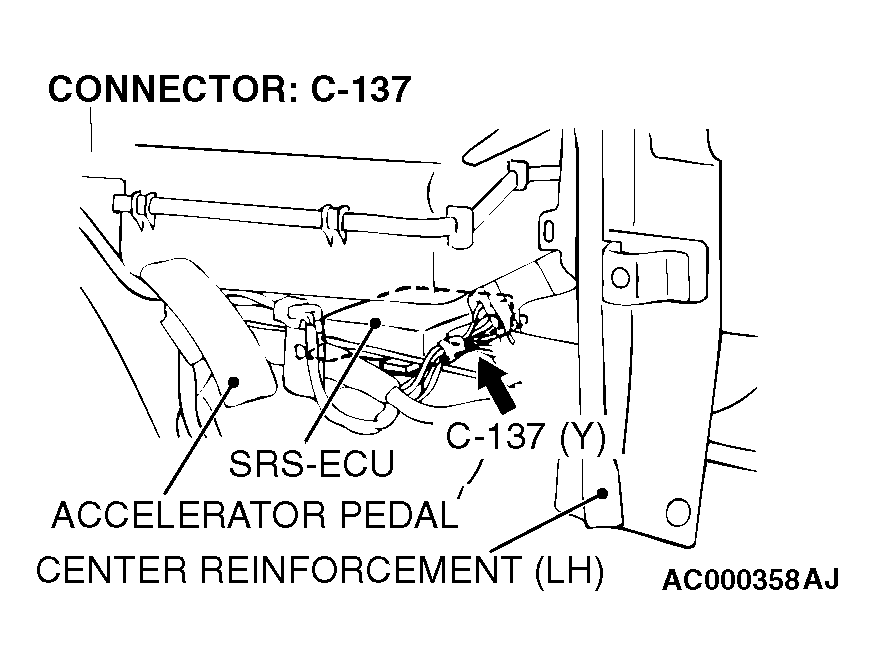

      Fig 4: Identifying Connector C-137
      G04537800Courtesy of DAIMLERCHRYSLER CORPORATION
      WARNING: To prevent the air bag from deploying unintentionally, disconnect the clock spring connector C-204 to short the squib circuit.
    2. Disconnect the clock spring connector C-204.
    3. Turn the ignition switch to the "ON" position.
      Fig 5: Identifying Connector C-204
      G04537801Courtesy of DAIMLERCHRYSLER CORPORATION
      CAUTION: Do not insert a test probe into the terminal from its front side directly as the connector contact pressure may be weakened.
    4. Measure the voltage between the C-137 harness side connector terminals 7, 8 and body ground.

      Voltage should be 0 volt.

    Q: Is the measured voltage within the specified range?

    YES  : Erase the DTC memory, and recheck if any DTC sets. If DTC 61 sets, replace the SRS-ECU (Refer to SRS CONTROL UNIT (SRS-ECU)  ). Then go to  Step 5.

    NO:  Go to Step 4.

    Fig 6: Measuring Voltage Between C-137 Harness Side Connector Terminals 7, 8 And Body Ground
    G04537802Courtesy of DAIMLERCHRYSLER CORPORATION
  4. STEP 4. Check the harness wires for short circuit to power supply between the SRS-ECU connector C-137 (terminal No.7 and 8) and the clock spring connector C-204 (terminal No.3 and 4).

    Q: Are the harness wires between the SRS-ECU connector C-137 (terminal No.7 and 8) and the clock spring connector C-204 (terminal No.3 and 4) in good condition?

    YES  : Go to Step 5.

    NO:  Repair the harness wires between the SRS-ECU connector C-137 and clock spring connector C-204. Then go to Step 5.

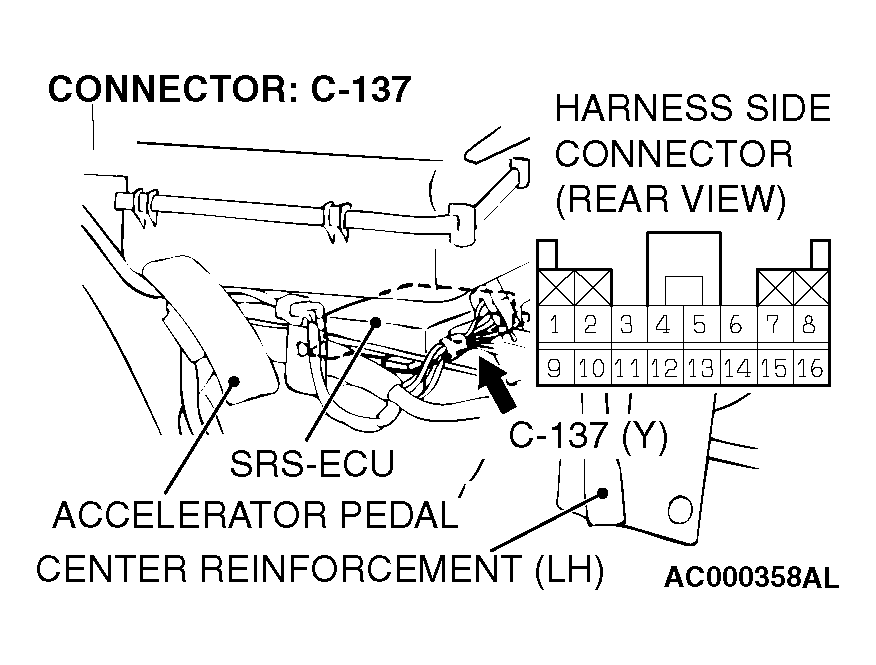

    Fig 7: Identifying Connector C-137
    G04537803Courtesy of DAIMLERCHRYSLER CORPORATION

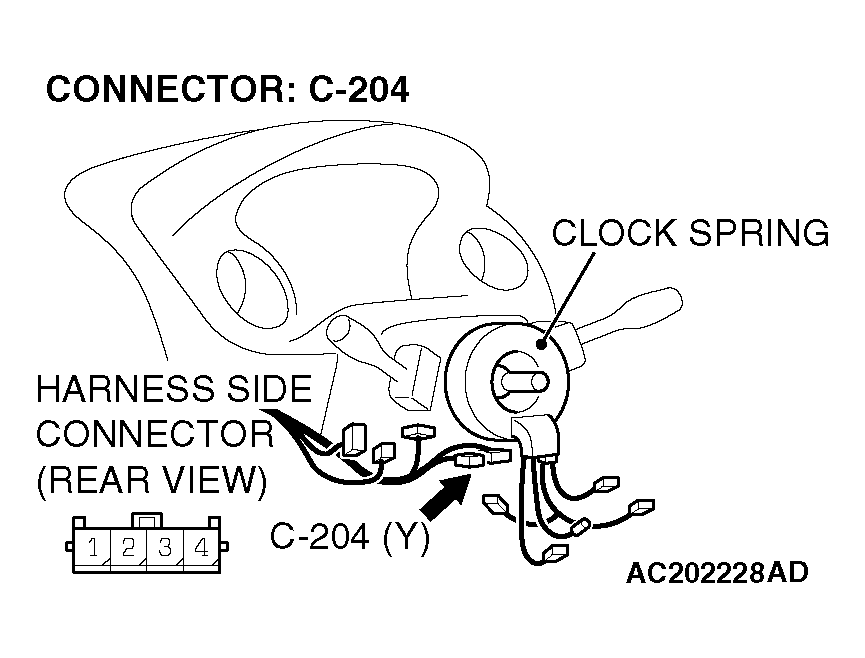

    Fig 8: Identifying Connector C-204
    G04537804Courtesy of DAIMLERCHRYSLER CORPORATION
  5. STEP 5. Check the DTC.

    Q: Is DTC 61 set?

    YES  : Return to  Step 1.

    NO:  The procedure is complete (If no malfunctions are found in all steps, an intermittent malfunction is suspected. Refer to TO COPE WITH INTERMITTENT MALFUNCTION ).
