DTC 43: SRS Warning Light Drive Circuit System Fault 1 (Light does not Go out.): Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

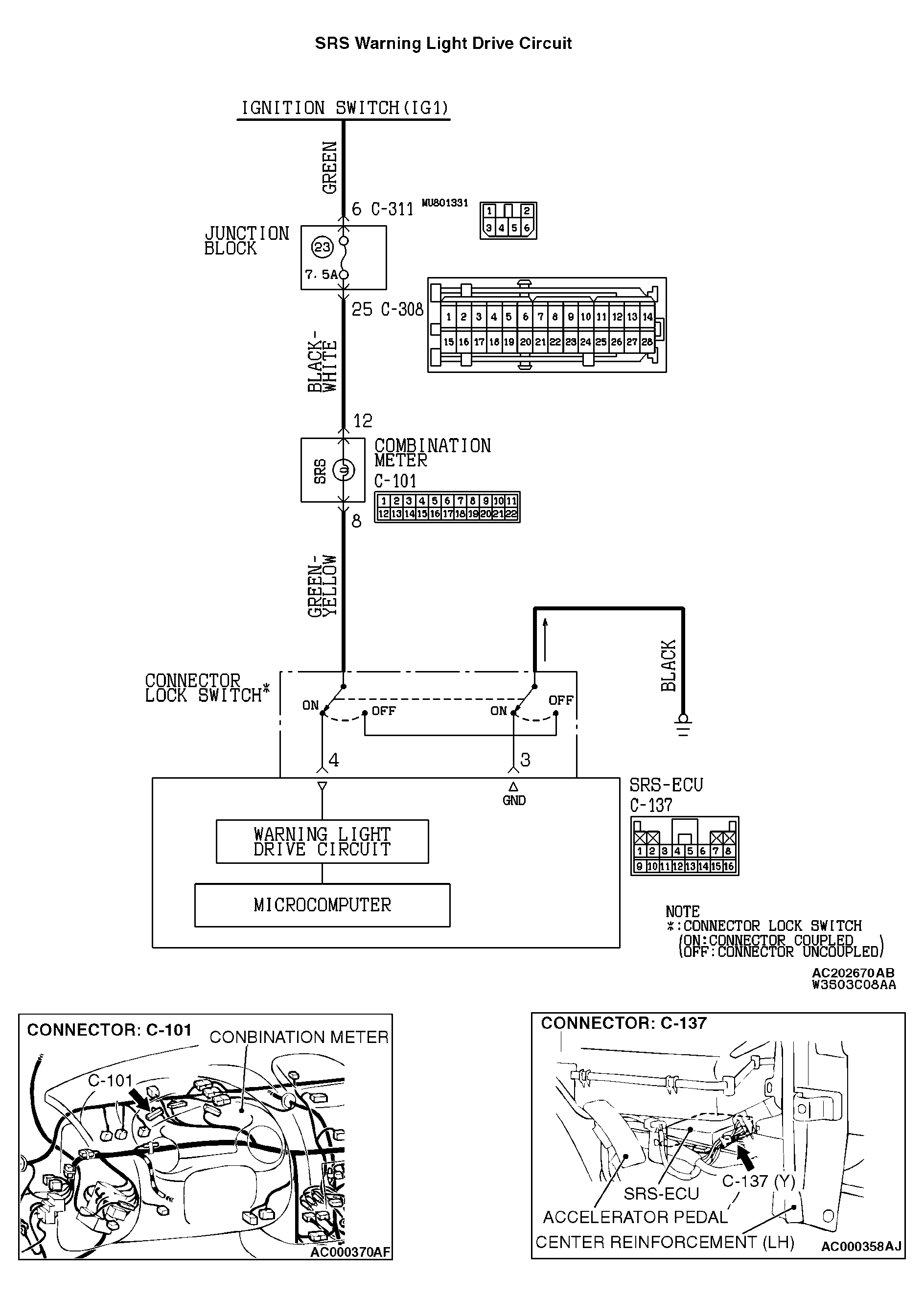

Fig 1: SRS Warning Light Drive Circuit
G04537788Courtesy of DAIMLERCHRYSLER CORPORATION
