DTC 43: SRS Warning Light Drive Circuit System Fault 1 (Light does not Go out.): Diagnosis
Required Special Tool:
- MB991502: Scan Tool (MUT-II)

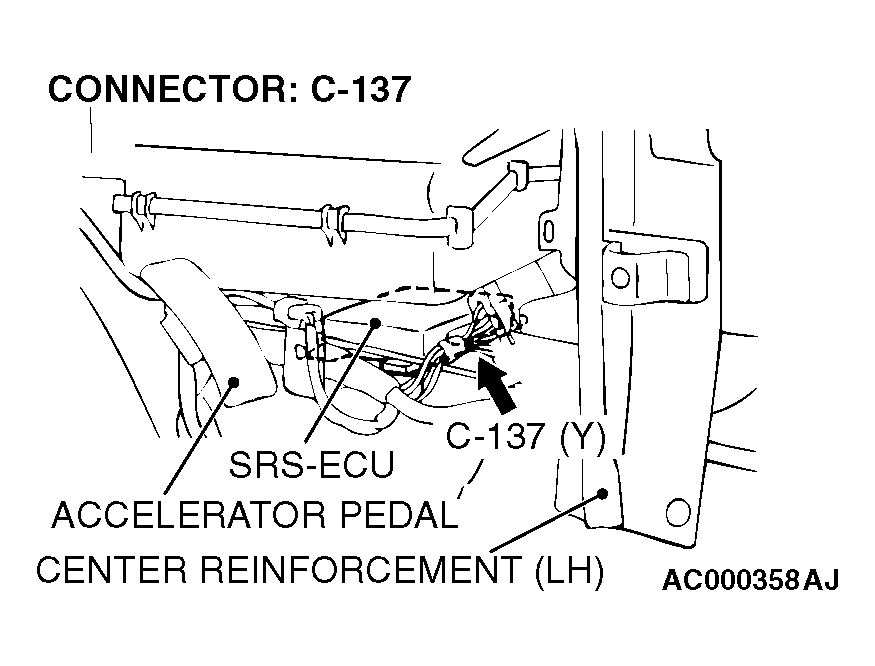

- STEP 1. Check SRS-ECU connector C-137 for damage.
- Disconnect SRS-ECU connector C-137.
- Check the short spring for the warning light inside the harness side connector for improper contact or deformation.
Q: Is SRS-ECU connector C-137 in good condition?
YES : Then go to Step 2.
NO: Repair or replace the SRS-ECU connector C-137. Then go to Step 4.
- STEP 2. Check the SRS warning light.
- Disconnect the SRS-ECU connector C-137.

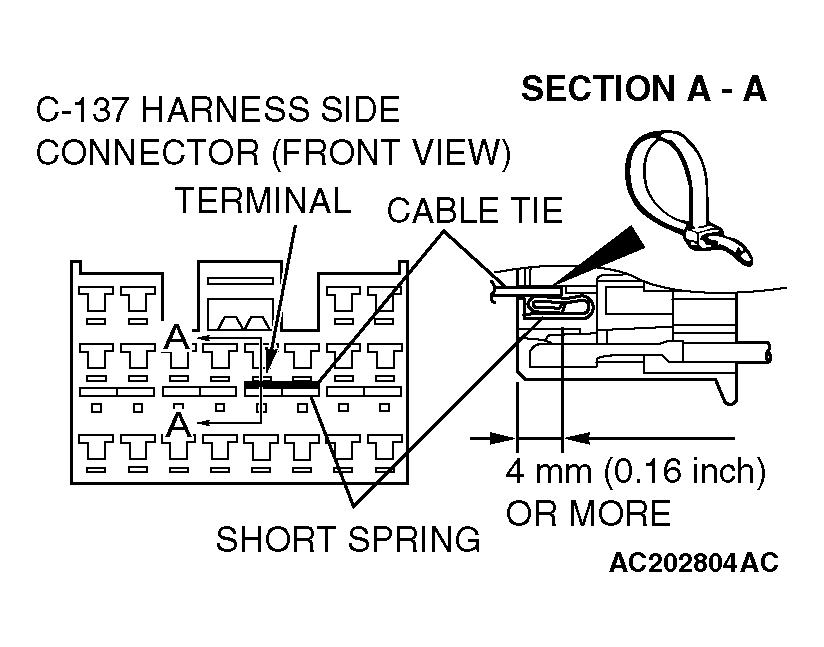

CAUTION: Insert an insulator such as a cable tie to a depth of 4mm (0.16 inch) or more, otherwise the short spring will not be released.
- Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch) thick] between the terminals 3, 4 and the short spring to release the short spring.
- Connect the negative battery cable.
- Turn the ignition switch to the "ON" position.
Q: Does the SRS warning light go out?
YES : Erase the DTC memory, and recheck if any DTC sets. If DTC 43 sets, replace the SRS-ECU (Refer to SRS CONTROL UNIT (SRS-ECU) ). Then go to Step 4.
NO: Go to Step 3.
- Disconnect the SRS-ECU connector C-137.

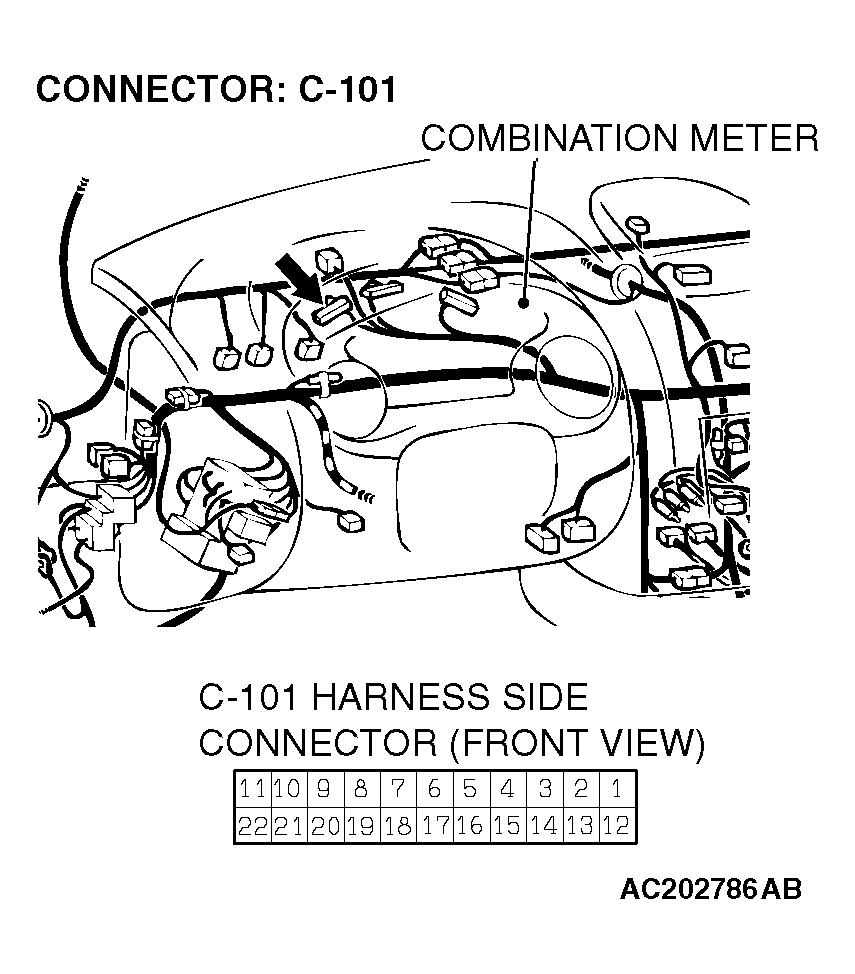

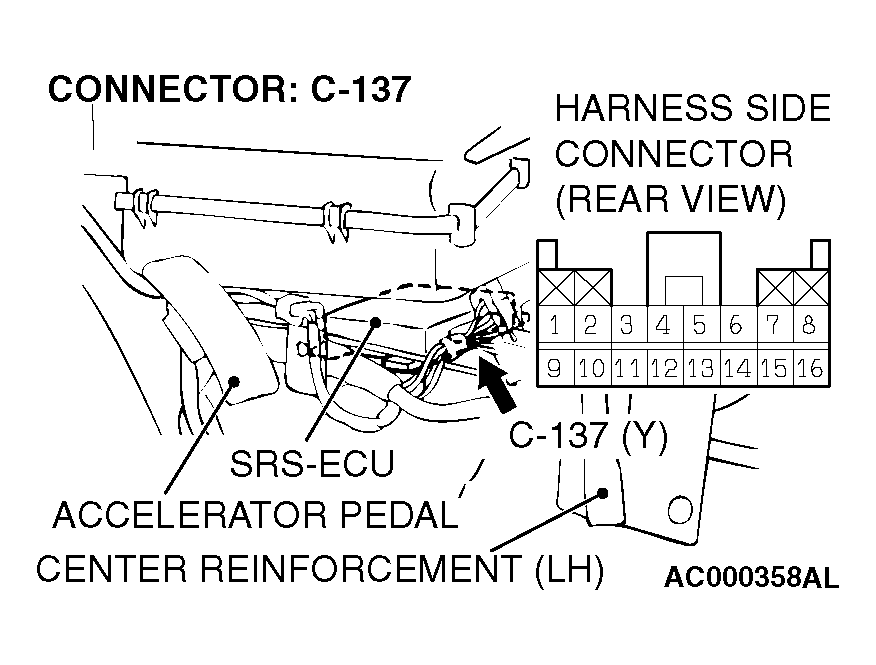

- STEP 3. Check the harness wire for short circuit to ground between the SRS-ECU connector C-137 (terminal No.4) and the combination meter connector C-101 (terminal No.8).
Q: Is the harness wire between the SRS-ECU connector C-137 (terminal No.4) and the combination meter connector C-101 (terminal No.8) in good condition?
YES : Replace the combination meter (Refer to COMBINATION METERS ASSEMBLY AND VEHICLE SPEED SENSOR ). Then go to Step 4.
NO: Repair the harness wire between the SRS-ECU connector C-137 and the combination meter connector C-101. Then go to Step 4.
- STEP 4. Check for DTC.
Q: Is DTC 43 set?
YES : Return to Step 1.
NO: The procedure is complete (If no malfunctions are found in all steps, an intermittent malfunction is suspected. Refer to TO COPE WITH INTERMITTENT MALFUNCTION ).
