Section 20 (Air Bag Restraint Systems - Coupe)
>>
SRS Air Bag Diagnosis
>>
Diagnostic Trouble Code Procedures
>>
DTC 41: IG1 Power Supply Circuit System (Fuse No.23 Circuit)
>>
Notes
DTC 41: IG1 Power Supply Circuit System (Fuse No.23 Circuit): Notes
WARNING:
This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

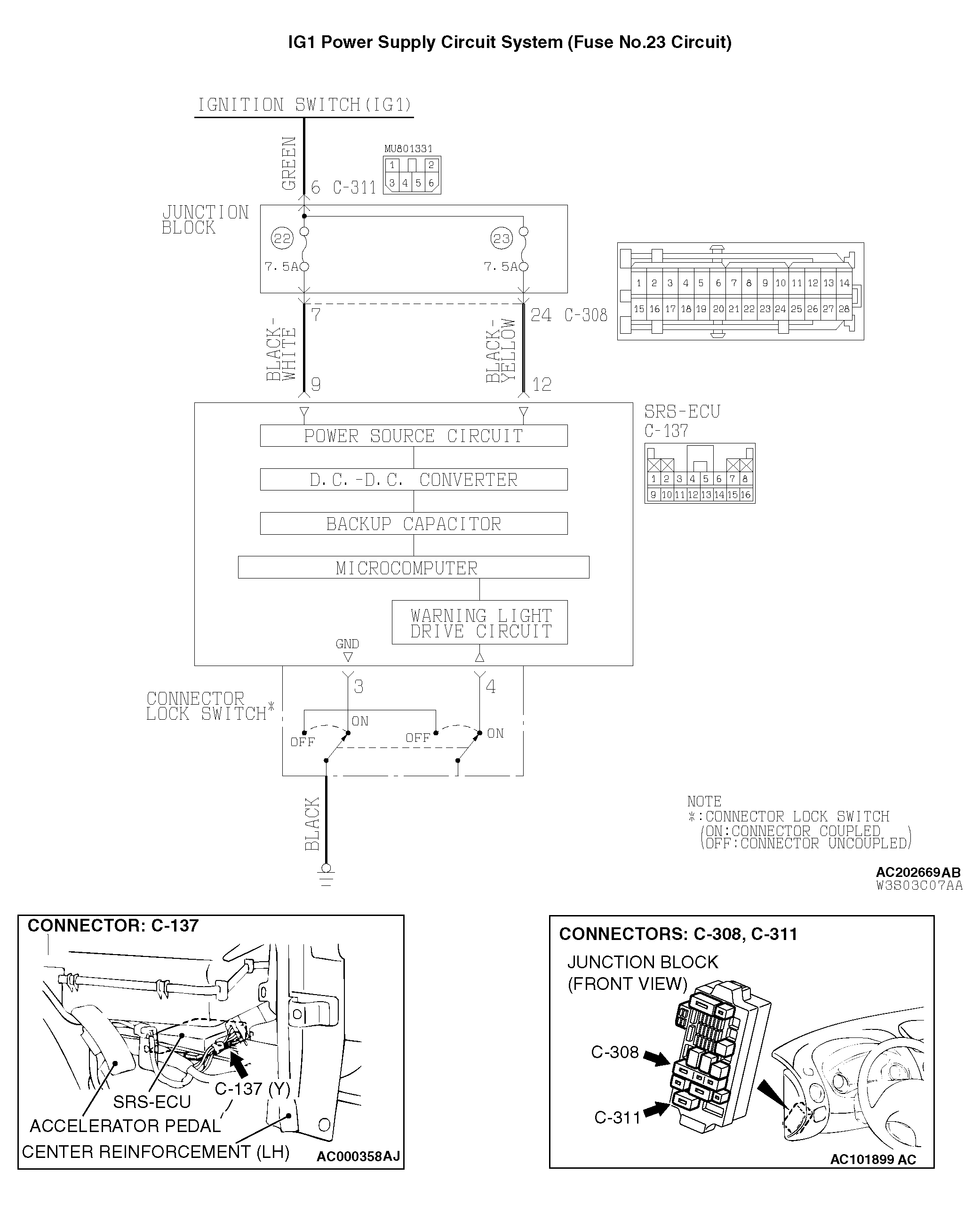

Fig 1: IG1 Power Supply Circuit System
Courtesy of DAIMLERCHRYSLER CORPORATION
