DTC 41: IG1 Power Supply Circuit System (Fuse No.23 Circuit): Diagnosis

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

  1. STEP 1. Check the junction block multi-purpose fuse number 23.

    Q: Is the fuse burned out?

    YES  : Go to  Step 4.

    NO:  Go to Step 2.

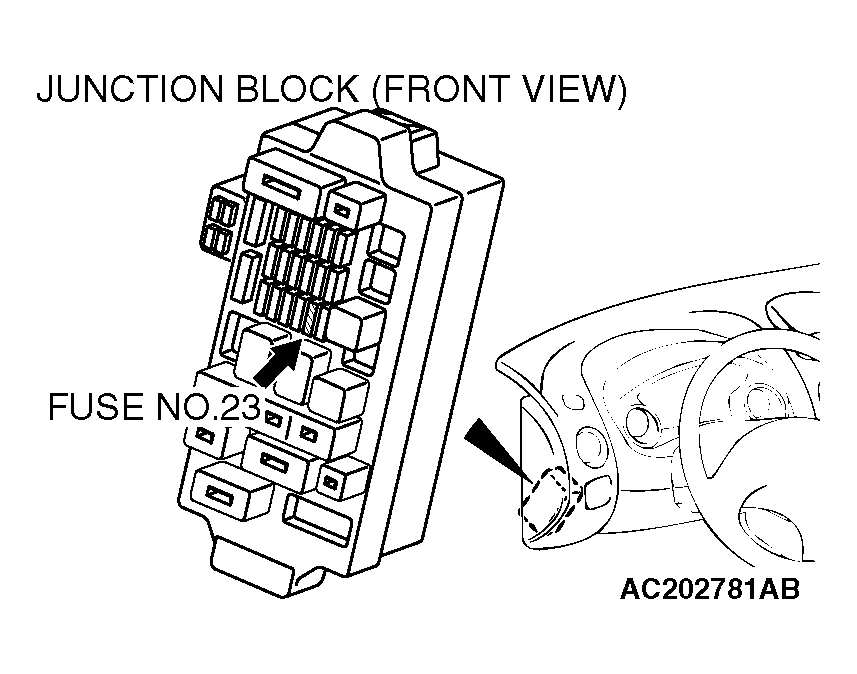

    Fig 1: Identifying Junction Block Multi-Purpose Fuse Number 23
    G04537748Courtesy of DAIMLERCHRYSLER CORPORATION
  2. STEP 2. Check the power supply circuit for open circuit at the SRS-ECU connector C-137.
    1. Disconnect the negative battery terminal.
    2. Disconnect the SRS-ECU connector C-137.
    3. Connect the negative battery terminal.
    4. Turn the ignition switch to the "ON" position.

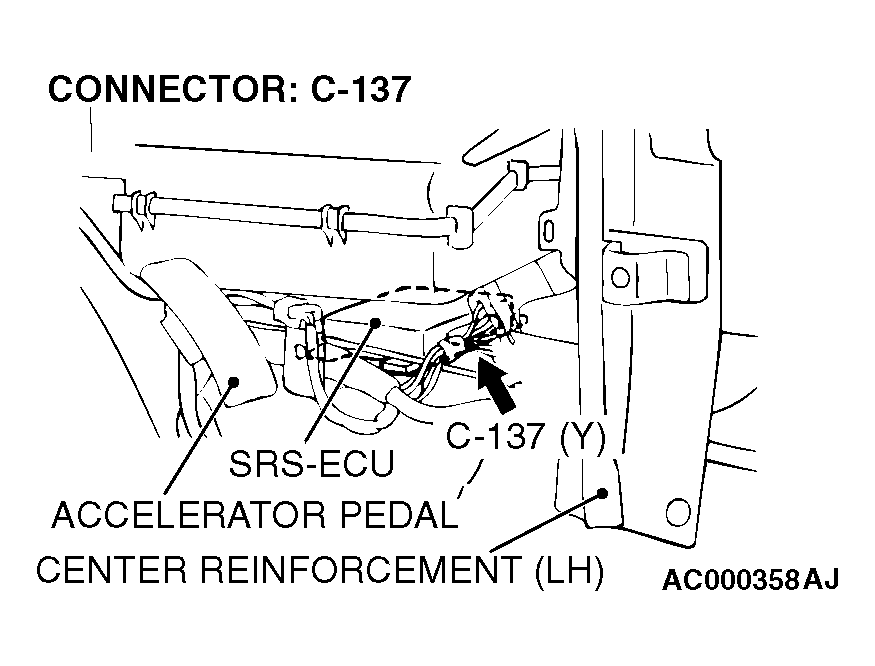

      Fig 2: Identifying SRS-ECU Connector C-137
      G04537749Courtesy of DAIMLERCHRYSLER CORPORATION
      CAUTION: Do not insert a test probe into the terminal from its front side directly as the connector contact pressure may be weakened.
    5. Measure the voltage between the C-137 harness side connector terminal 12 and body ground. Voltage should be 9 volts or more.

    Q: Is the measured voltage within the specified range?

    YES  : Erase the DTC memory, and recheck if any DTC sets. If DTC 41 sets, replace the SRS-ECU (Refer to SRS CONTROL UNIT (SRS-ECU)  ). Then go to  Step 10.

    NO:  Go to Step 3.

    Fig 3: Measuring Voltage Between C-137 Harness Side Connector Terminal 12 And Body Ground
    G04537750Courtesy of DAIMLERCHRYSLER CORPORATION
  3. STEP 3. Check the harness wire for open circuit between the SRS-ECU connector C-137 (terminal No.12) and the ignition switch connector C-202 (terminal No.2).
    NOTE: After inspecting the intermediate connectors C-308 and C-311, inspect the wiring harness. If the intermediate connector C-308 or C-311 is damaged, repair or replace it. Refer to , HARNESS CONNECTOR INSPECTION . Then go to  Step 10.

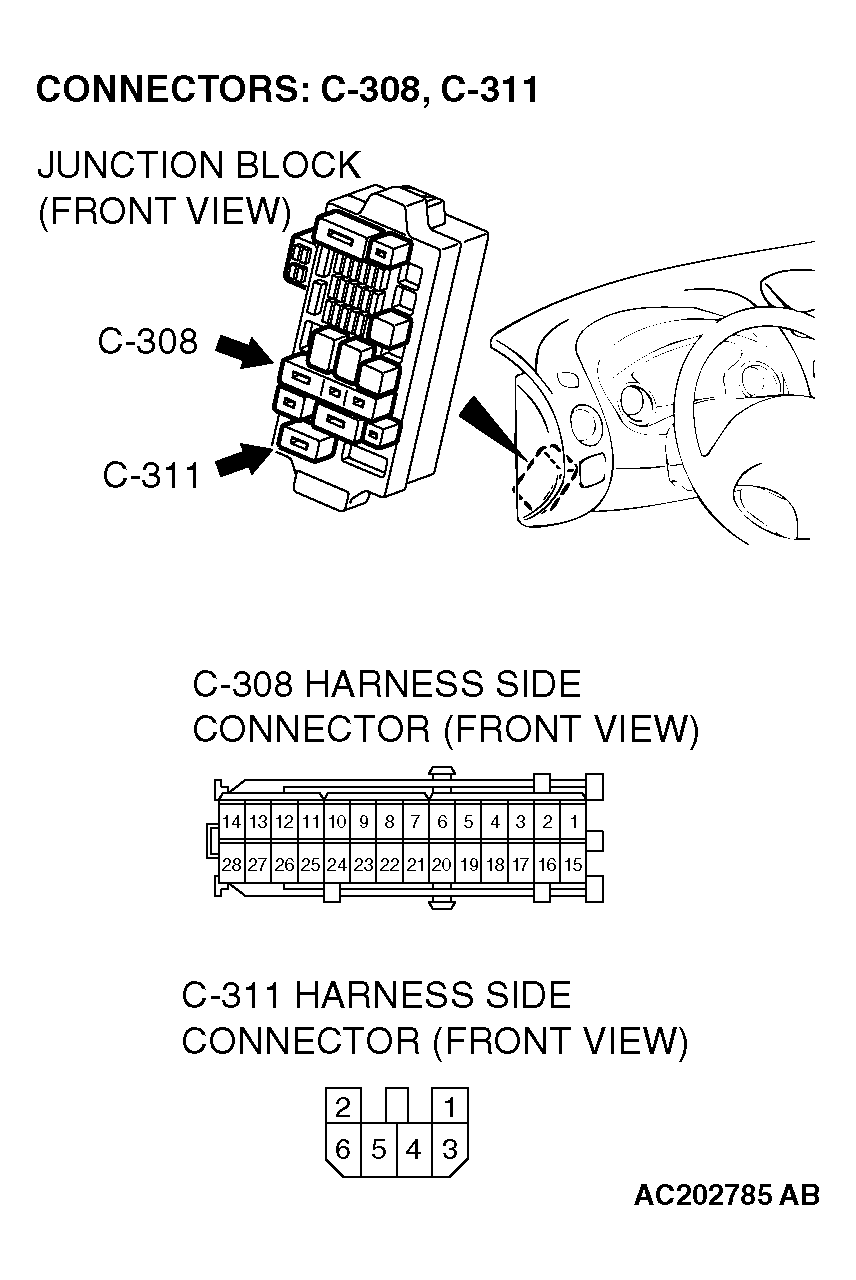

    Fig 4: Identifying Connectors C-308, C-311
    G04537751Courtesy of DAIMLERCHRYSLER CORPORATION

    Q: Is the harness wire between the SRS-ECU connector C-137 (terminal No.12) and the ignition switch connector C-202 (terminal No.2) in good condition?

    YES  : Go to  Step 10.

    NO:  Repair the harness wire between the SRS-ECU connector C-137 and the ignition switch connector C-202. Then go to  Step 10.

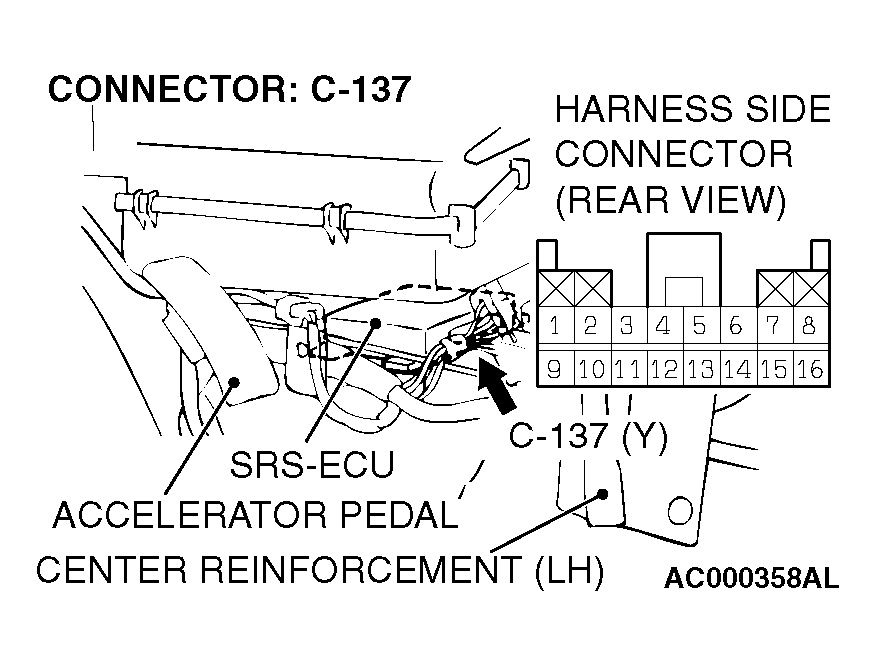

    Fig 5: Identifying Connector C-137
    G04537752Courtesy of DAIMLERCHRYSLER CORPORATION

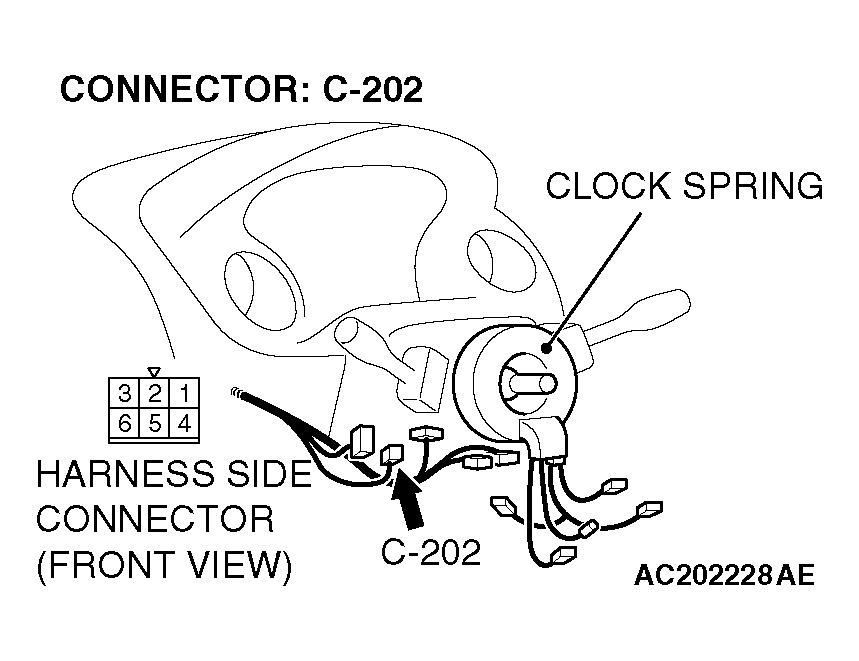

    Fig 6: Identifying Connector C-202
    G04537753Courtesy of DAIMLERCHRYSLER CORPORATION
  4. STEP 4. Check a burned-out fuse.
    1. Replace the fuse.
    2. Turn the ignition switch to the "ON" position, wait for at least one minute and then turn the ignition switch to the "LOCK" (OFF) position.
    3. Check the fuse.

    Q: Is the fuse in good condition?

    YES  : Go to  Step 10.

    NO:  Go to Step 5.

  5. STEP 5. Check the SRS-ECU power supply circuit for short circuit to ground at the junction block connector C-308.
    1. Disconnect the junction block connector C-308, and measure at the harness side connector.

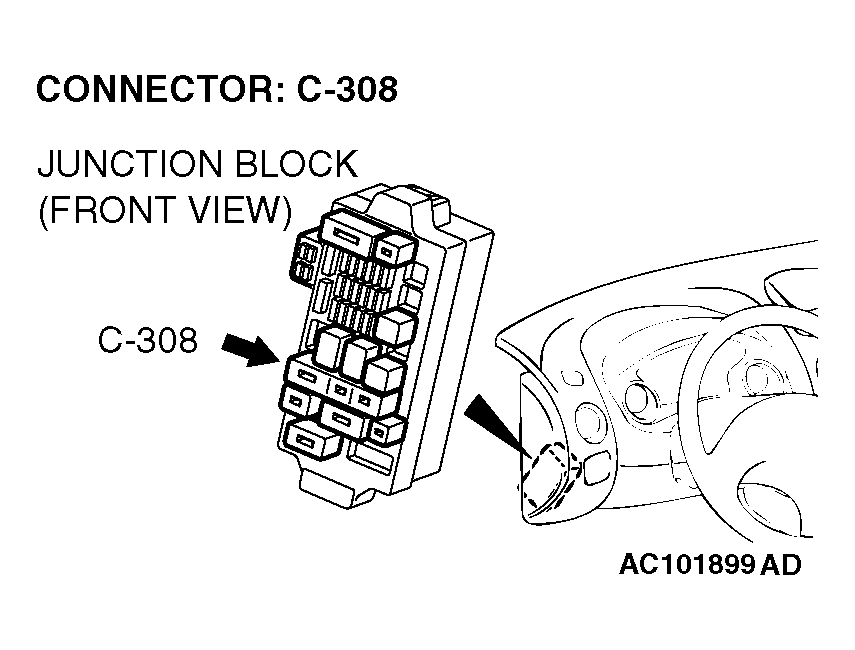

      Fig 7: Identifying Connector C-308
      G04537754Courtesy of DAIMLERCHRYSLER CORPORATION
      CAUTION: Do not insert a test probe into the terminal from its front side directly as the connector contact pressure may be weakened.
    2. Check for continuity between the terminal 24 and body ground.

      It should be open circuit.

    Q: Does continuity exist?

    YES  : Go to  Step 8.

    NO:  Go to Step 6.

    Fig 8: Checking Continuity Between Terminal 24 And Body Ground
    G04537755Courtesy of DAIMLERCHRYSLER CORPORATION
  6. STEP 6. Check the fuse number 23-related circuit at the junction block connector C-308.
    1. Disconnect the junction block connector C-308, and measure at the harness side connector.

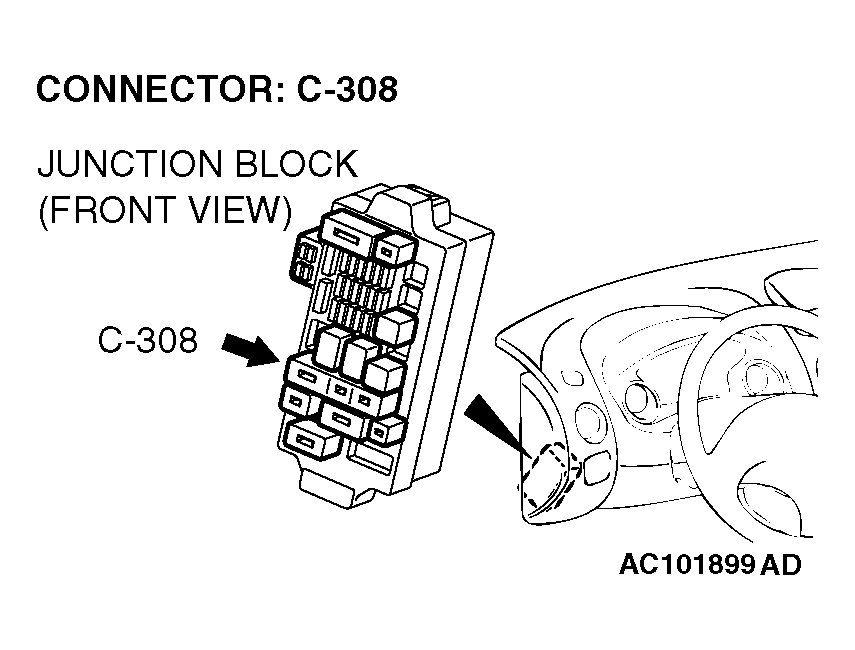

      Fig 9: Identifying Junction Block Connector C-308
      G04537756Courtesy of DAIMLERCHRYSLER CORPORATION
      CAUTION: Do not insert a test probe into the terminal from its front side directly as the connector contact pressure may be weakened.
    2. Check for continuity between terminals 25 and body ground.

      It should be open circuit.

    Q: Does continuity exist?

    YES  : Go to Step 7.

    NO:  Check the other circuit, which flows through fuse number 23.

    Fig 10: Checking Continuity Between Terminals 25 And Body Ground
    G04537757Courtesy of DAIMLERCHRYSLER CORPORATION
  7. STEP 7. Check the harness wire for short circuit to ground between the junction block connector C-308 (terminal No.25) and the combination meter connector C-101 (terminal No.12).

    Q: Is the harness wire between the junction block connector C-308 (terminal No.25) and the combination meter connector C-101 (terminal No.12) in good condition?

    YES  : Go to  Step 10.

    NO:  Repair the harness wire between the junction block connector C-308 and the combination meter connector C-101. Then go to  Step 10.

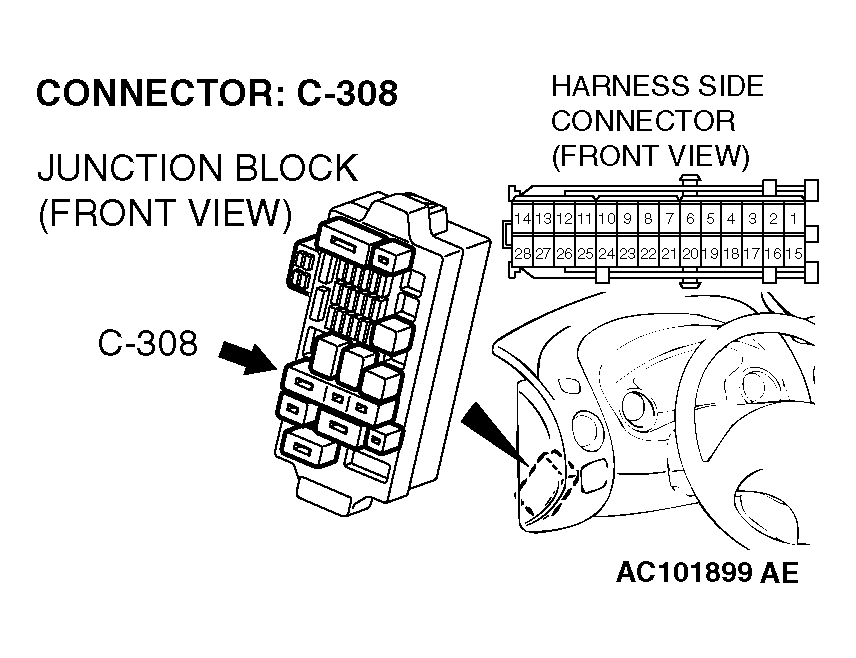

    Fig 11: Identifying Connector C-308
    G04537758Courtesy of DAIMLERCHRYSLER CORPORATION

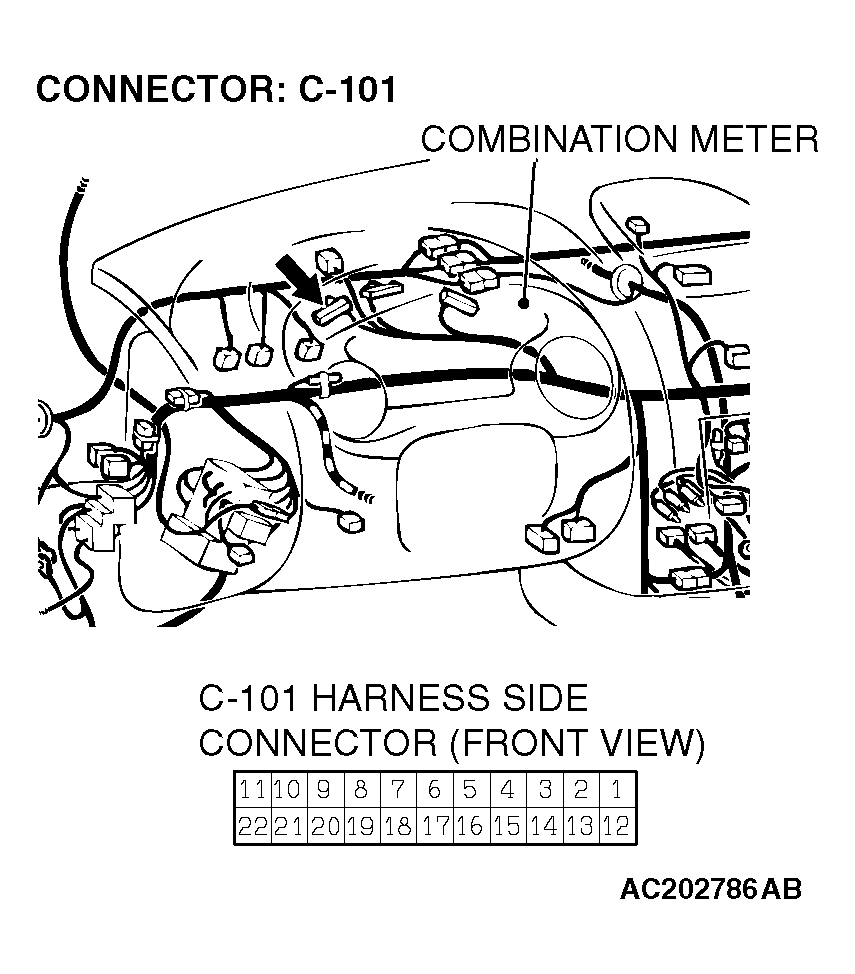

    Fig 12: Identifying Connector C-101
    G04537759Courtesy of DAIMLERCHRYSLER CORPORATION
  8. STEP 8. Check the power supply circuit for short circuit to ground at the SRS-ECU connector C-137.
    1. Disconnect the negative battery terminal.
    2. Disconnect the SRS-ECU connector C-137, and measure at the harness side connector.
      Fig 13: Identifying Connector C-137
      G04537760Courtesy of DAIMLERCHRYSLER CORPORATION
      CAUTION: Do not insert a test probe into the terminal from its front side directly as the connector contact pressure may be weakened.
    3. Check for continuity between the terminal 12 and body ground.

      It should be open circuit.

    Q: Is the circuit normal?

    YES  : Go to Step 9.

    NO:  Erase the DTC memory, and recheck if any DTC sets, If DTC 41 sets, replace the SRS-ECU (Refer to SRS CONTROL UNIT (SRS-ECU)  ). Then go to  Step 10.

    Fig 14: Checking Continuity Between Terminal 12 And Body Ground
    G04537761Courtesy of DAIMLERCHRYSLER CORPORATION
  9. STEP 9. Check the harness wire for short circuit to ground between the SRS-ECU connector C-137 (terminal No.12) and the junction block connector C-308 (terminal No.24).

    Q: Is the harness wire between the SRS-ECU connector C-137 (terminal No.12) and the junction block connector C-308 (terminal No.24) in good condition?

    YES  : Go to Step 10.

    NO:  Repair the harness wire between the SRS-ECU connector C-137 and the junction block connector C-308. Then go to Step 10.

    Fig 15: Identifying SRS-ECU Connector C-137
    G04537762Courtesy of DAIMLERCHRYSLER CORPORATION

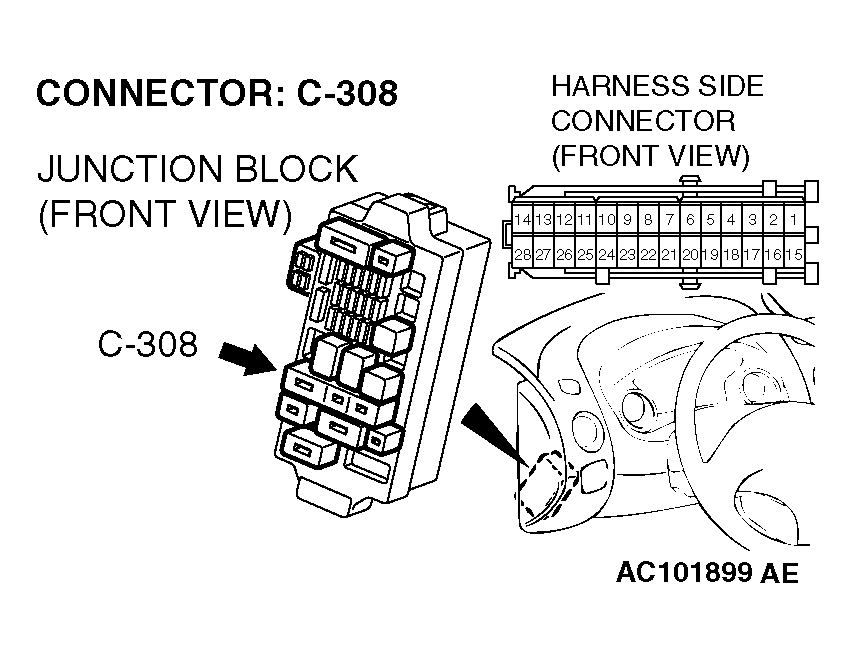

    Fig 16: Identifying Connector C-308
    G04537763Courtesy of DAIMLERCHRYSLER CORPORATION
  10. STEP 10. Check for DTC.

    Q: Is DTC 41 set?

    YES  : Return to  Step 1.

    NO:  The procedure is complete (If no malfunctions are not found in all steps, an intermittent malfunction is suspected. Refer to TO COPE WITH INTERMITTENT MALFUNCTION ).
