SRS-Ecu Memory Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tool:

MB991502: Scan tool (MUT-II)

CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.

Connect scan tool MB991502 to the data link connector (16-pin).
Read (and write down) all displayed diagnostic trouble codes (Refer to TROUBLESHOOTING STRATEGY ).
NOTE: If the battery power supply has been disconnected or disrupted by the collision, scan tool MB991502 cannot communicate with the SRS-ECU. Check the battery then check and, if necessary, repair the front wiring harness and the body wiring harness before proceeding.

Read the data list (fault duration and how many times memories are erased) using scan tool MB991502.

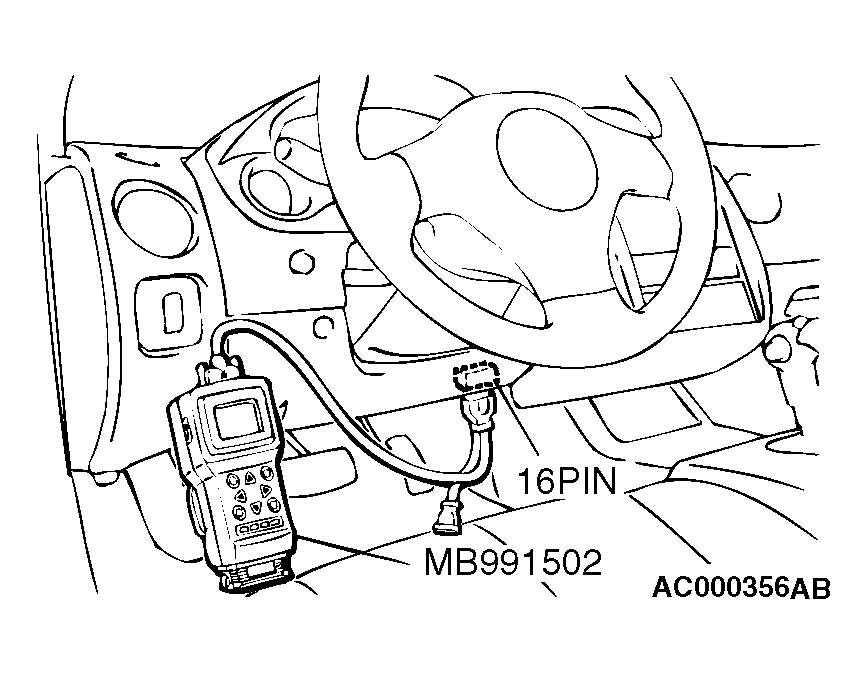

Fig 1: Connecting Scan Tool To Data Link Connector

Courtesy of DAIMLERCHRYSLER CORPORATION

Data list

DATA LIST REFERENCE

NO.	SERVICE DATA ITEM	APPLICABILITY
92	Number indicating how often the memory is cleared	Maximum time to be stored: 250
93	How long a problem has lasted (How long it takes from the occurrence of the problem till the first air bag squib igniting signal)	Maximum time to be stored: 9,999 minutes (approximately seven days)
94	How long a problem has lasted (How long it takes from the first air bag squib igniting signal till now).

Erase the diagnostic trouble codes and, after waiting five seconds or more, read (and write down) all displayed diagnostic trouble codes (Refer to TROUBLESHOOTING STRATEGY ).
