Side Impact Sensor

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check that there is no bending or corrosion in the center pillar.
  2. Check that there is no denting, breakage or bending of the side impact sensor.
  3. Check that there is no clamping of the harness, connector damage or bent terminals.
    NOTE: The illustration shows the side impact sensor (LH). See Fig 1. The position of the side impact sensor (RH) is symmetrical to this.

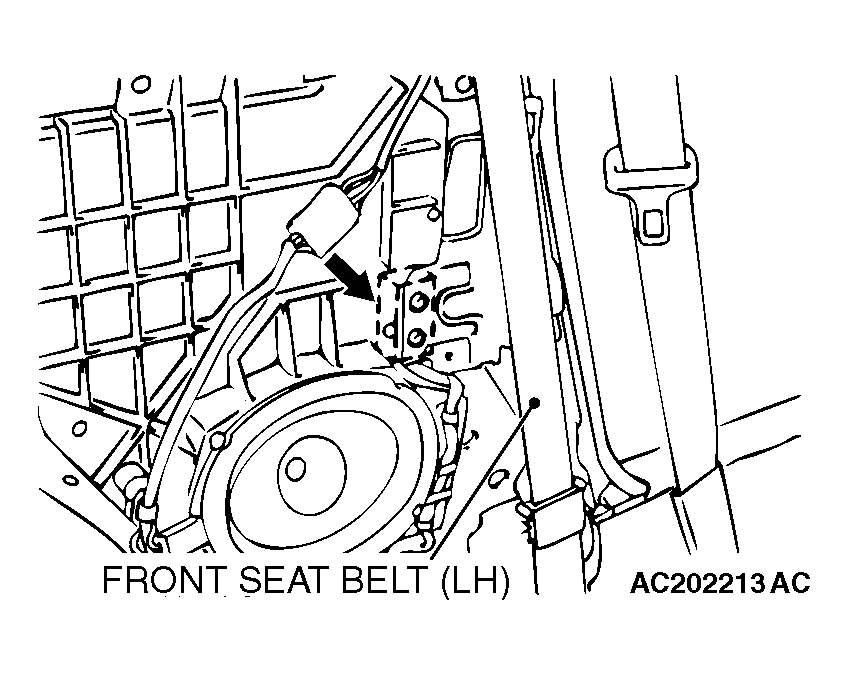

    Fig 1: Identifying Front Seat Belt (LH)
    G04537945Courtesy of DAIMLERCHRYSLER CORPORATION
