Air Bag Modules

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the pad cover for dents, cracks or deformation.
  2. Check the connector for damage, terminals deformities, and the harness for binding.
  3. Check the air bag inflator case for dents, cracks or deformities.
  4. Install the air bag module (driver's side) to the steering wheel to check fit or alignment with the steering wheel.
  5. Install the air bag module (passenger's side) to the instrument panel and crossmember to check fit or alignment.

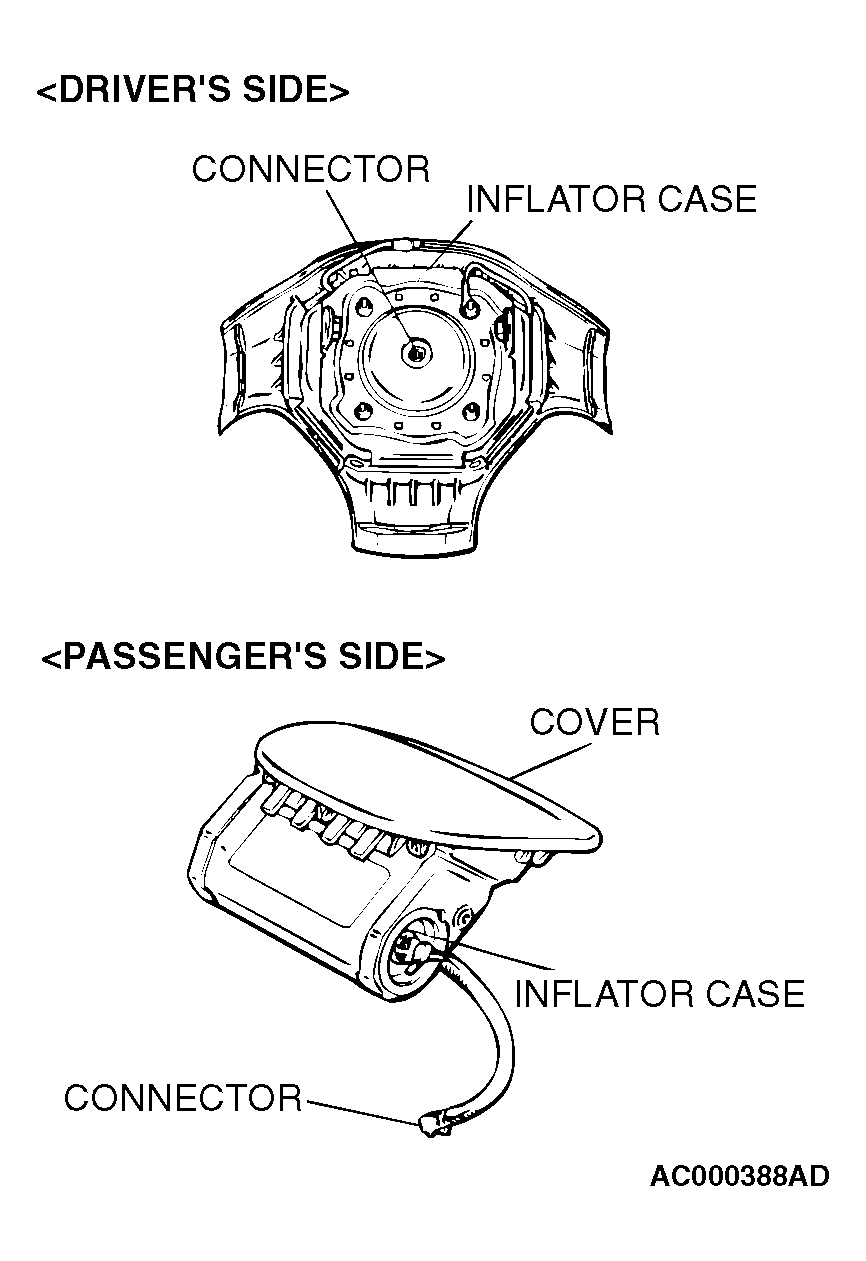

    Fig 1: Identifying Air Bag Modules
    G04537942Courtesy of DAIMLERCHRYSLER CORPORATION
