Warning Light Circuit Connector Lock Switch

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

The connector lock switch is a mechanism that shorts the power supply terminal to the ground terminal automatically in the warning light circuit when the connector is disconnected. Its structure is similar to the squib circuit connector shorting mechanism.

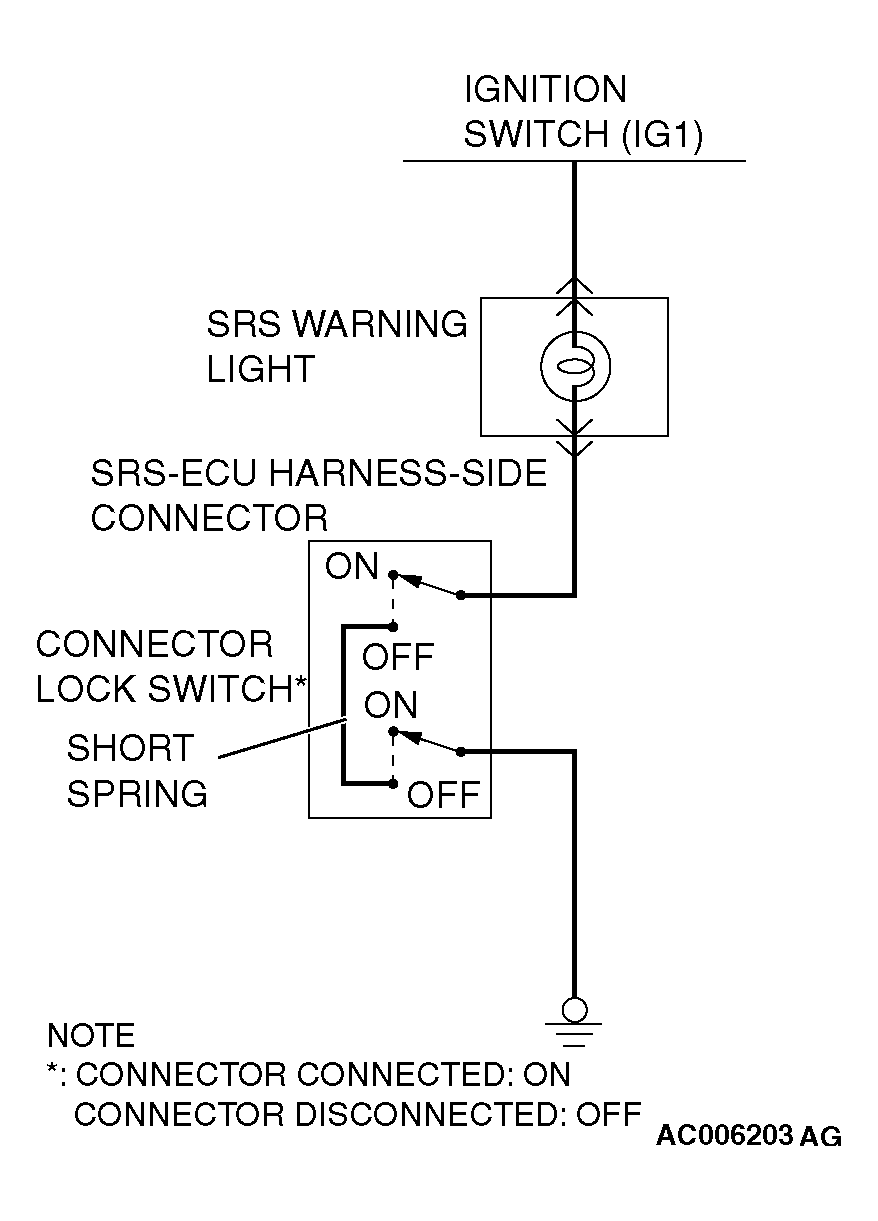

Fig 1: Communication Diagram - Warning Light Circuit Connector Lock Switch
G04537694Courtesy of DAIMLERCHRYSLER CORPORATION
