Circuit Diagram

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Do not repair, splice, or modify the SRS wiring (except for specific repairs to the instrument panel wiring harness and the floor wiring harness shown on ON-VEHICLE SERVICE ): replace the wiring if necessary, after reading and following all precautions and procedures in this article.
Do not use an analog ohmmeter to check the SRS wiring or components; use only the special tools (refer to SPECIAL TOOLS ) and a digital multi-meter (refer to TEST EQUIPMENT ).

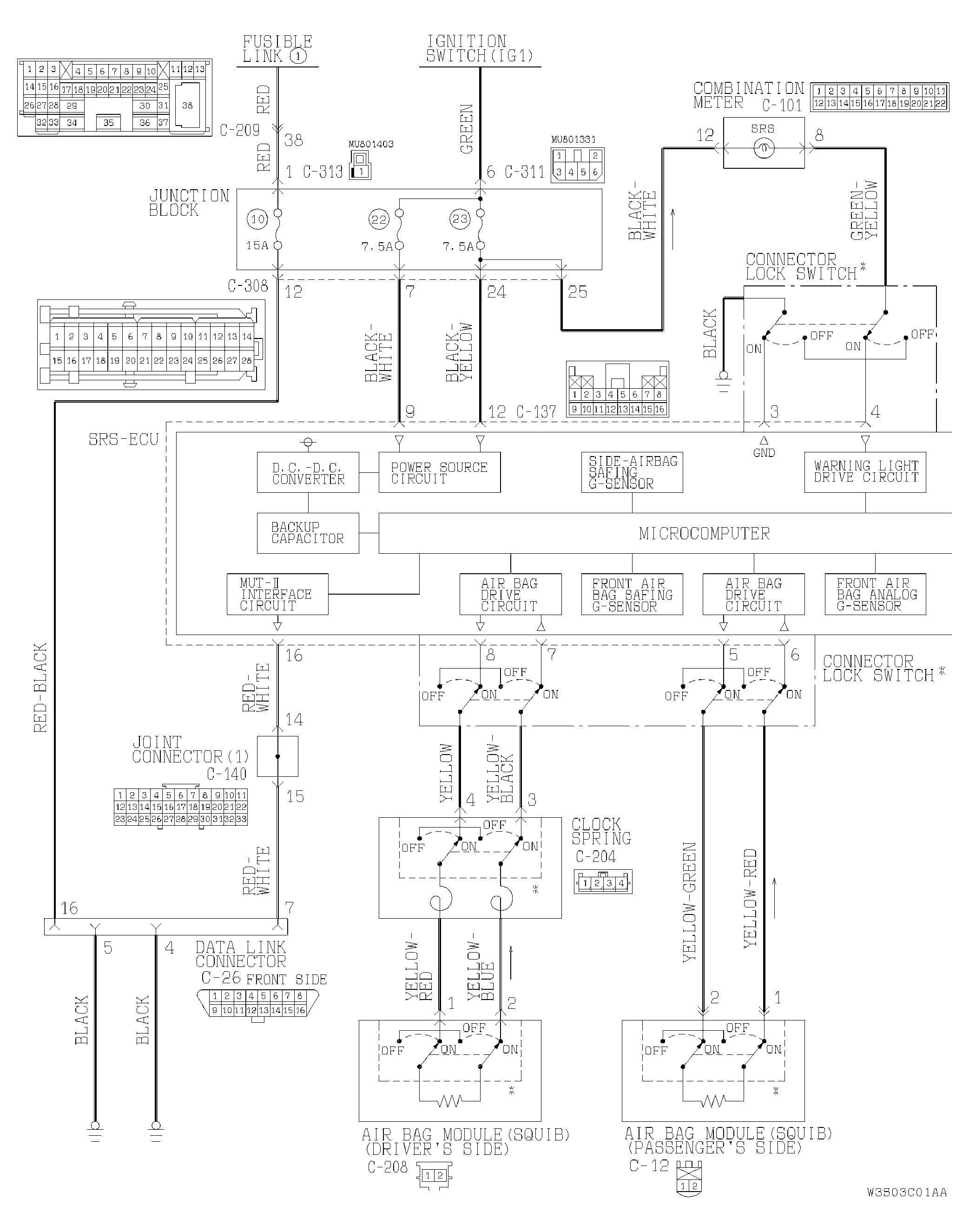

Fig 1: Restraint System - Circuit Diagram (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

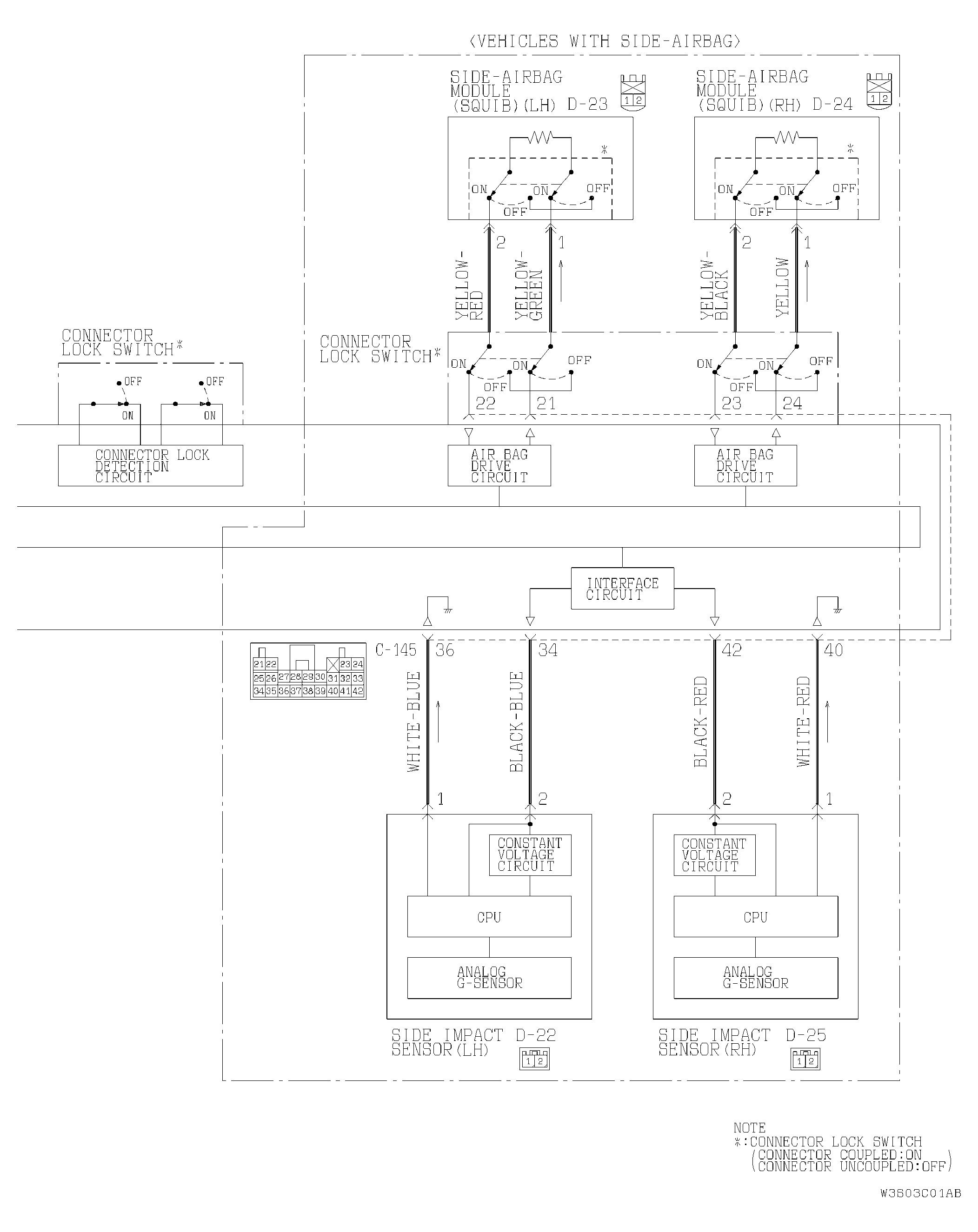

Fig 2: Restraint System - Circuit Diagram (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
