<< B >> Air Bag Module Removal (Driver's Side)

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air bag module mounting screws (TORX® screws) at the sides of the steering wheel.
    NOTE: Do not remove the screws from the holders.

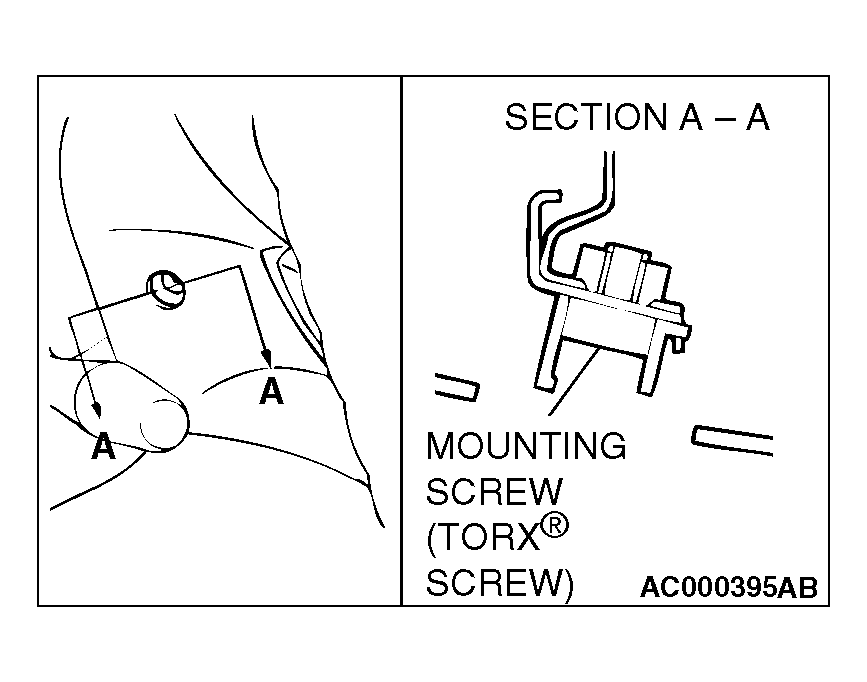

    Fig 1: Identifying Air Bag Module Mounting Screws
    G04537953Courtesy of DAIMLERCHRYSLER CORPORATION
    WARNING: The removed air bag module should be stored in a clean, dry place with the pad cover face up.
    CAUTION: When disconnecting the air bag module-to-clock spring connector, take care not to apply excessive force to it.
  2. When disconnecting the connector of the clock spring from the air bag module, press the air bag's lock toward the outer side to spread to open. Use a flat-tipped screwdriver, as shown in the figure to pry gently to remove the connector. See Fig 2.

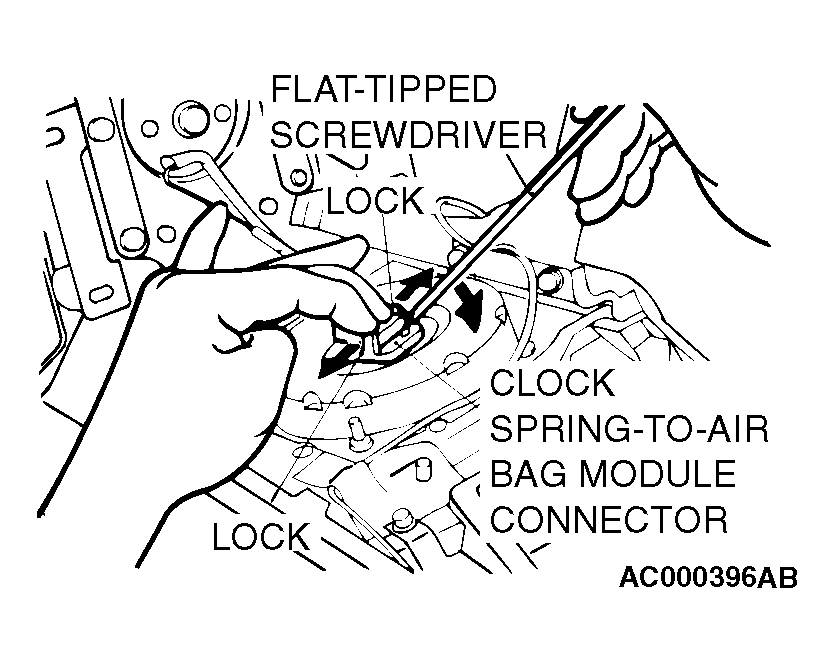

    Fig 2: Pressing Air Bag's Lock
    G04537954Courtesy of DAIMLERCHRYSLER CORPORATION
