>> E << Post-Installation Inspection

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reconnect the negative (-) battery cable.
  2. Turn the ignition switch to the "ON" position.
  3. Does the "SRS" warning light illuminate for approximately seven seconds, and go out?
  4. If yes, the SRS system is functioning properly. If no, refer to SRS WARNING LIGHT CHECK  .

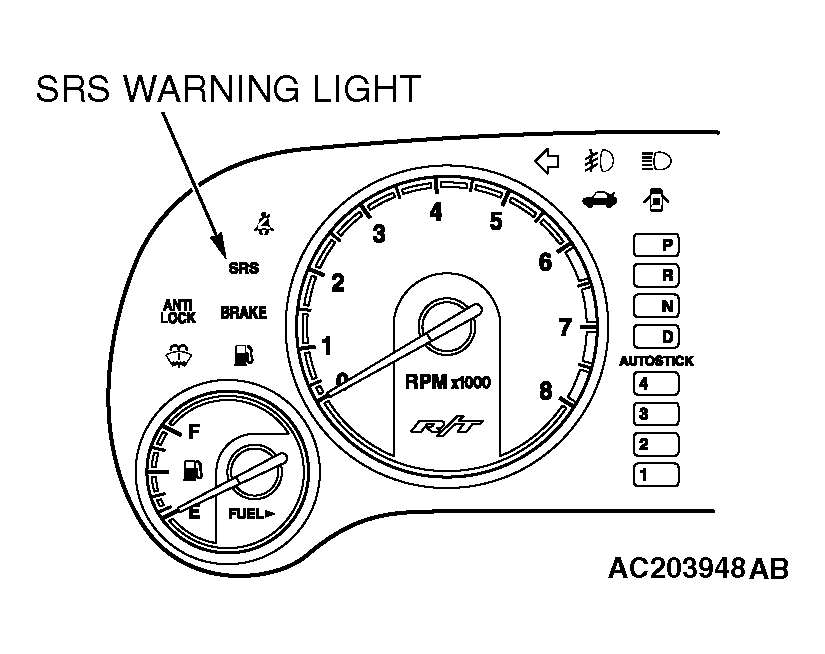

    Fig 1: Identifying SRS Warning Light
    G04537960Courtesy of DAIMLERCHRYSLER CORPORATION
