>> D << Air Bag Module Installation (Driver's Side)

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

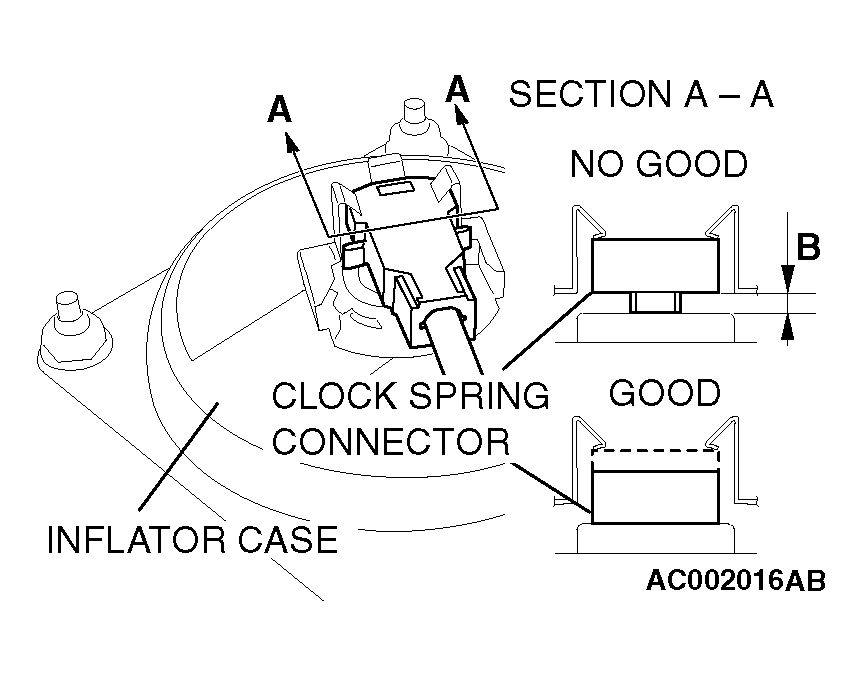

CAUTION: If there is gap at place B shown in the illustration, that means the connector is not firmly inserted, i.e. not correctly connected. See Fig 1. In such a case, insert connector to the place, where there remains no gap at place B shown in the illustration.

Connect the clock spring connector securely.

Fig 1: Installing Air Bag Module Installation (Driver's Side)
Courtesy of DAIMLERCHRYSLER CORPORATION
Tighten the air bag module mounting screws to 9.0 +/- 2.0 N.m (78 +/- 17 in-lb)

Fig 2: Tightening Air Bag Module Mounting Screws To Specified Torque
Courtesy of DAIMLERCHRYSLER CORPORATION
