>> A << Pre-Installation Inspection

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Dispose of air bag modules only according to the specified procedure (Refer to SRS WARNING LIGHT CHECK ).

When installing the new air bag modules and clock spring, refer to "INSPECTION " ( ).
Connect the negative (-) battery cable.
CAUTION: To prevent damage to scan tool MB991502, always turn the ignition, switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.
Connect scan tool MB991502 to the data link connector.
Turn the ignition switch to the "ON" position.
Conduct diagnostic test using scan tool MB991502 to ensure entire SRS operates properly.

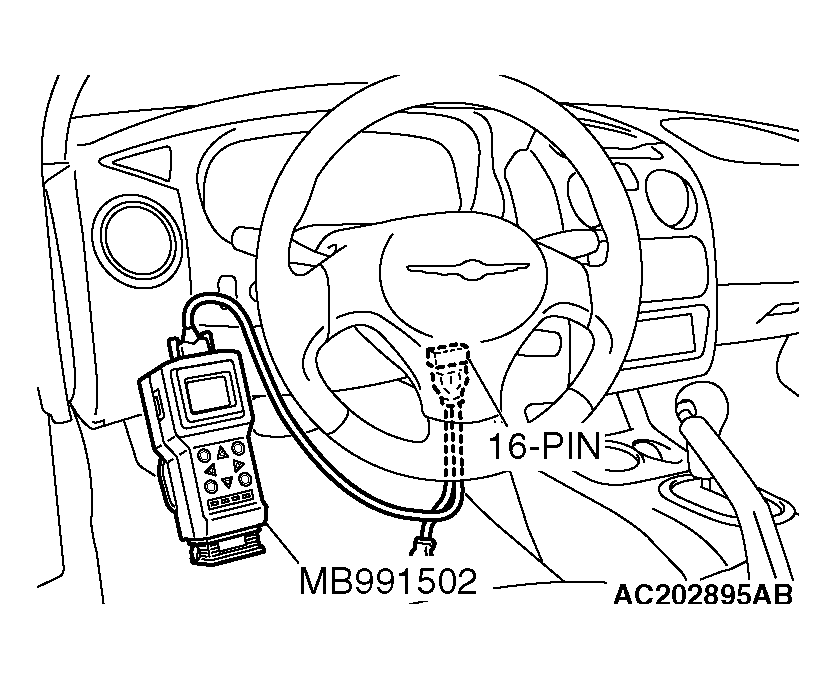

Fig 1: Connecting Scan Tool To Data Link Connector
Courtesy of DAIMLERCHRYSLER CORPORATION

WARNING: Wait at least 60 seconds after disconnecting the battery cable before doing any further work (Refer to SERVICE PRECAUTIONS ).

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING.
Turn the ignition switch to the "LOCK" (OFF) position. Disconnect the negative (-) battery cable and tape the terminal to prevent accidental connection and air bags deployment.
