Axle Stands And A Single-Post Lift Or Double-Post Lift

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If rubber attachments with grooves that are too thick are used at the front support positions, the front fender may become bent, so be sure to use rubber attachments with groove thicknesses of 18 mm (0.71 inch) or less.
  • If attachments which are not high enough are used, they may damage areas such as the side step. Be sure to use attachments which are high enough, or remove the side step if not using attachments.

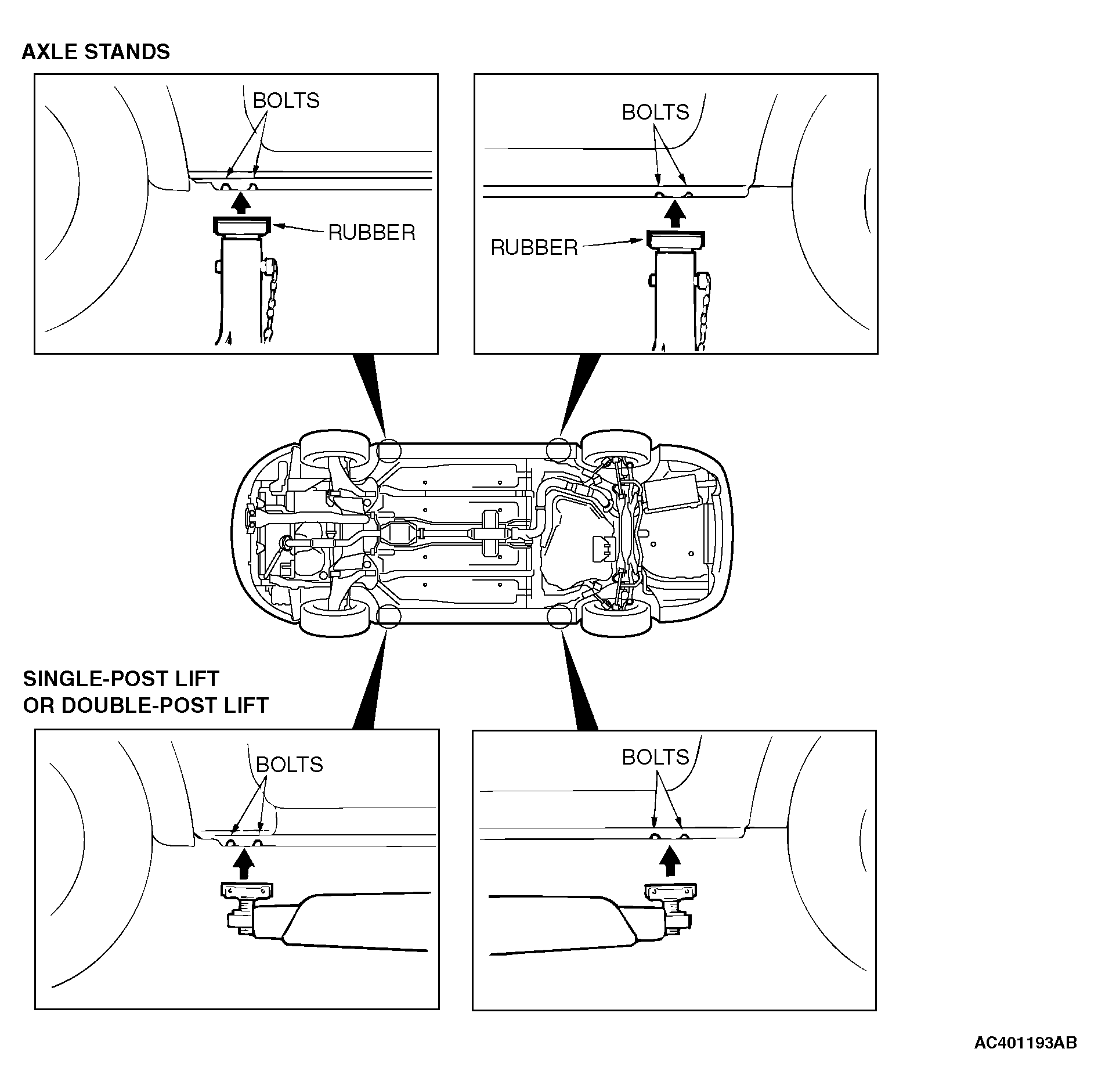

    Fig 1: Identifying Axle Stands And Single-Post Lift Or Double-Post Lift Location
    G04536860Courtesy of DAIMLERCHRYSLER CORPORATION
