If Inspecting With The Connector Connected < Waterproof Connectors >

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Be sure to use special tool. Never insert a test probe from the harness side, as this will reduce the waterproof performance and result in corrosion.

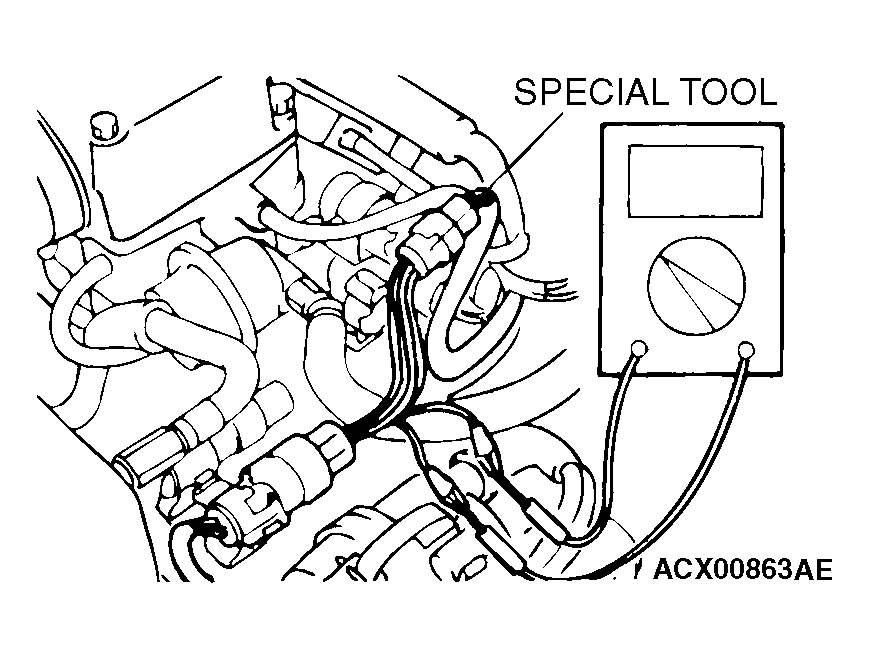

Fig 1: Inspecting Connector Test Probe From Harness Side
G04536825Courtesy of DAIMLERCHRYSLER CORPORATION
