GENERAL SPECIFICATIONS (Model with 3.0L Engine)
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
GENERAL SPECIFICATIONS (MODEL WITH 3.0L ENGINE)
| ITEM | HNHEL 4C | HRHEL 4C | HNPEL 4C | HRPEL 4C | ||
|---|---|---|---|---|---|---|

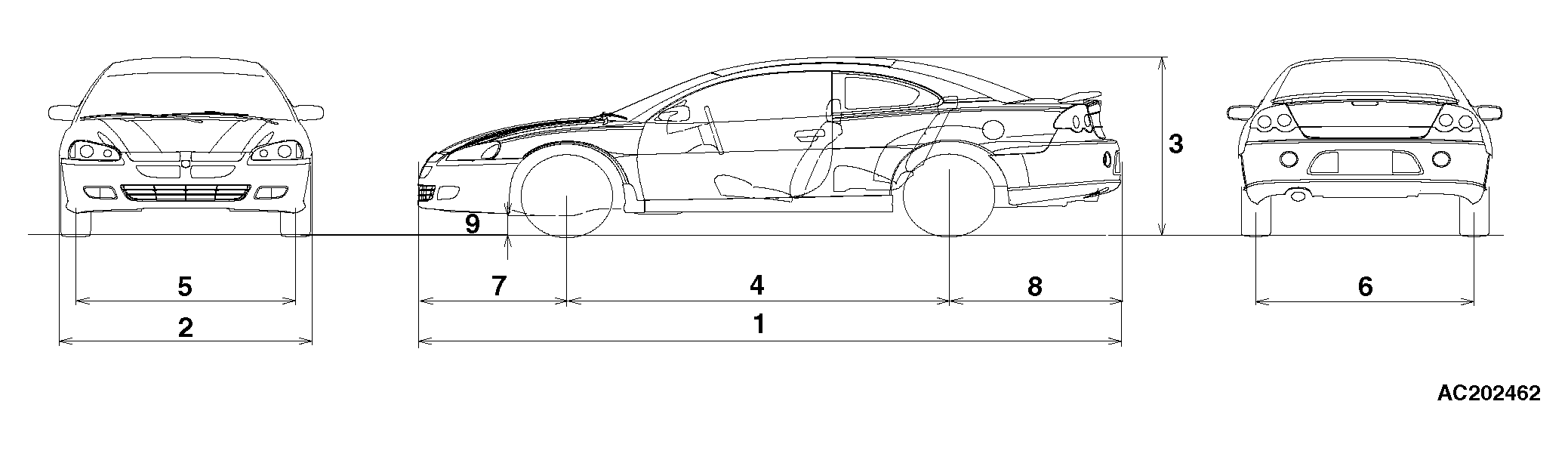

| Vehicle dimension mm (in) | Overall length | 1 | 4,875 (191.9) | 4,875 (191.9) | 4,875 (191.9) | 4,875 (191.9) |
| Overall width | 2 | 1,775 (69.9) | 1,775 (69.9) | 1,775 (69.9) | 1,775 (69.9) | |
| Overall height (unladen) | 3 | 1,370 (53.9) | 1,370 (53.9) | 1,370 (53.9) | 1,370 (53.9) | |
| Wheelbase | 4 | 2,635 (103.7) | 2,635 (103.7) | 2,635 (103.7) | 2,635 (103.7) | |
| Tread-front | 5 | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | |
| Tread-rear | 6 | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | |
| Overhang-front | 7 | 1,040 (40.9) | 1,040 (40.9) | 1,040 (40.9) | 1,040 (40.9) | |
| Overhang-rear | 8 | 1,200 (47.2) | 1,200 (47.2) | 1,200 (47.2) | 1,200 (47.2) | |
| Minimum running ground clearance | 9 | 150 (5.9) | 150 (5.9) | 150 (5.9) | 150 (5.9) | |
| Vehicle weight kg (lb) | Curb weight | 1,447 (3,190) | 1,476 (3,254) | 1,454 (3,206) | 1,486 (3,276) | |
| Gross vehicle weight rating | 1,917 (4,226) | 1,917 (4,226) | 1,917 (4,226) | 1,917 (4,226) | ||
| Gross axle weight rating-front | 1,053 (2,322) | 1,053 (2,322) | 1,053 (2,322) | 1,053 (2,322) | ||
| Gross axle weight rating-rear | 864 (1,905) | 864 (1,905) | 864 (1,905) | 864 (1,905) | ||
| Seating capacity | 5 | |||||
| Engine | Model No. | 6G72 | ||||
| Displacement | 3.0L | |||||
| Transaxle | Model No. | F5M51 | F4A51 | F5M51 | F4A51 | |
| Type | 5-speed manual | 4-speed automatic | 5-speed manual | 4-speed automatic | ||
| Fuel system | Fuel supply system | Electronic controlled multiport fuel injection | ||||
< STRATUS COUPE >
GENERAL SPECIFICATIONS (MODEL WITH 3.0L ENGINE)
| ITEM | HNHEL 4D | HRHEL 4D | HNPEL 4D | HRPEL 4D | ||
|---|---|---|---|---|---|---|
| Vehicle dimension mm (in) | Overall length | 1 | 4,850 (190.9) | 4,850 (190.9) | 4,850 (190.9) | 4,850 (190.9) |
| Overall width | 2 | 1,785 (70.3) | 1,785 (70.3) | 1,785 (70.3) | 1,785 (70.3) | |
| Overall height (unladen) | 3 | 1,370 (53.9) | 1,370 (53.9) | 1,370 (53.9) | 1,370 (53.9) | |
| Wheelbase | 4 | 2,635 (103.7) | 2,635 (103.7) | 2,635 (103.7) | 2,635 (103.7) | |
| Tread-front | 5 | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | |
| Tread-rear | 6 | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | |
| Overhang-front | 7 | 1,020 (40.2) | 1,020 (40.2) | 1,020 (40.2) | 1,020 (40.2) | |
| Overhang-rear | 8 | 1,195 (47.0) | 1,195 (47.0) | 1,195 (47.0) | 1,195 (47.0) | |
| Minimum running ground clearance | 9 | 150 (5.9) | 150 (5.9) | 150 (5.9) | 150 (5.9) | |
| Vehicle weight kg (lb) | Curb weight | 1,439 (3,172) | 1,471 (3,243) | 1,454 (3,206) | 1,484 (3,272) | |
| Gross vehicle weight rating | 1,917 (4,226) | 1,917 (4,226) | 1,917 (4,226) | 1,917 (4,226) | ||
| Gross axle weight rating-front | 1,053 (2,322) | 1,053 (2,322) | 1,053 (2,322) | 1,053 (2,322) | ||
| Gross axle weight rating-rear | 864 (1,905) | 864 (1,905) | 864 (1,905) | 864 (1,905) | ||
| Seating capacity | 5 | |||||
| Engine | Model No. | 6G72 | ||||
| Displacement | 3.0L | |||||
| Transaxle | Model No. | F5M51 | F4A51 | F5M51 | F4A51 | |
| Type | 5-speed manual | 4-speed automatic | 5-speed manual | 4-speed automatic | ||
| Fuel system | Fuel supply system | Electronic controlled multiport fuel injection | ||||
