Powertrain Control Module C2 - Black/Orange 38 Way

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

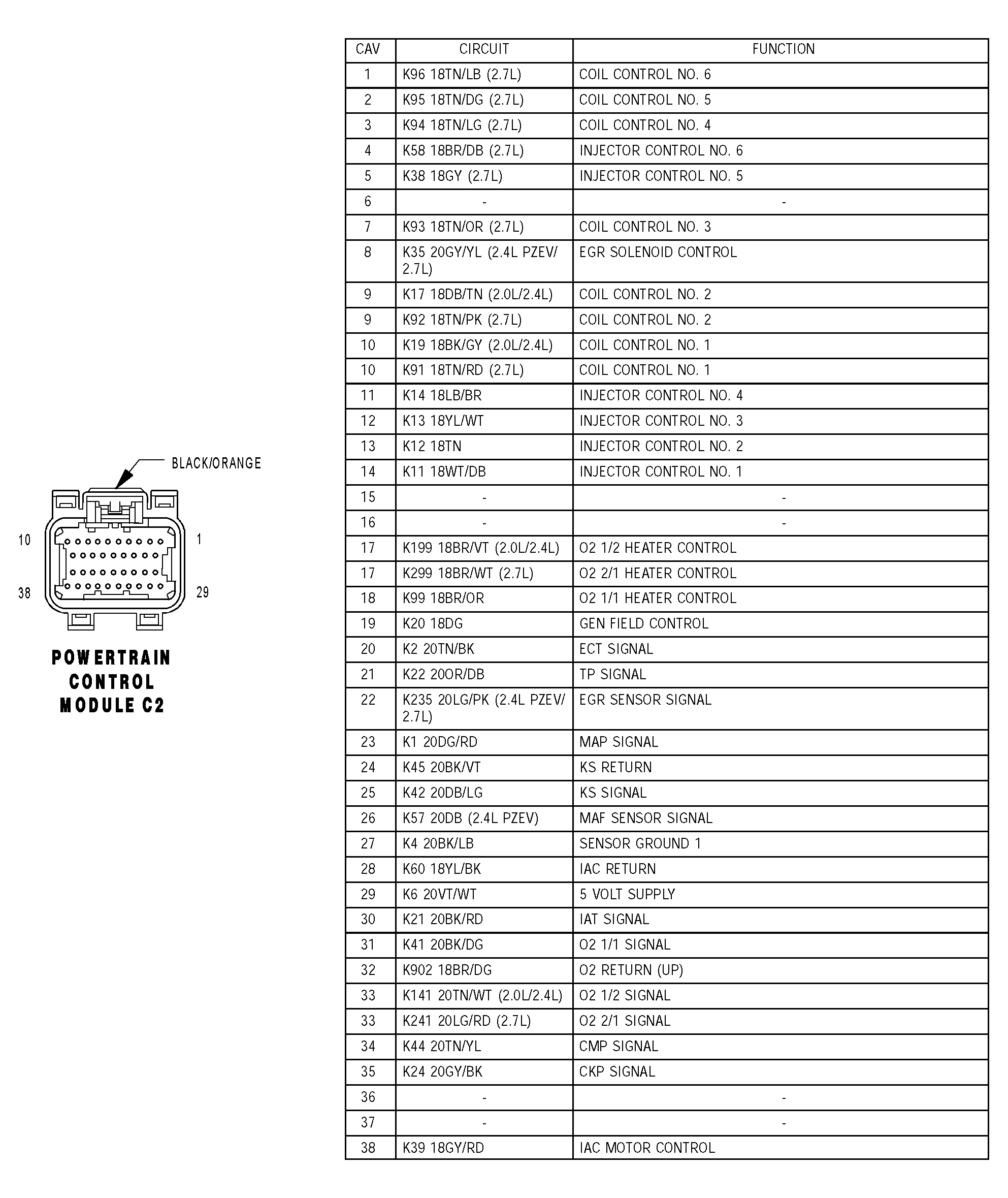

Fig 1: Identifying Powertrain Control Module C2 Connector
G04536589Courtesy of DAIMLERCHRYSLER CORP.
