Power Distribution Center

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

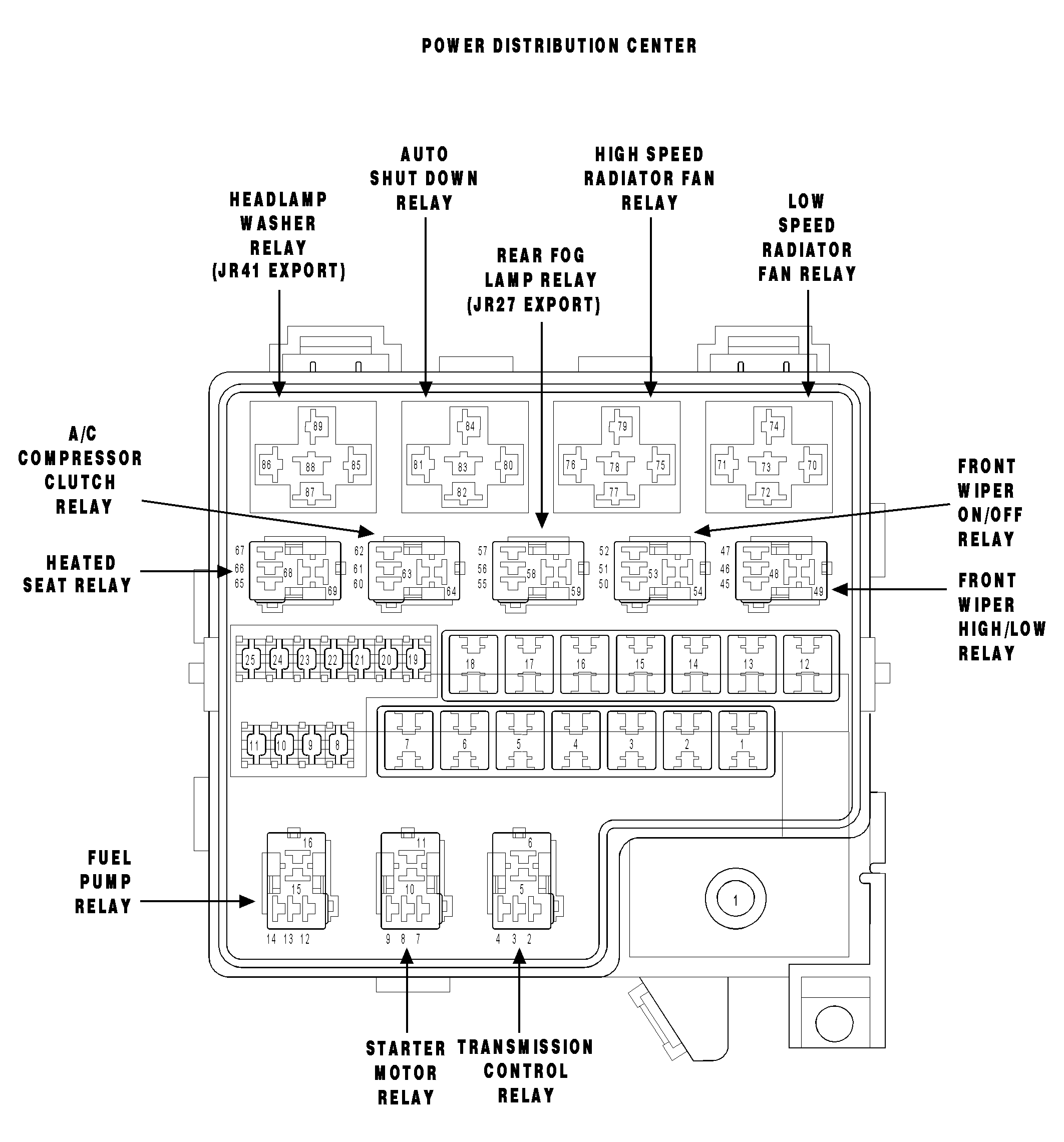

Fig 1: Identifying Power Distribution Center
G04536586Courtesy of DAIMLERCHRYSLER CORP.

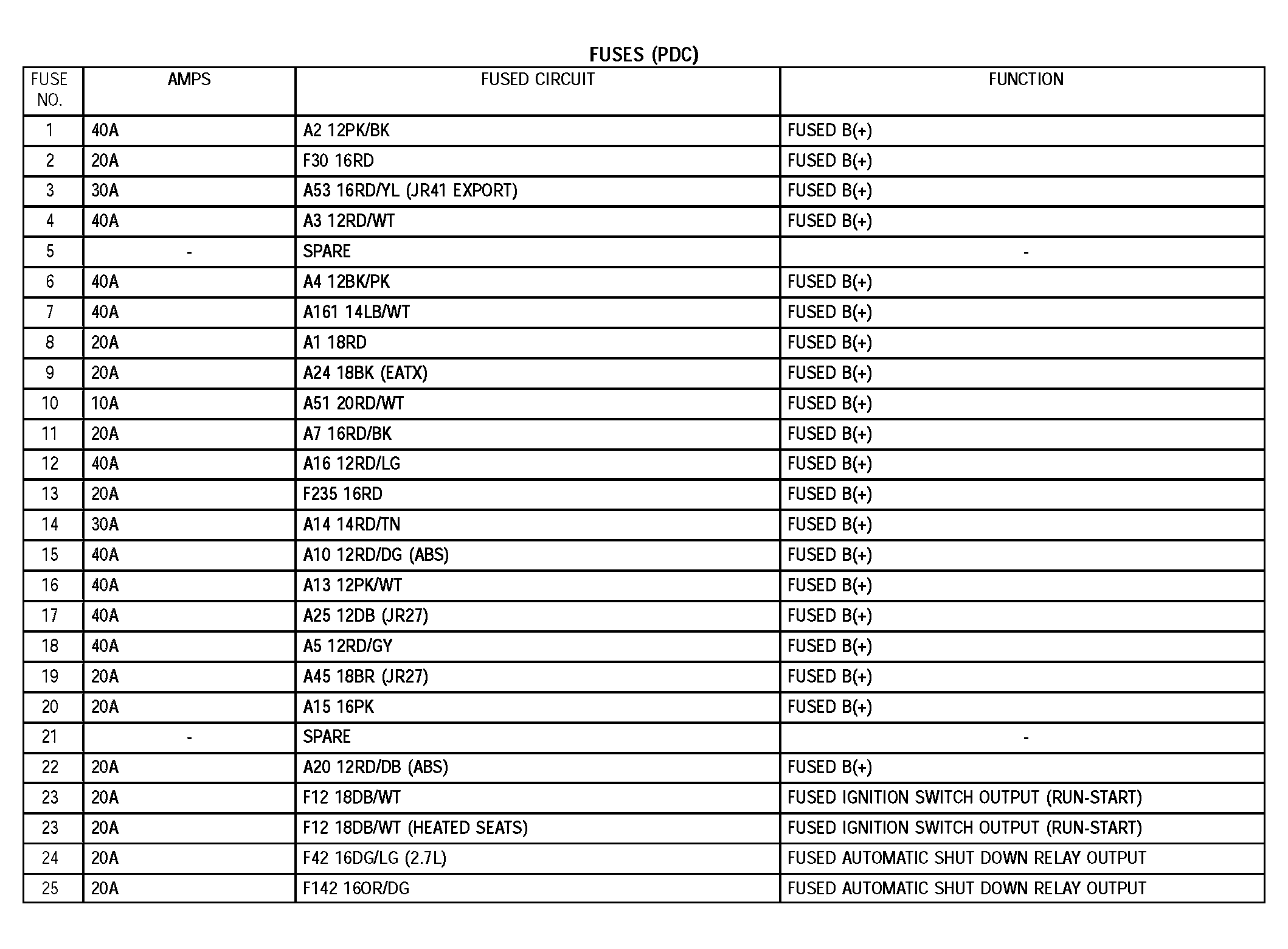

Fig 2: Power Distribution Center Reference Table
G04536587Courtesy of DAIMLERCHRYSLER CORP.
