Section 16 (Automatic Transmission Diagnostic Procedures - Except Coupe)
>>
Charts And Graphs
>>
Transmission Temperature Sensor
>>
Transmission Temperature Sensor Specifications
Transmission Temperature Sensor Specifications
WARNING:
This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

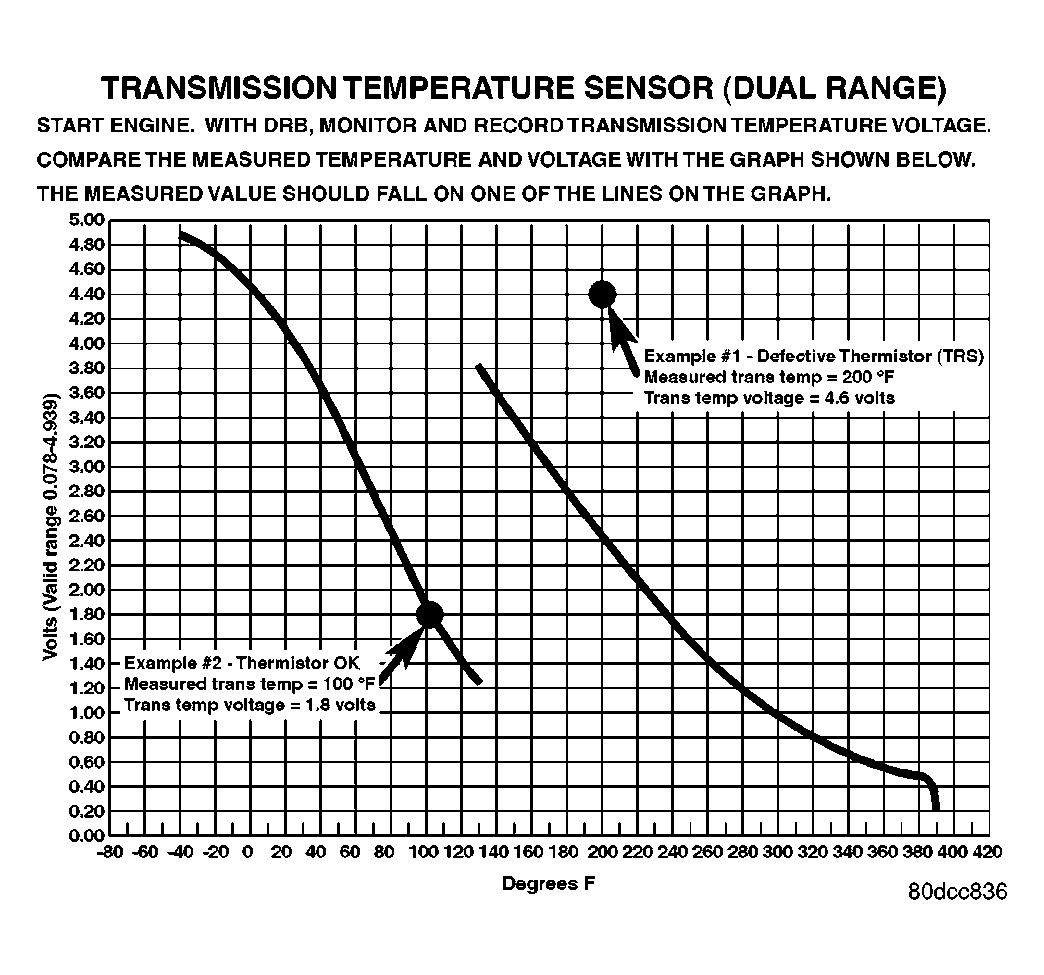

Fig 1: Transmission Temperature Sensor Graph
Courtesy of DAIMLERCHRYSLER CORP.
